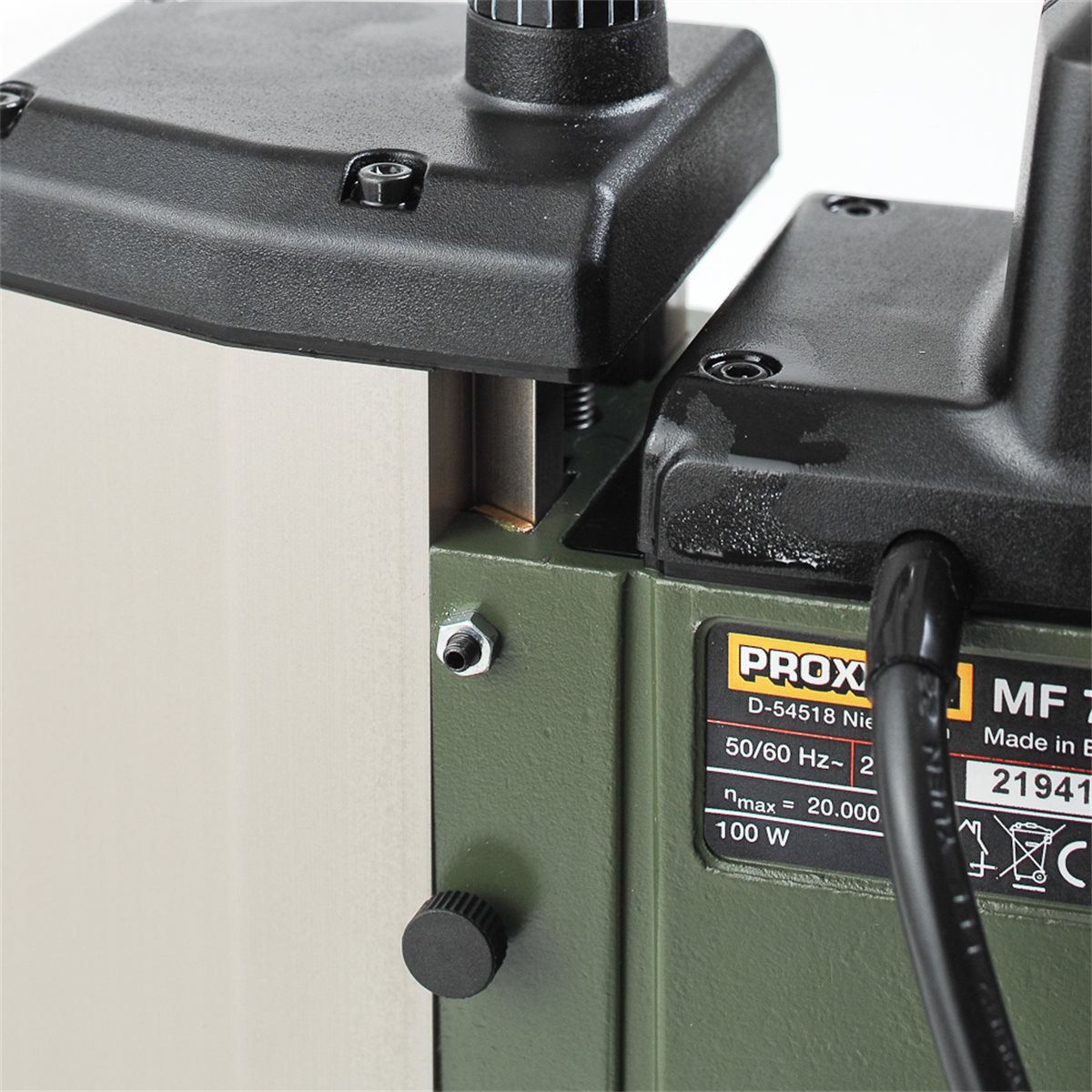

Proxxon 27110 MICRO miller MF 70
slide 2 of 6
Product number:
1843175
Manufacturer no.:
27110
EAN:
4006274271104
Weight in kg:
8.5
Product information "Proxxon 27110 MICRO miller MF 70 "
PROXXONcolor> 27110 MICRO miller MF 70
Features:
- For work with extremely small cutters
- Base of grey cast iron
- Including both vertical column and compound table of treated, quality aluminium
- All axes are play-free and have adjustable gibs
- Headstock of die-cast aluminium contains the 24 pole special (balanced) motor which is super stable even at high operating speeds
- This stability facilitates the use of the finest cutters. The triple slit, hardened steel MICROMOT collets cover 1.0 - 1.5 - 2.0 - 2.35 - 3.0 - 3.2mm
- The table is fitted with 3 T-slots of the 12 x 6 x 5mm MICROMOT norm
- An adjustable ruler scale eases the positioning of the workpiece
- All handwheels are zero adjustable with 1 revolution = 1.0mm, 1 division = 0.05mm
Technical data:
- 220 - 240V, 100W, 50/60Hz
- Spindle speeds 5,000 - 20,000rpm
- Table 200 x 70mm with X-Y travel of 134 and 46mm respectively,with vertical travel 80mm
- Footprint size 130 x 225mm and overall height 370mm
- Weight approx. 7kg
- The clamping blocks depicted are included too, but not the workpiece!
