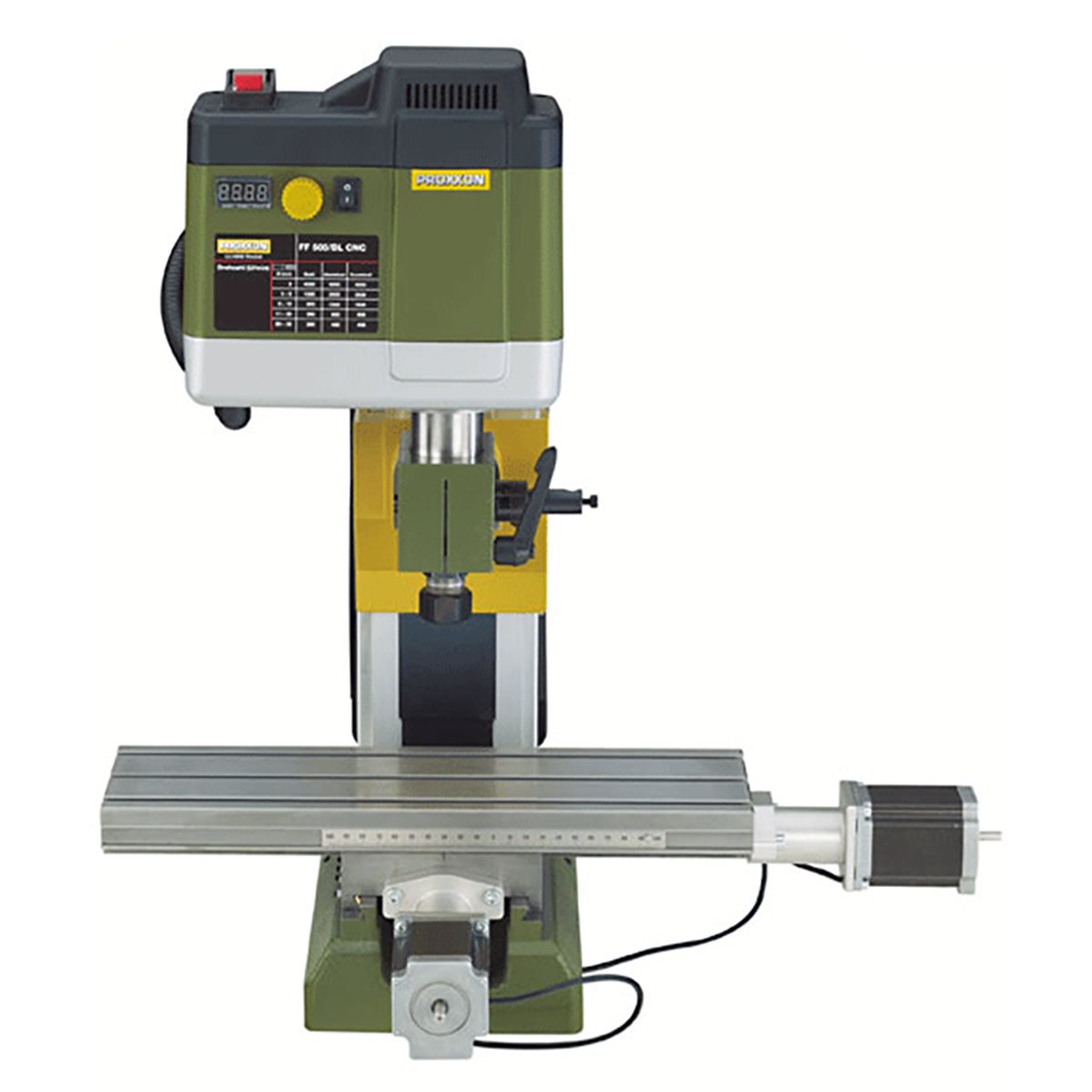

Proxxon 24364 MICRO Miller FF 500/BL-CNC-ready

€2,990.00*

Prices incl. VAT plus shipping costs

Delivery time 14 working days

Product number: 1892871

Manufacturer no.: 24364

EAN: 4006274243644

Weight in kg: 50

Product information "Proxxon 24364 MICRO Miller FF 500/BL-CNC-ready"

Proxxon 24364 MICRO Miller FF 500/CNC-ready

Features:

Without CNC controller and without software
Connection to the controller by three standard plugs (SUB-D 9POL)
Double roller bearing mounted recirculating ball spindles on all 3 axes (no backlash) and 3 powerful step motors
Large travel distances: X-axis approx. 310mm, Y-axis approx. 100mm, Z-axis approx. 220mm
The mechanical design is almost identical to the MICRO Miller FF 500/BL
Thanks to CNC control of 3 tool axes machining of steel and non-ferrous metals is possible in all dimensions. This also applies to larger work pieces!
The mechanical design is almost identical to the MICRO Miller FF 500 (see MICROMOT catalogue):
- Base of vibration-damping cast steel
- Stable column with dovetail sideway
- Milling head can be pivoted to the left and right by 90°
- Additional sleeve feed (30mm) using drilling lever with scale ring (1 graduation line = 1mm)
- Work piece fixing using steel collets
- The accessories supplied for the PROXXON MICRO Miller FF 500 can be used without restriction
- This also applies to the dividing attachment UT 400/CNC for the 4th axis!
Complete with CNC control unit, CNC programme software, all connecting cables, one each steel collets 6 - 8 - 10 and 12mm and detailed manual

Technical Data:

Drive: Condenser motor with 400W
Spindle drive X-axis: Recirculating ball spindle with 4.0mm inclination, flank diameter 12mm. Step motor with 2.2A und 1.27Nm dwell moment;travel distance: approx. 310mm
Spindle drive Y-axis:
Recirculating ball spindle with 4.0mm inclination, flank diameter 12mm. Step motor with 2.2A and 1.27Nm dwell moment; travel distance: approx. 100mm
Spindle drive Z-axix: Recirculating ball spindle with 4.0mm inclination, flank diameter 12mm. Step motor with 2.2A and 1.27Nm dwell moment; travel distance: approx. 220mm
revolutions: 200-4000 U/min
Drive connection: via RS 232 interface (or: use of a USB adapter), connecting cables to PC included in scope of delivery
Sizes: work table 370 x 350mm, table 400 x 125mm, total height approx. 780mm
Weight of machine: approx. 50kg
