Knipex 77 42 115 ESD DIAGONAL CUTTING NIPPERS ESD
€43.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1846035
Manufacturer no.:
7742115ESD
EAN:
4003773031901
Weight in kg:
0.08
Product information "Knipex 77 42 115 ESD DIAGONAL CUTTING NIPPERS ESD "

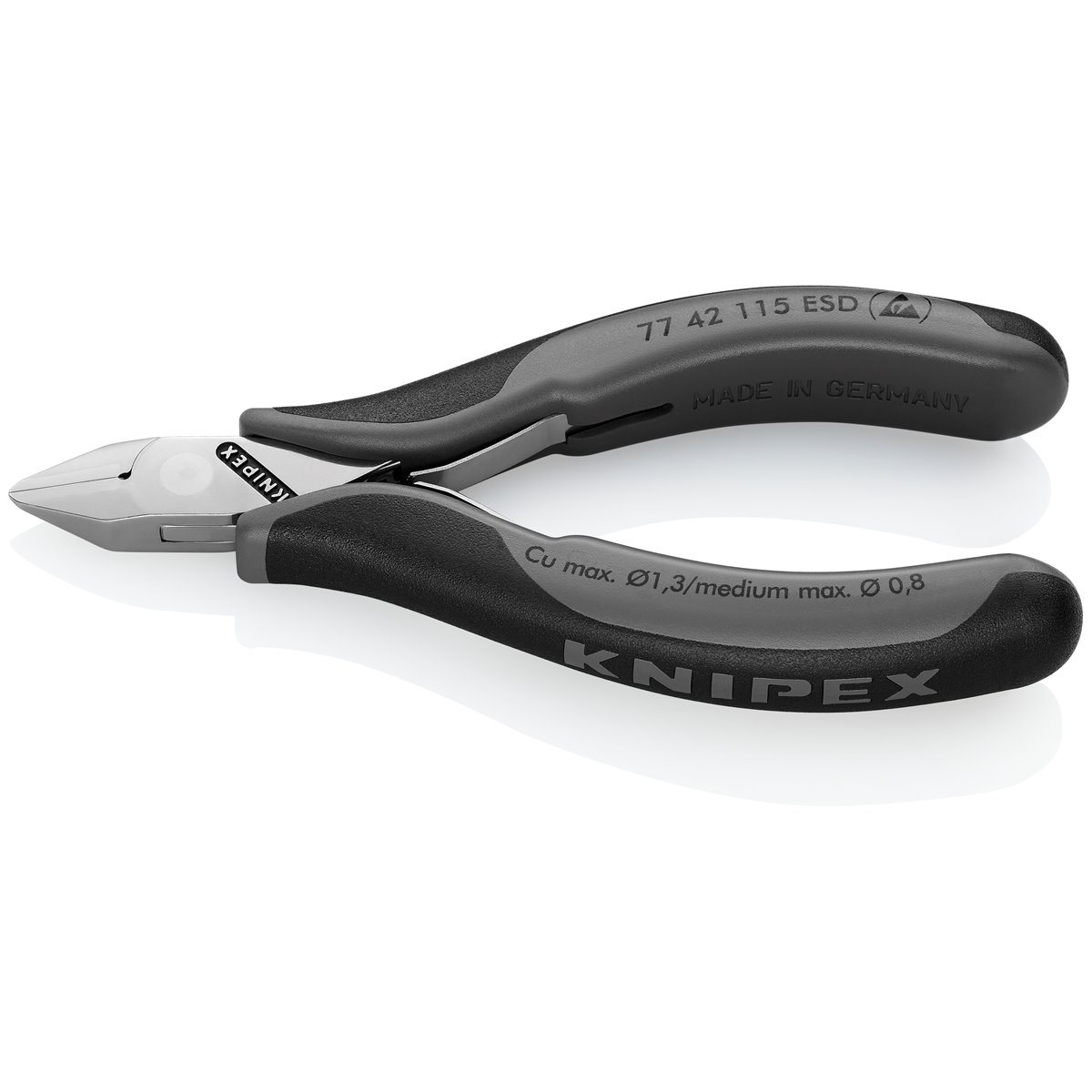

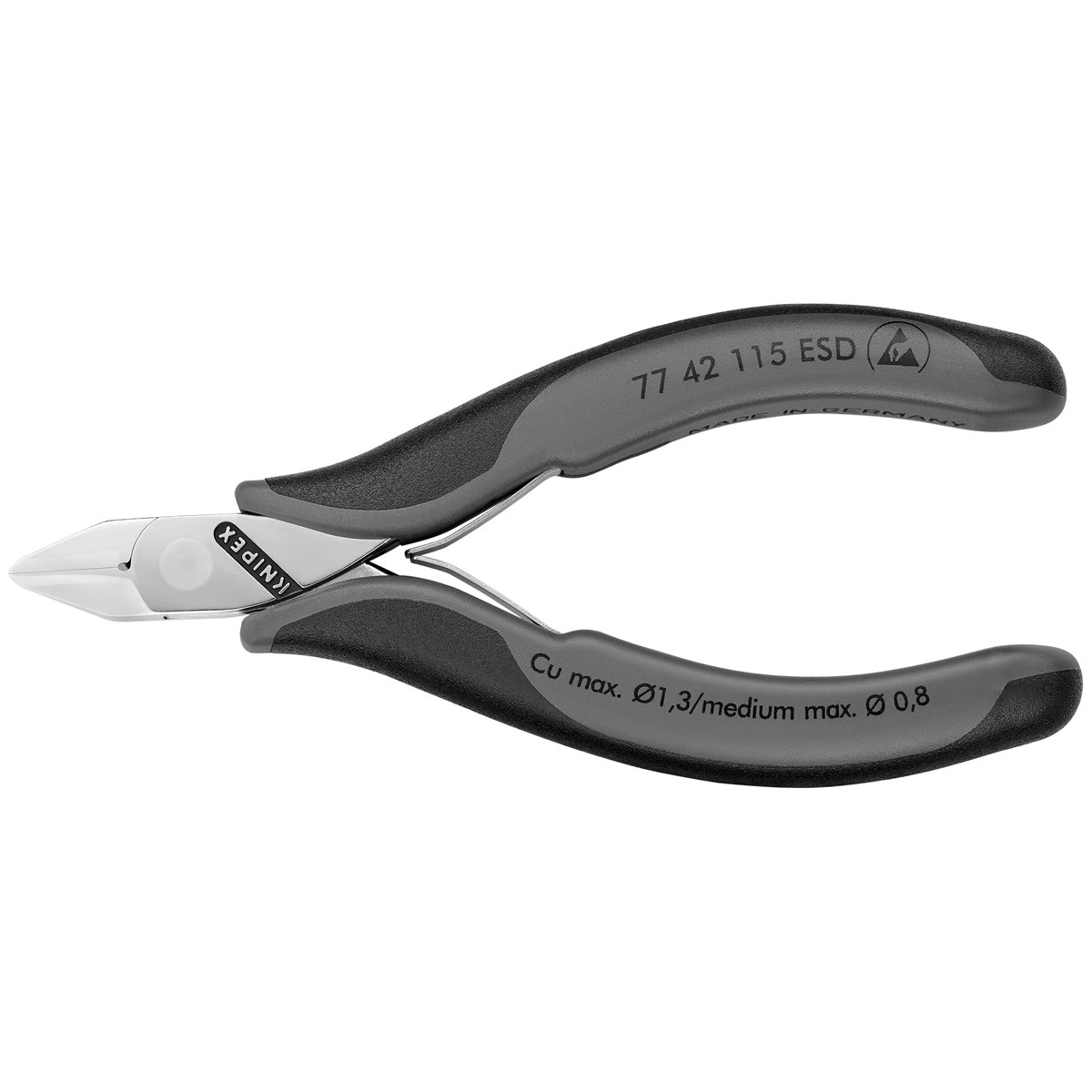

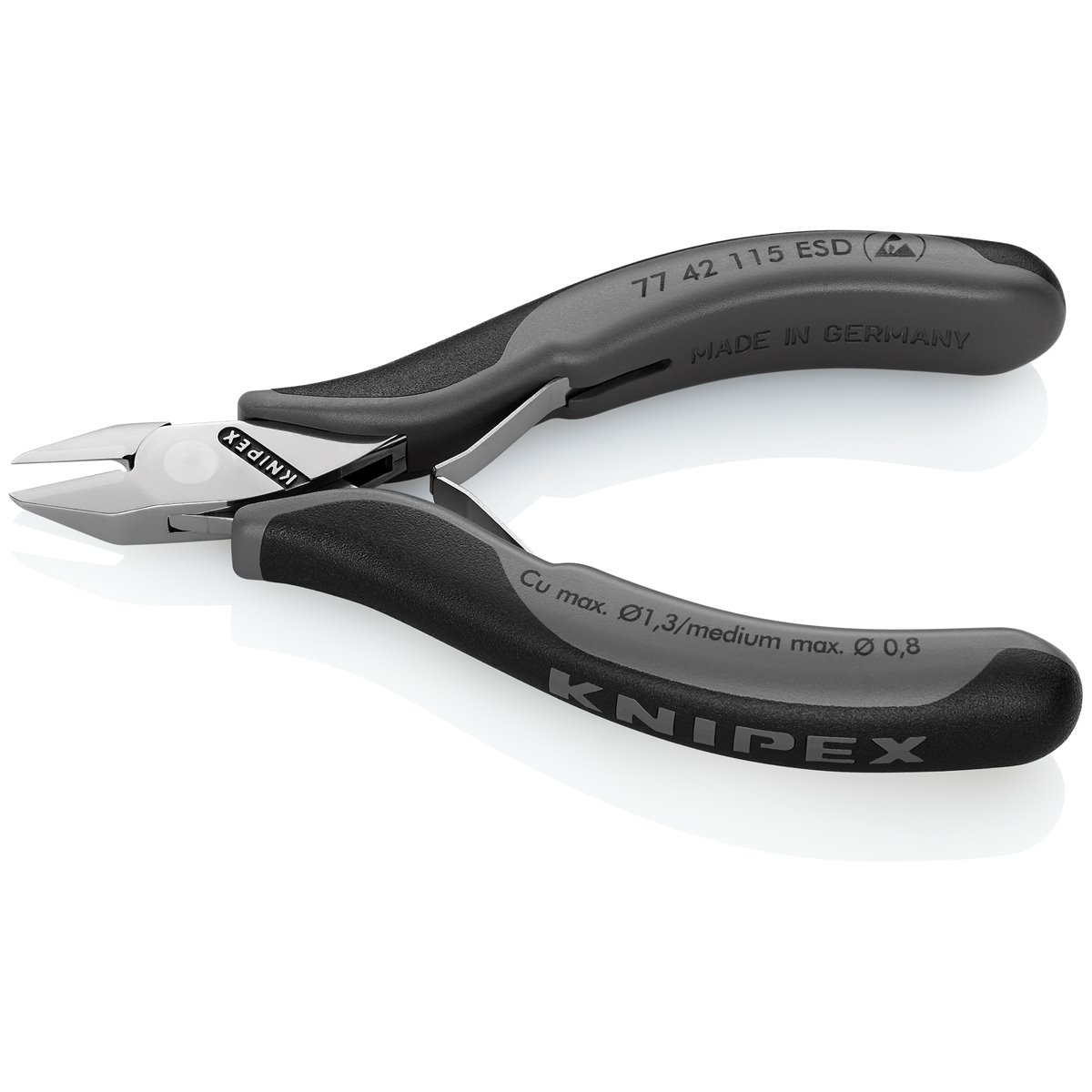

Knipex 77 42 115 ESD Electronics Diagonal Cutter ESD with multi-component grips 115 mm
- For fine cutting work, e.g. in electronics and fine mechanics
- Electrically discharging handles - dissipative
- Sturdy, zero-backlash box joint
- Low-friction double spring for gentle and even opening
- The mirror polish together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutting edges additionally induction hardened, cutting edge hardness approx. 62 HRC
- With two-colour dual component grips, black/grey
- High-grade special tool steel, forged, oil-hardened
Technical data:
- Head: mirror polished
- Handles: with multi-component grips
- Style: 4
- soft wire: 0,3 - 1,3 Ø mm
- medium hard wire: 0,8 Ø mm

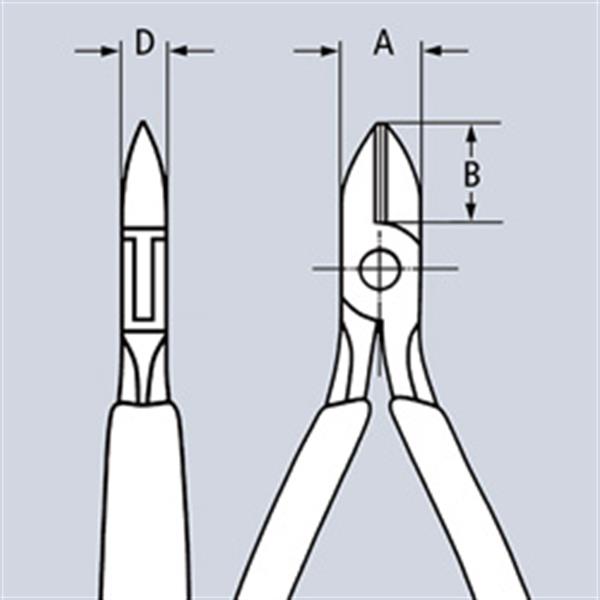

- A: 11 mm
- B: 14 mm
- D: 7 mm
- Length: 115 mm
| Capacity: | 0,3 - 1,0,0,3 - 0,8,0,3 - 1,3,0,3 - 1,6 |
|---|---|
| Cutting style (variant): | with bevel, without bevel, with small bevel |
| Design/type: | electronics, standard length |
| Handles: | Multi-component handle |
| Head shape (variant): | pointed, round |
| Jaw/cutting form (pliers): | Side cutter, with bevel, without bevel, with small bevel |
| Length: | 115 |
| Plier type: | Cutting pliers |
| Surface: | polished |
