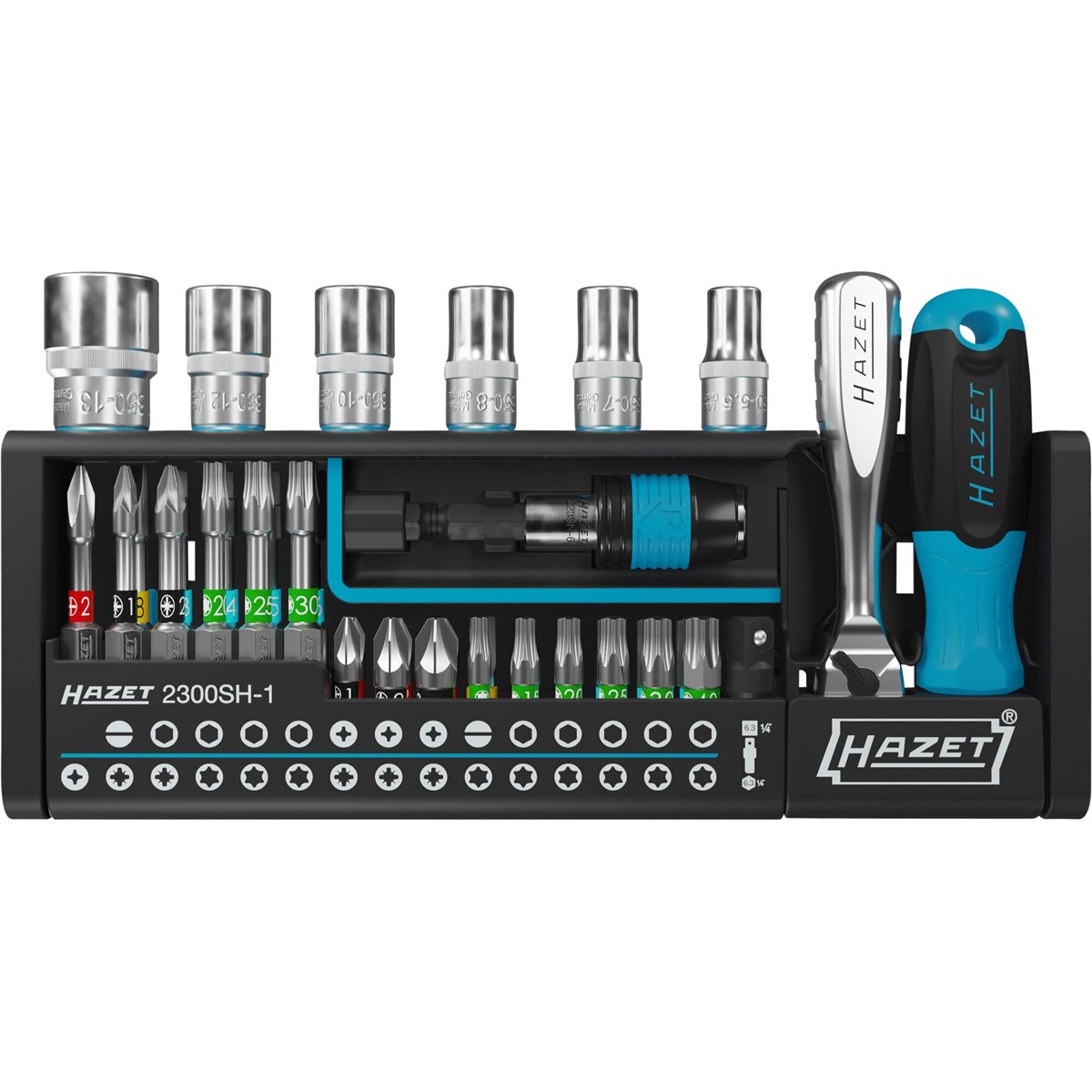

Hazet 2300SH-1 SmartHolder 1/4" set 39 pieces

Product information "Hazet 2300SH-1 SmartHolder 1/4" set 39 pieces "

Hazet 2300SH-1 SmartHolder 1/4" set 39 pieces



Features:

  • Practical tool set, ideal for any tradesman or at home – the perfect addition to the tool case
  • Extremely convenient and compact to store the maximum number of tools in minimal space while offering the best overview
  • Redesigned mini solid steel fine-tooth reversible ratchet ∙ 60 teeth ∙ 6° operating angle for working in restricted spaces
  • Bit holder (length: 80 mm) with magnet for securing bits
  • 18 short bits (length: 25 mm)
  • 11 long bits (length: 50 mm)
  • Bit adapter
  • Stable and easily accessible tool storage
  • Easy to clean

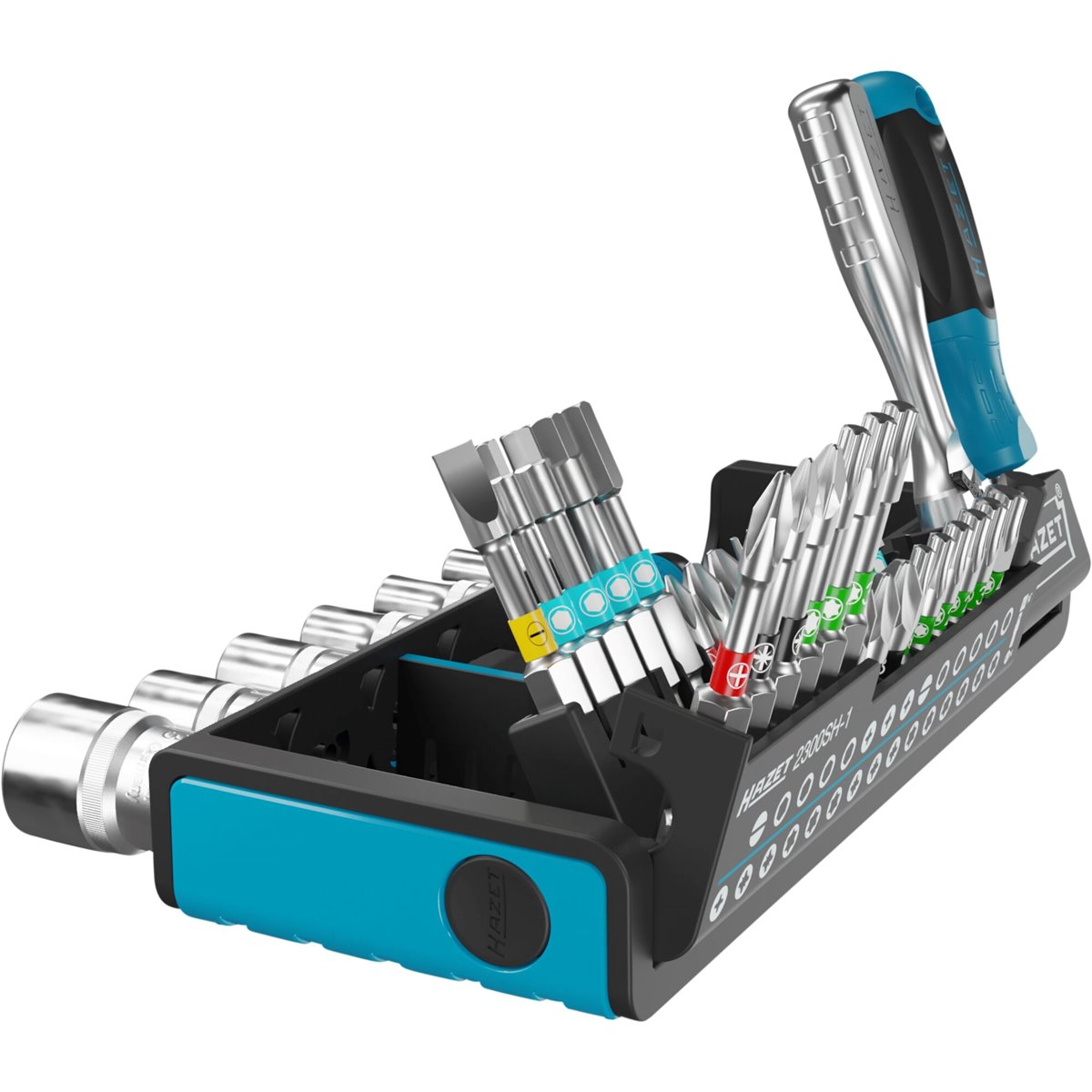

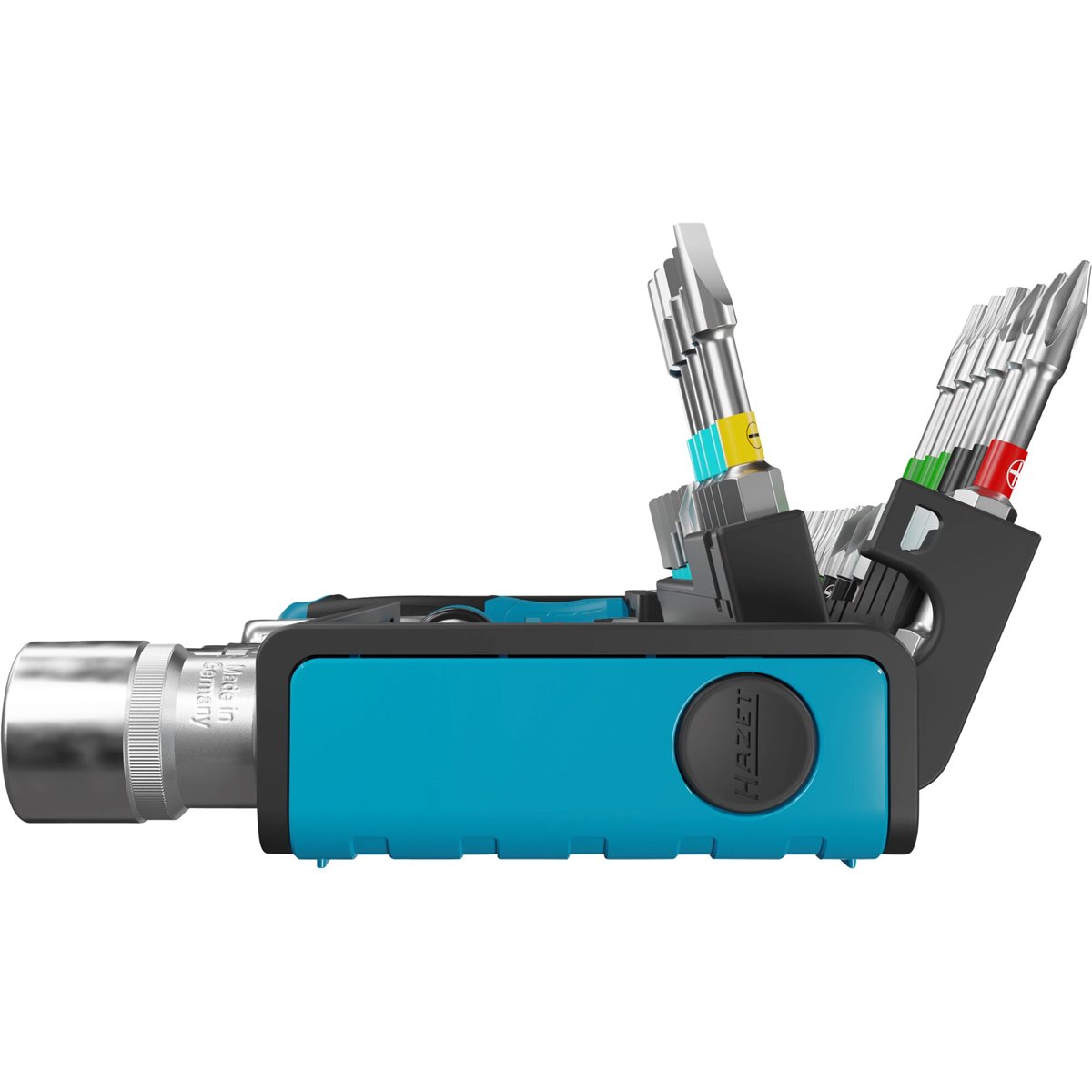

  • Screwdriver bit magazine with kickstand set up using the button on the side
  • Bit strips push away against each other - all bits are easy to remove
  • Tool storage with bit holder - set up by simply pulling on one of the two tools

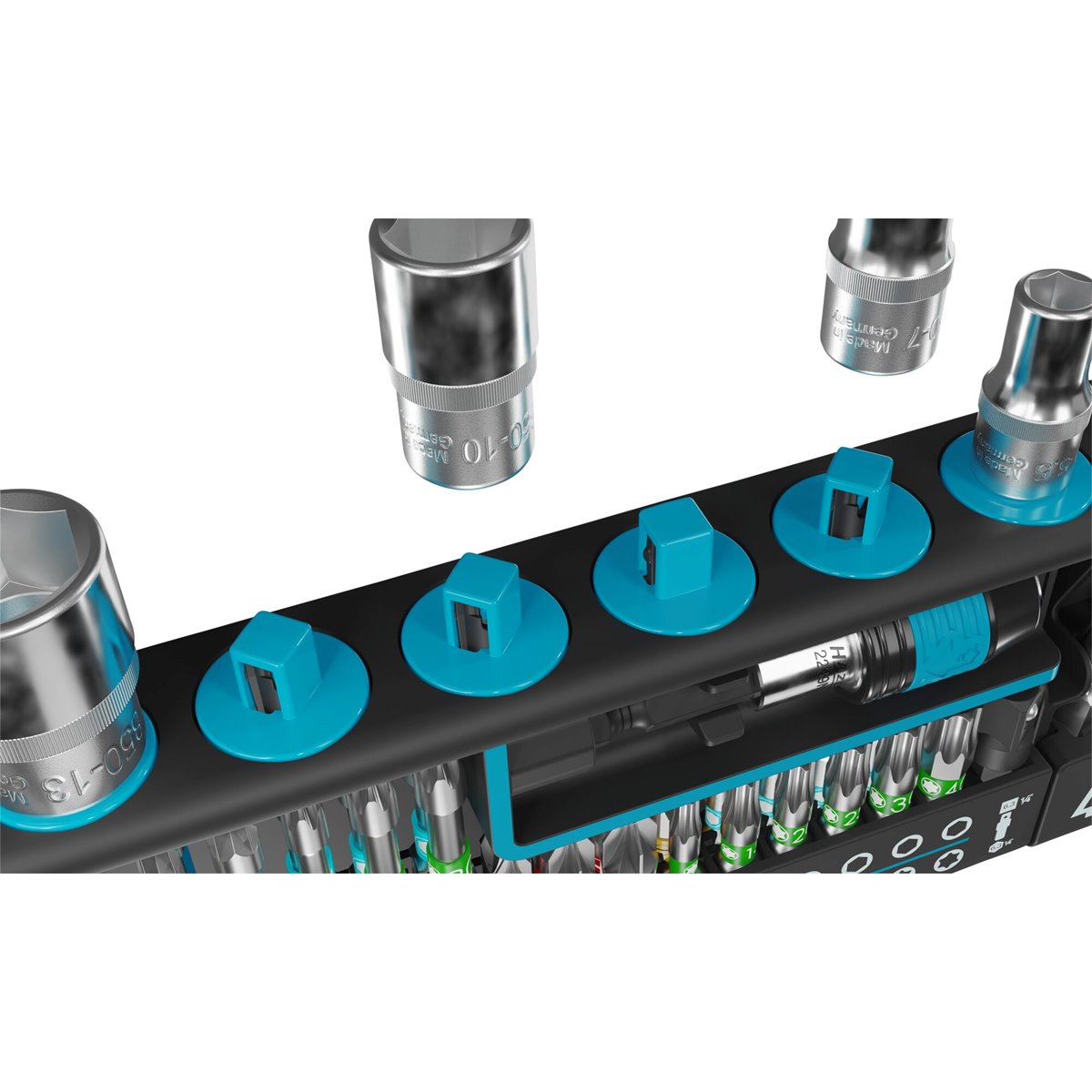

  • When closed, all parts are always safely locked in place - it's impossible for parts to fall out! To remove, turn the socket and pull it out upwards
  • Made in Germany
  • Drive: Hexagon, solid 6.3 (1/4 inches), Square, hollow 6.3 mm (1/4 inch)
  • Output: Slot profile, Cross recess profile PH, Pozidriv profile PZ, Inside hexagon profile, Inside TX® profile, Outside hexagon Traction profile
  • Dimensions / length: 183.6 mm x 74.4 mm x 25.5 mm
  • For manual operation
  • Number of tools: 39


Technical features:

  • Smartholder
  • Weight kg: 1
  • Article no.: 2300SH-1
  • EAN: 4000896246588

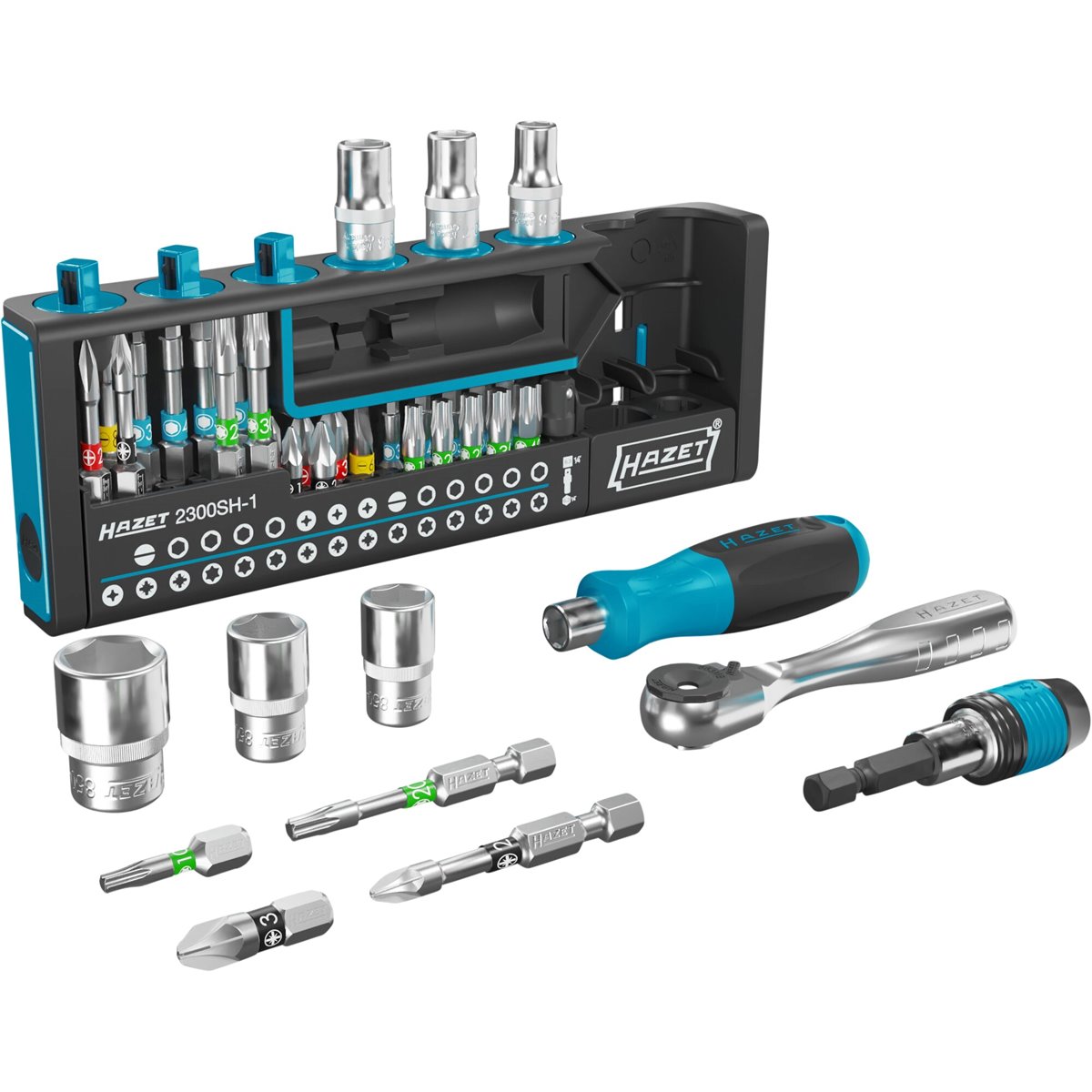

Scope of delivery:


2204NSLG-3 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 3 mm
2204NSLG-4 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 4 mm
2204NSLG-6 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 6 mm
2204N-3 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 3 mm
2208N-6 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Slot profile ∙ 0.6 x 4.5 mm
2204N-6 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 6 mm
2208NSLG-8 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Slot profile ∙ 0.8 x 5.5 mm
2215NSLG-PH2 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Cross recess profile PH ∙ PH2
2215N-PH3 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Cross recess profile PH ∙ PH3
2215N-PH1 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Cross recess profile PH ∙ PH1
2215N-PH2 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Cross recess profile PH ∙ PH2
2216NSLG-PZ2 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Pozidriv profile PZ ∙ PZ2
2216N-PZ1 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Pozidriv profile PZ ∙ PZ1
2216NSLG-PZ1 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Pozidriv profile PZ ∙ PZ1
2216N-PZ3 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Pozidriv profile PZ ∙ PZ3
2204NSLG-5 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 5 mm
2216N-PZ2 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Pozidriv profile PZ ∙ PZ2
2204N-4 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 4 mm
2204N-5 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 5 mm
2223NSLG-T20 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T20
2223NSLG-T25 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T25
2223NSLG-T30 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T30
2239N-6 Adapter Hexagon, solid 6.3 (1/4 inches) ∙ Hexagon, hollow 6.3 (1/4 inch)
2223N-T10 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T10
2223N-T15 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T15
2223N-T20 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T20
2223N-T25 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T25
2204N-8 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside hexagon profile ∙ 8 mm
2223N-T30 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T30
2223N-T40 Bit Hexagon, solid 6.3 (1/4 inches) ∙ Inside TX profile ∙ T40
850-5.5 Socket ∙ hexagon Square, hollow 6.3 mm (1/4 inch) ∙ Outside hexagon Traction profile ∙ 5.5 mm
850-7 Socket ∙ hexagon Square, hollow 6.3 mm (1/4 inch) ∙ Outside hexagon Traction profile ∙ 7 mm
850-8 Socket ∙ hexagon Square, hollow 6.3 mm (1/4 inch) ∙ Outside hexagon Traction profile ∙ 8 mm
850-10 Socket ∙ hexagon Square, hollow 6.3 mm (1/4 inch) ∙ Outside hexagon Traction profile ∙ 10 mm
850-12 Socket ∙ hexagon Square, hollow 6.3 mm (1/4 inch) ∙ Outside hexagon Traction profile ∙ 12 mm
850-13 Socket ∙ hexagon Square, hollow 6.3 mm (1/4 inch) ∙ Outside hexagon Traction profile ∙ 13 mm
2304N Adapter Hexagon, solid 6.3 (1/4 inches) ∙ Square, solid 6.3 mm (1/4 inch)

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

HAZET-WERK - Hermann Zerver GmbH & Co. KG
Güldenwerther Bahnhofstraße 17
42857 Remscheid
Germany
