Stahlwille 7722 Transducers
Product number:
1863103
Manufacturer no.:
96521022
EAN:
4018754224395
Weight in kg:
1.075
Product information "Stahlwille 7722 Transducers"

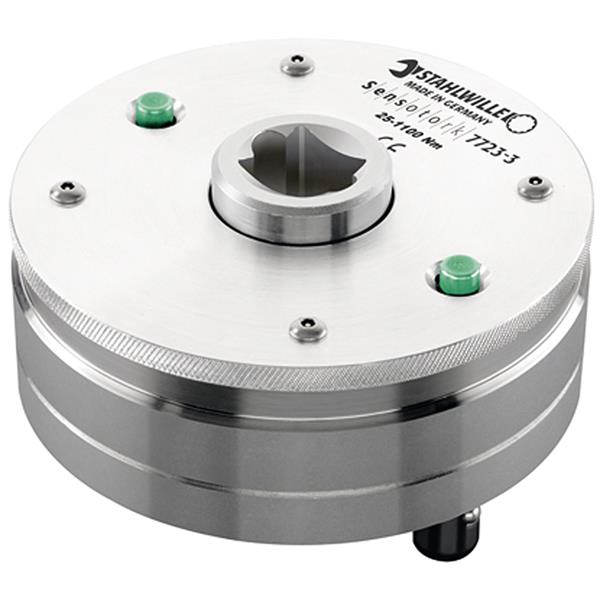

Stahlwille 7722 Transducers
QuickRelease
Patent, for calibration of torque wrenches and torque screwdrivers, high degree of accuracy thanks to conversion and digitization of readings within the transducer itself. Not susceptible to lateral forces due to low-profile construction. Can also be used as part of a calibration system. With certificate. Supplied in sturdy plastic case. Measuring ranges by deviation of indication
Features:
- No: 7722
- Display deviation value ± 1% of the reading: 2-100 N m; 1,5-74 ft.lb; 18-885 in.lb
- Display deviation value ± 0.5% of the reading: 10-100 N m; 7-74 ft.lb; 89-885 in.lb
- Display deviation value ± 0.25% of the reading: 12-100 N m; 9-74 ft.lb; 106-885 in.lb
- Diameter in mm mm: 120
- Inside Square ": 3/8
- Weight g: 2486
- Weight gwith box: 3060
1) for calibrating torque screwdrivers 2) for use with mechanical loader No 7792 and 7792-1 Note! Torque testers are measuring instruments! They have to be regularly calibrated and, where necessary, adjusted, using suitable calibration equipment. We reco
| Size / No. (General): | 7723-2,7723-1,7721-1,7722,7723-3,7724-1,7721-0 |
|---|---|
| Torque Tools: | Test Device |
