Kukko K-20-15 Univ. Puller And Separat. Set W.Auxiliary Hydr. Ram 15 Tons
Product number:
1936019
Manufacturer no.:
K-20-15
EAN:
4021176367311
Weight in kg:
21.61
Product information "Kukko K-20-15 Univ. Puller And Separat. Set W.Auxiliary Hydr. Ram 15 Tons "

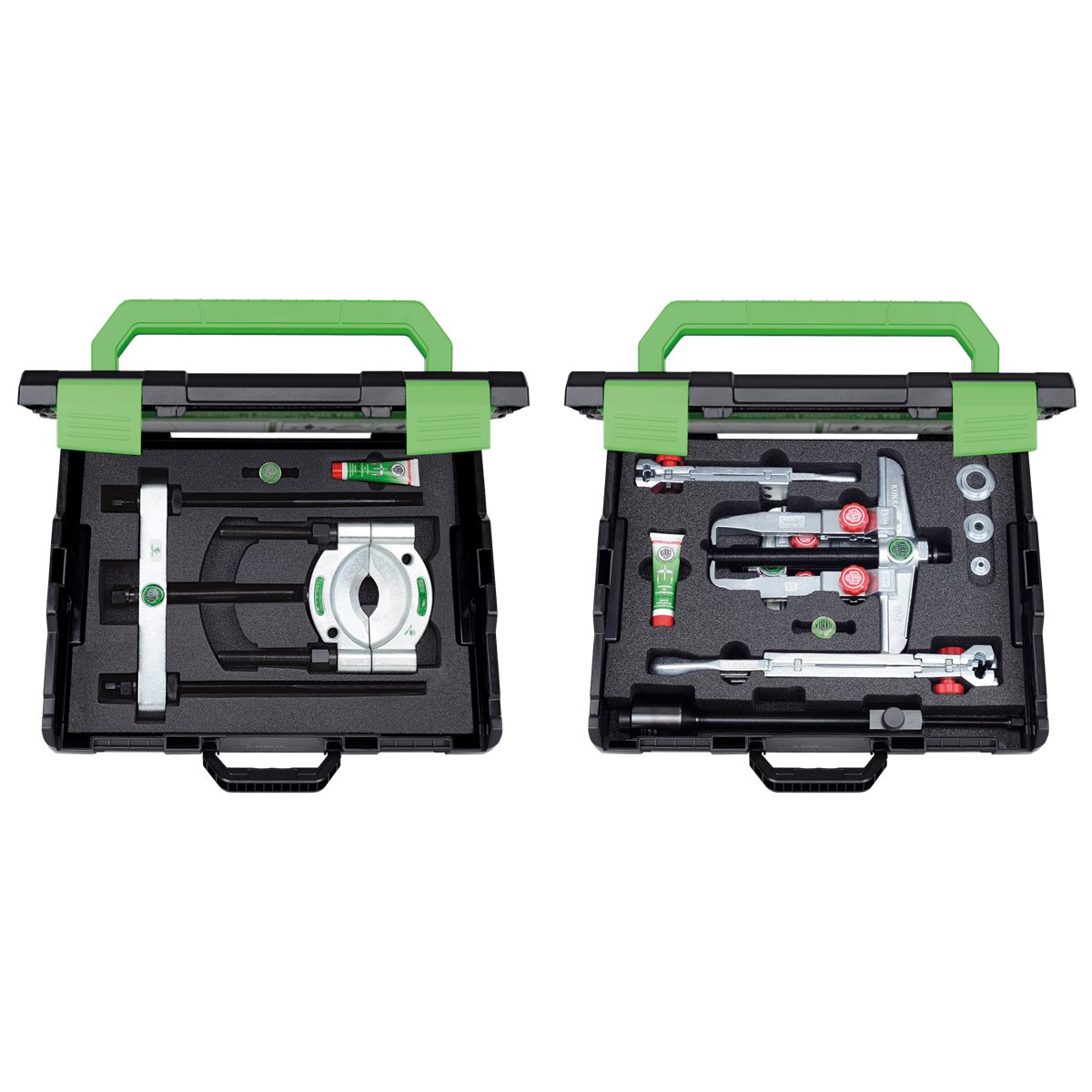

Kukko K-20-15 Universal puller set with separator
For removing and separating ball bearings, roller bearings, inner rings and other flush parts.
Description
- 7 in 1" kit in the tried-and-tested KUKKO-L-Boxx system.
- The set facilitates the assembly of seven different puller models through the combination of separators, mechanical and hydraulic spindles, pulling jaws and extensions.
- Pulling hook with quick adjusting capability quick adjust.
- Jaw extensions.
- Parallel pulling hooks in every position, even with full load.
- Pulling hooks with infinitely variable adjustment on the cross-beam.
- Hydraulic and mechanical pressure screw.
- Milled thread treated with special coating.
- The sharp blades enable flush parts to be removed where pulling jaws cannot be used.
- Includes a pressure pad set for supporting the pressure spindle in a hollow shaft.
- Instructions on the cover.
- Secure storage in special foam.
- Personal KUKKO-Chip-Code.
Advantage
- Practical package for universal use.
- Easy and even pulling for particularly tight parts.
- A manual adjustment knurl allows rapid loosening and adjusting of the extractor jaws on the cross-beam without using a wrench.
- Variable reach with jaw extensions.
- Optional conversion to various jaw types for mechanical use.
- Turning the pulling hooks enables them to be used both internally and externally.
- Suitable for pulling asymmetric workpieces.
- Cross-beams with hexagonal profile for good grip.
- Hydraulic spindle can be used for both cross-beams.
- Spindle head band prevents the wrench from slipping off.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
- Complete easy-to-manage package.
- KUKKO-L-Boxx-System compatible with systems by all common manufacturers.
|
|||||||||||||||||||||||
