Kukko 129-5-45-H20 Hydraulischer Spur- Und Schubst angengelenkabzieher - Ausdrücker Mit 20 Tonnen Hy
€960.95
Content:
1 pcs
/ 7
Delivery time 7 working days
Product number:
1932791
Manufacturer no.:
129-5-45-H20
EAN:
4021176333422
Weight in kg:
9.57
Product information "Kukko 129-5-45-H20 Hydraulischer Spur- Und Schubst angengelenkabzieher - Ausdrücker Mit 20 Tonnen Hy"

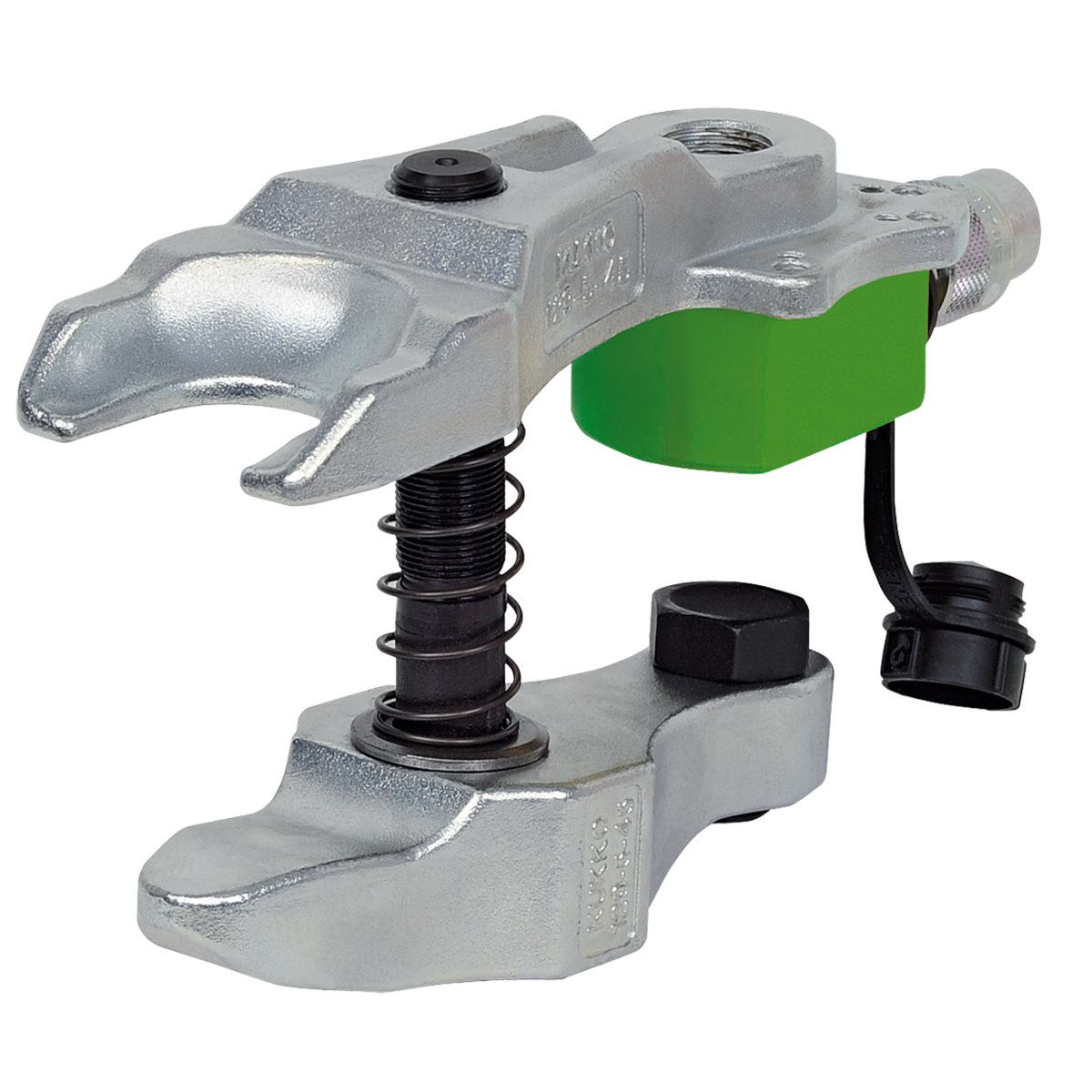

Kukko Tie and connecting rod joint puller with hydraulic lift cylinder
Description
- High performance is guaranteed by the extra-powerful design of the basic body and reinforced fork.
- Hydraulic cylinder.
- The central spindle can be used to preload and adjust the extractor.
- Suitable for the following motor vehicle types:
- Mercedes Benz: ACTROS, ATEGO over 18 tonnes, SKO 405, -N, -GN (low-floor buses)
- MAN: F2000, TG, A 23 (low-floor articulated buses)
- Scania models 3 and 4, Icarus
- A hydraulic pump (YHP-320) with a hose (YF-200) is required to drive the tool. Not included in delivery.
Use
- Used for hydraulic extraction of ball pins when dismantling ball joints on connecting and steering tie rods, especially, for trucks and low-floor buses.
Advantage
- The hydraulic extractors are driven by a hydraulic cylinder, which ensures controlled and safe operations.
- They use the entire performance range of the puller, well beyond the possibilities of a mechanical pressure screw.
- Almost all components available as replacement parts, time-saving order process thanks to numbering system.
How it works

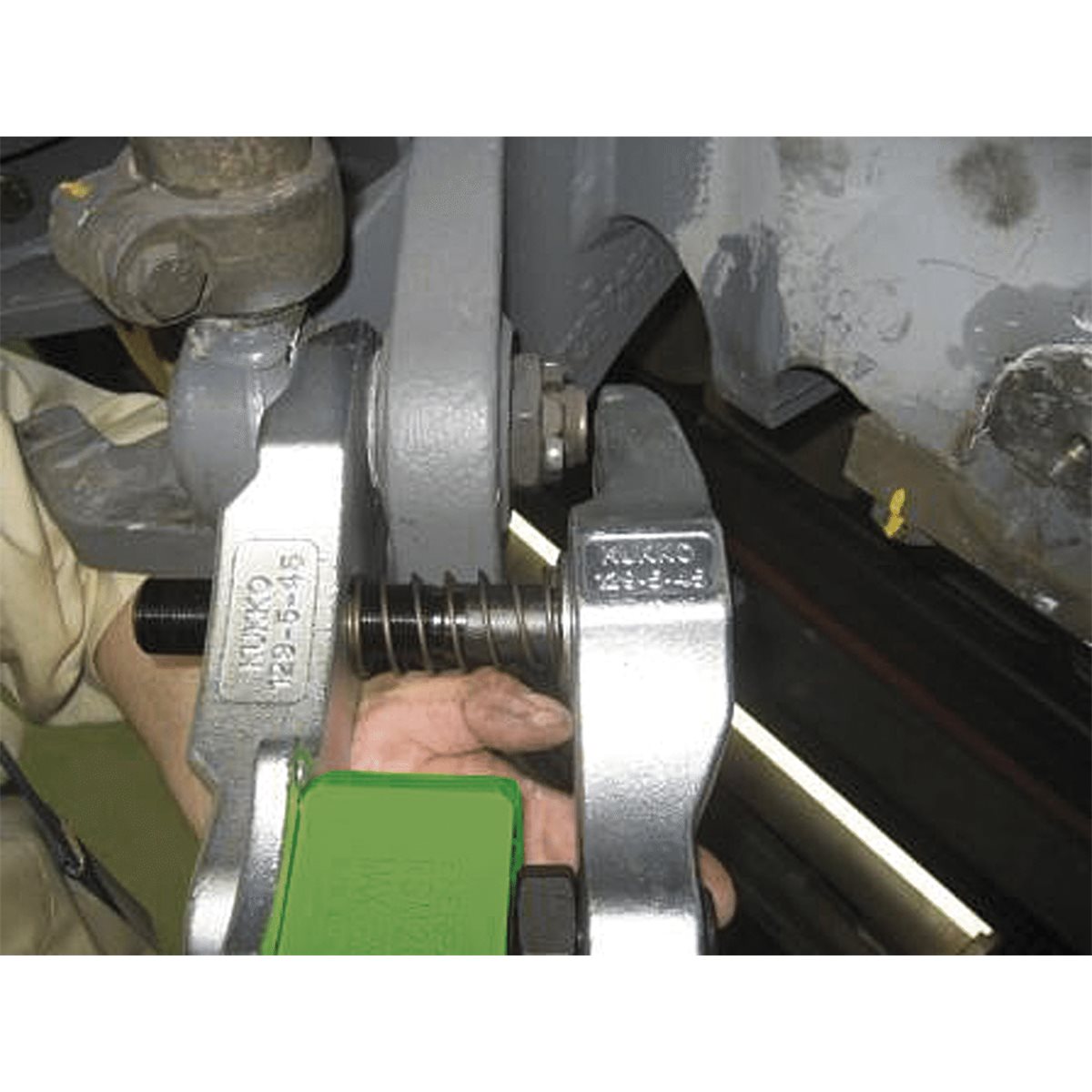

- Position the puller clamp by pressing on the spring, slide it between the ball joint, and operate the hydraulics.
- To drive the hydraulic cylinder with the 3/8 high flow coupling box use the Baureihe YHP-325
- Preposition the extractor at the right height, preload the anvil and then activate the hydraulics/pressure spindle.
Safety information
- Do not use any electrical or pneumatic servo screwdrivers or hammer drills.
- Protective blanket required.
- Protective goggles required.
