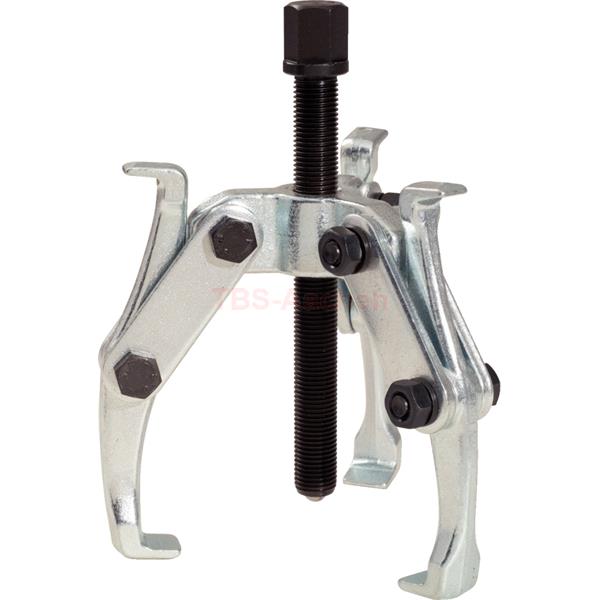

KS-Tools 630.3001 Universal 3 arm puller, 20-150mm

Product information "KS-Tools 630.3001 Universal 3 arm puller, 20-150mm "

KS-Tools 630.3001 Universal 3 arm puller, 20-150mm



Features:

  • Universal 3 arm puller, 20-150mm
  • Legs double ended usable
  • Extremely robust spindle with inductively hardened thread
  • Special tool steel


Technical features:

  • KS-Tools item number: 630.3001
  • EAN: 4042146306666
  • Weight: 1200 g

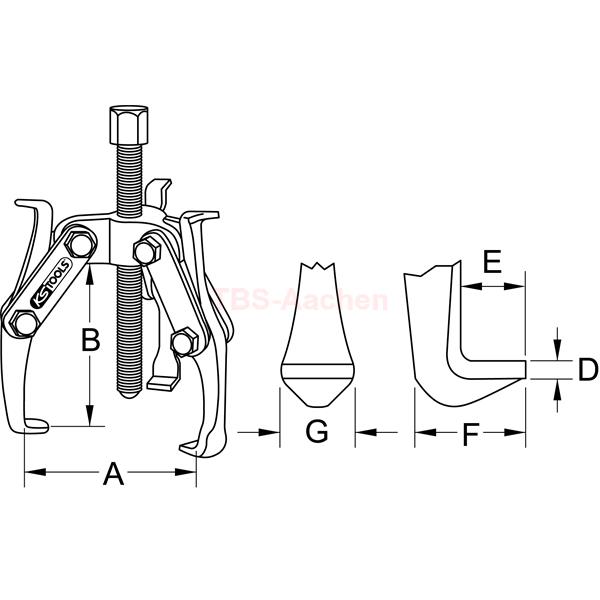

  • Maximum clamping width A in mm: 20-150
  • External hexagon drive in mm: 17
  • Jaw depth B in mm: 85
  • Max. torque Nm: 60
  • Height of arm tip D: 2
  • Arm tip depth E: 9
  • Arm total depth F: 21
  • Arm width G: 12
  • Max. KN: 40,0
  • Max. Nm: 60
  • Max. t: 4
  • Spindle size mm: M14x1,5x130
  • Span width from [mm]: 20
  • Keywords: Pullers, Extractor, Balljoint separator
