Knipex 97 54 24 CRIMP LEVER PLIER
€382.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Product number:
1846435
Manufacturer no.:
975424
EAN:
4003773060215
Weight in kg:
0.34
Product information "Knipex 97 54 24 CRIMP LEVER PLIER "

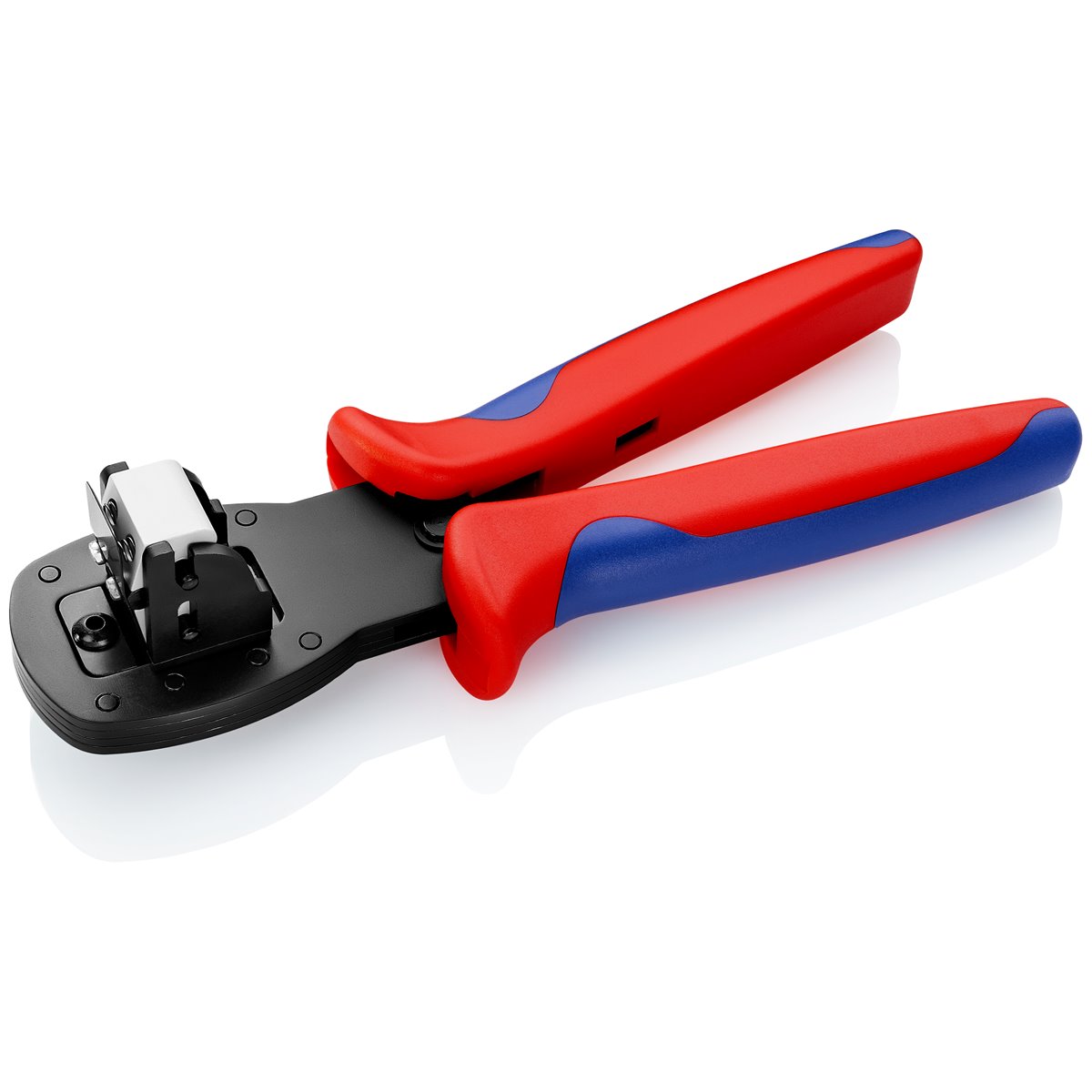

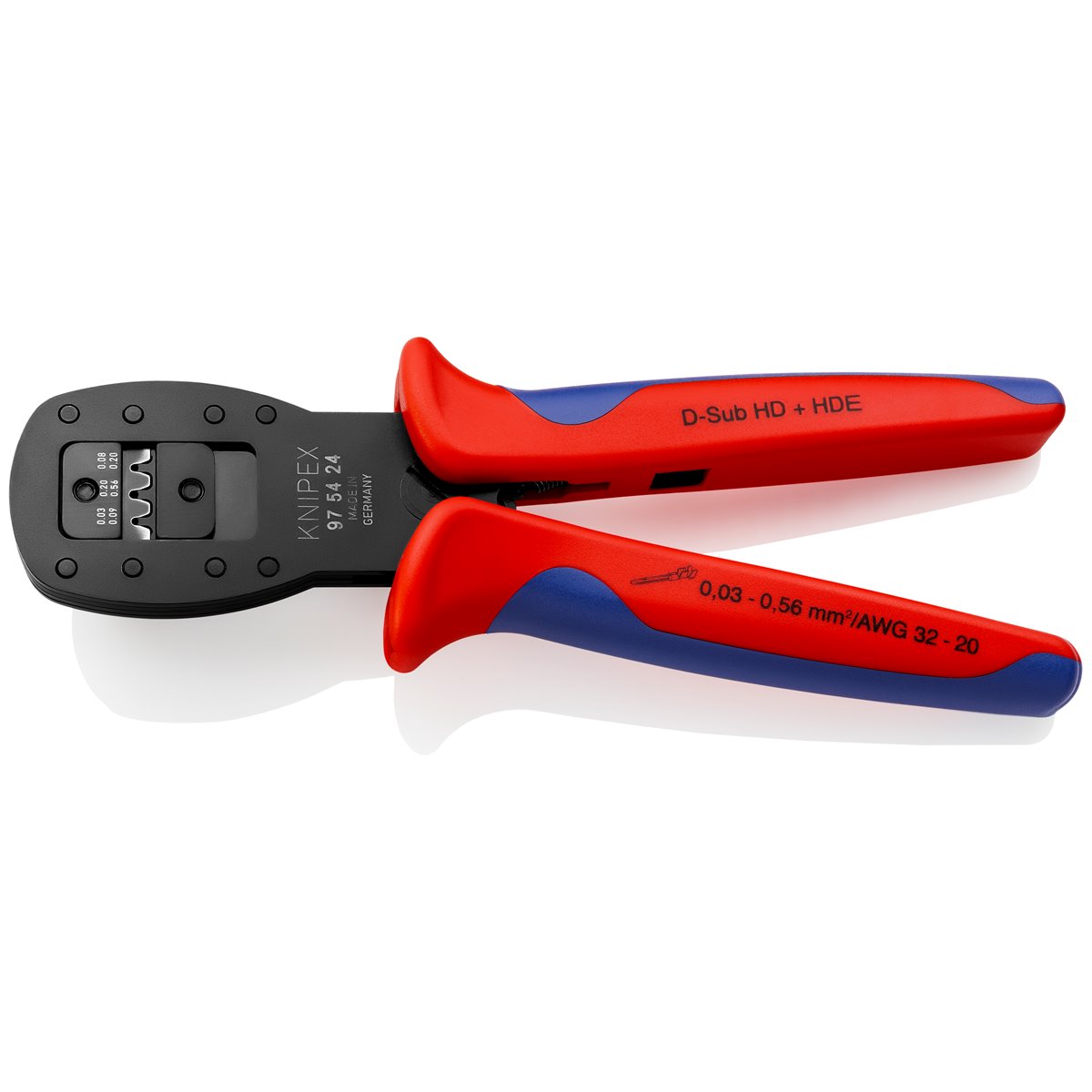

Knipex 97 54 24 Crimping Pliers for micro plugs burnished 190 mm
- Parallel crimping performance to satisfy the particularly high standards of small connectors
- Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism)

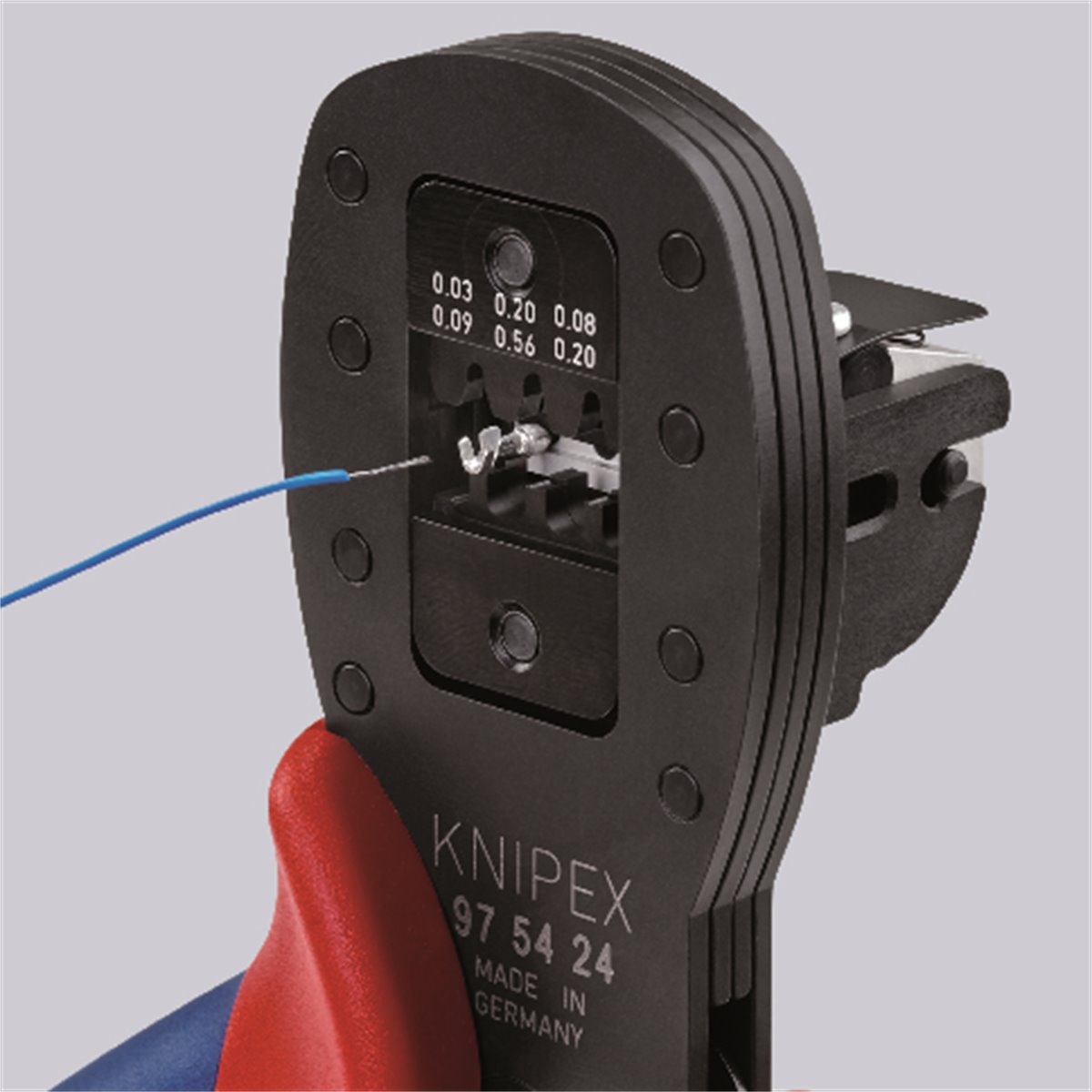

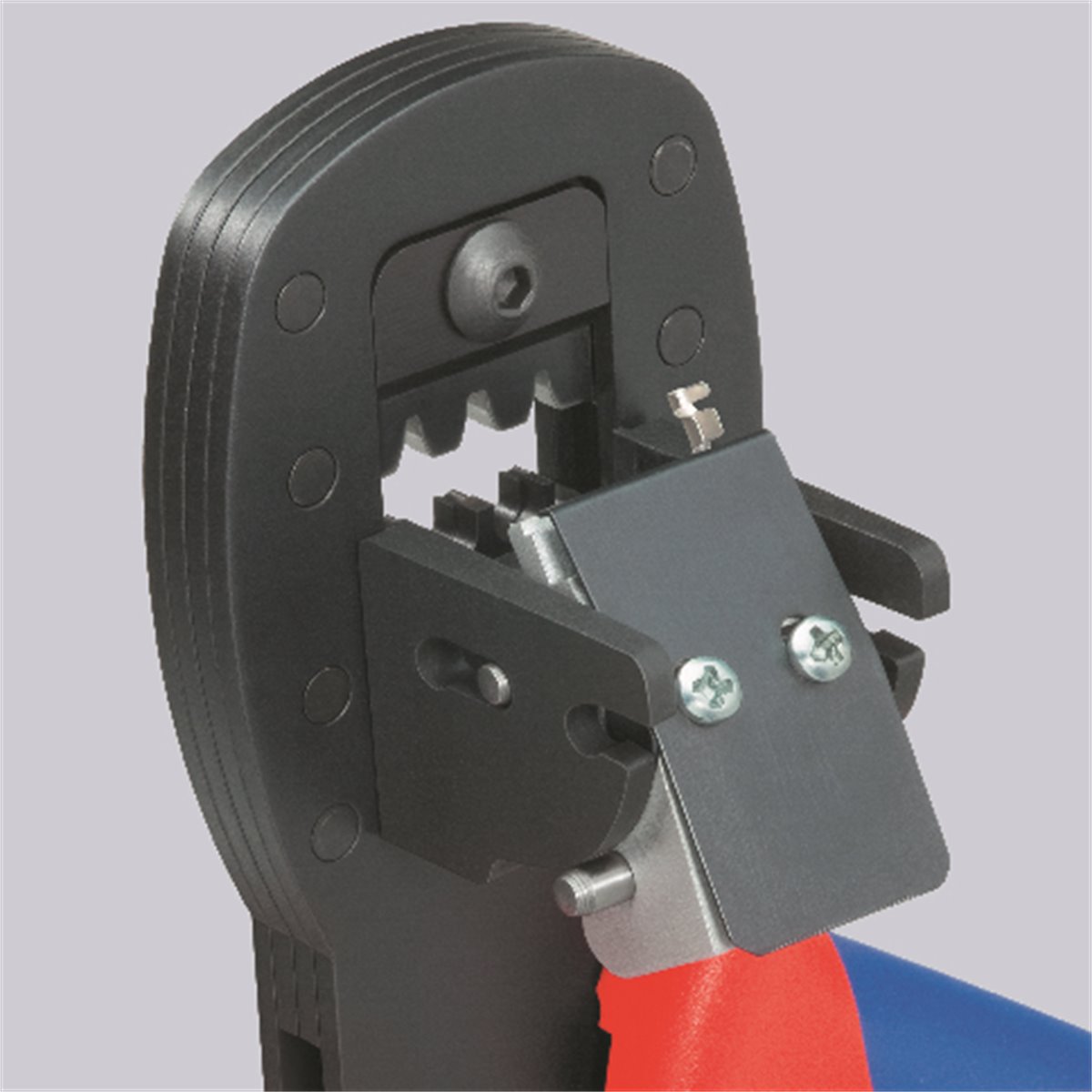

- Fixed locator for D-Sub micro plugs for an exact positioning of connector and cable
- Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- Crimping pliers for other mini plugs as e. g. HD 22, Modu IV, Micro Timer, MQS, .. on request
- Chrome vanadium electric steel in special quality, oil-hardened
Technical data:
- Pliers: burnished
- Handles: with multi-component grips
- Applications: D Sub; HD 20; HDE plug
- Capacity: 0,03 - 0,56 mm²
- AWG: 32 - 20
- Number of crimping positions: 3
- Length: 190 mm
| Plier type: | Crimping pliers |
|---|
