Knipex 97 53 08 CRIMPING PLIERS F. CABLE LINKS
€161.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Product number:
1846429
Manufacturer no.:
975308
EAN:
4003773040187
Weight in kg:
0.48
Product information "Knipex 97 53 08 CRIMPING PLIERS F. CABLE LINKS "

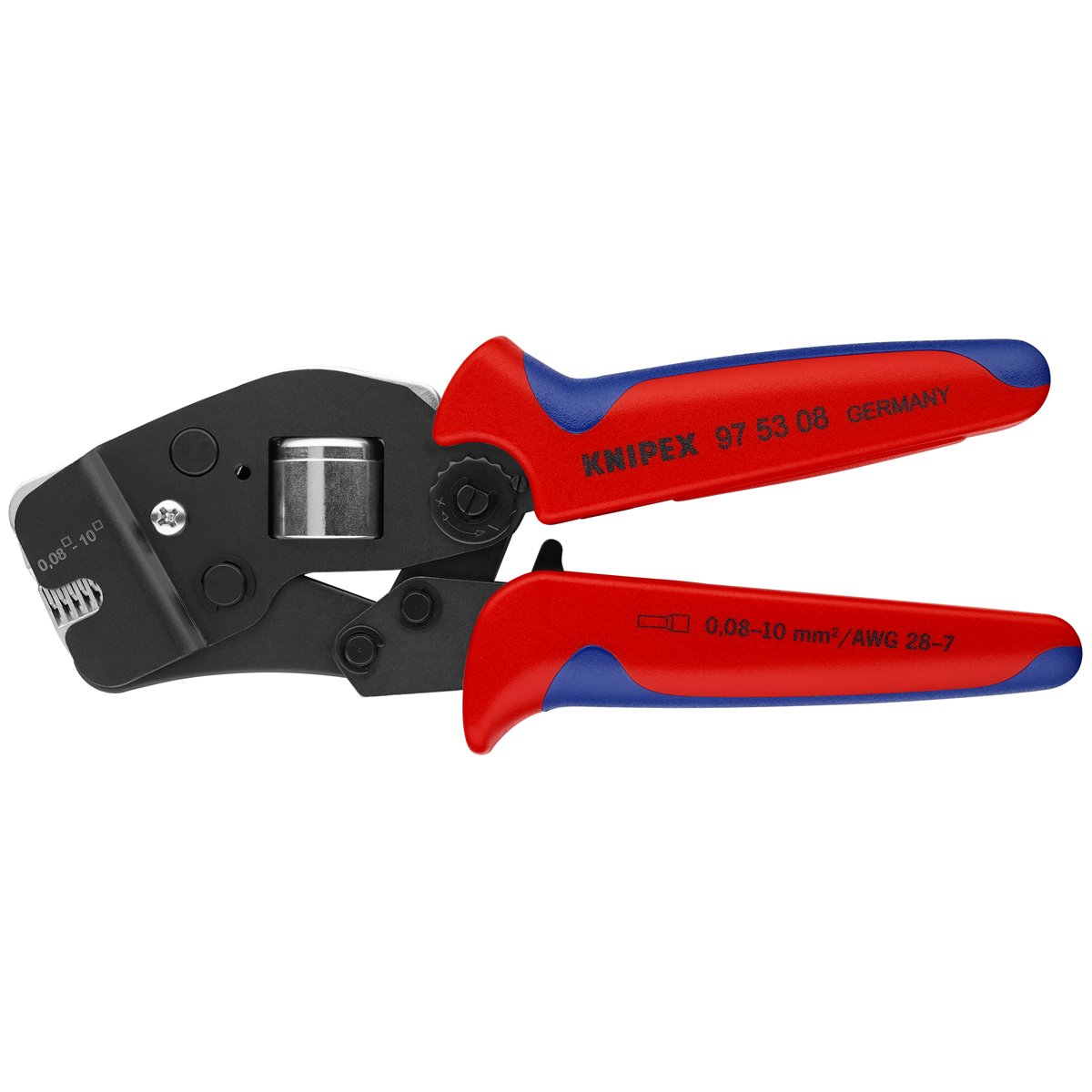

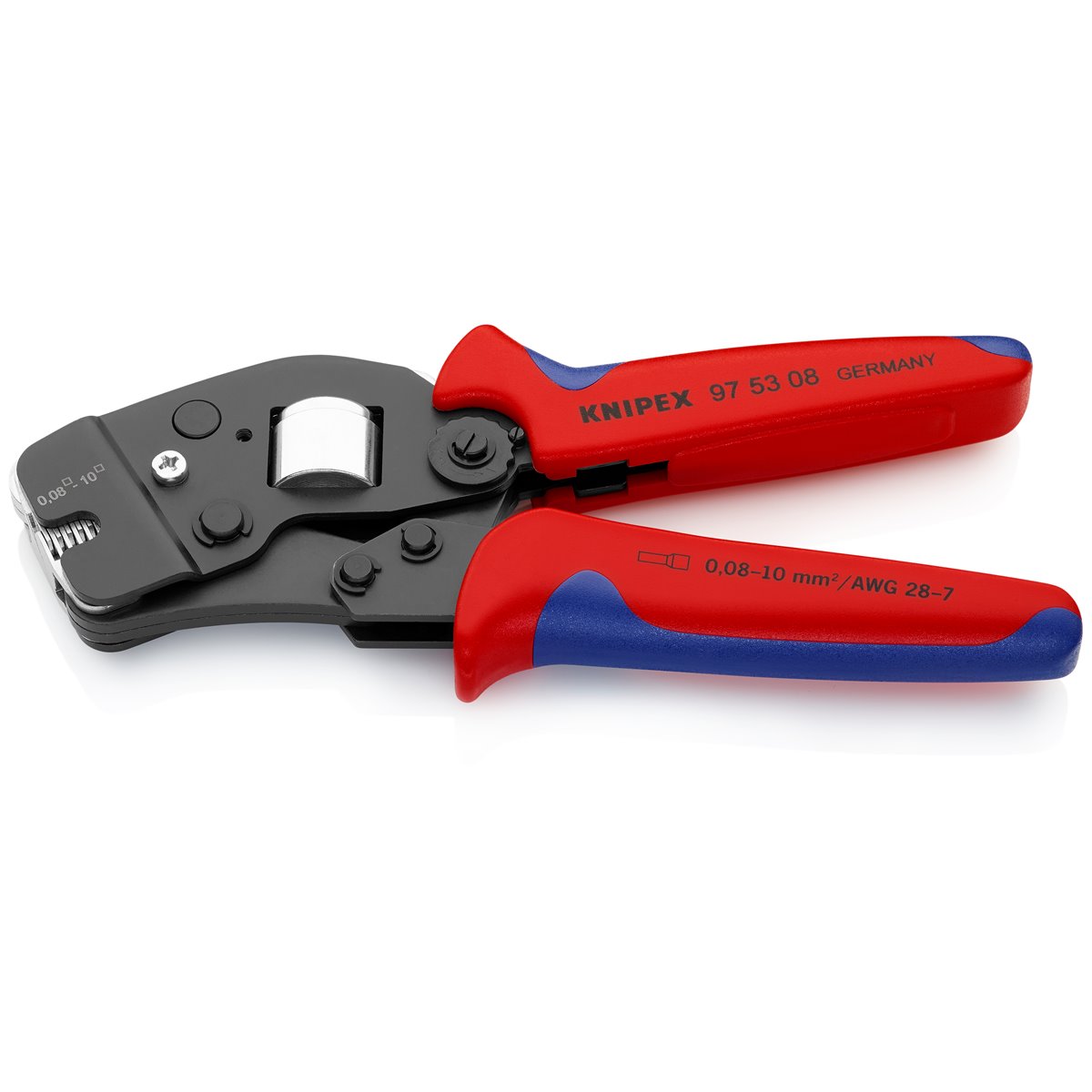

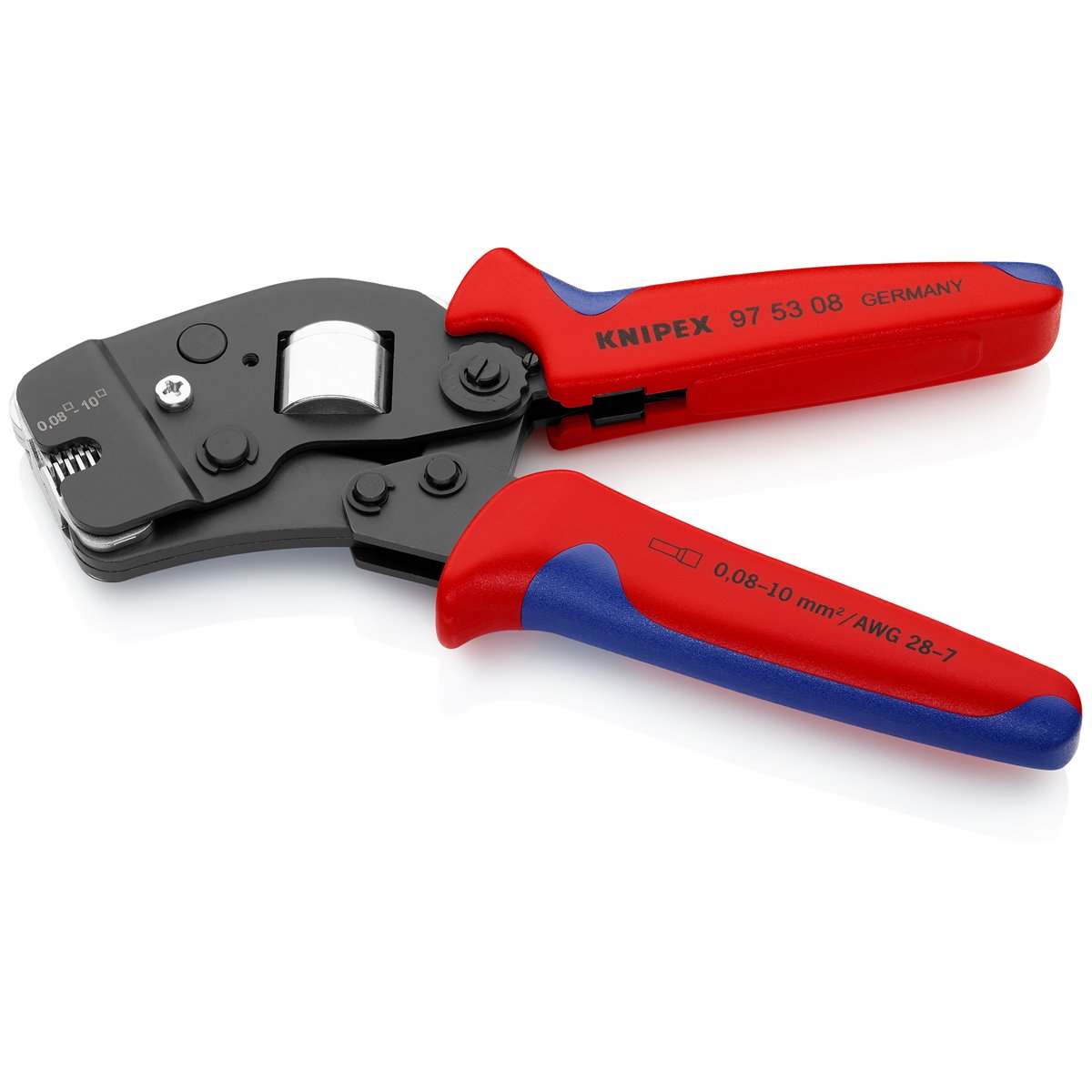

Knipex 97 53 08 Self-Adjusting Crimping Pliers for End Sleeves (ferrules) burnished 190 mm

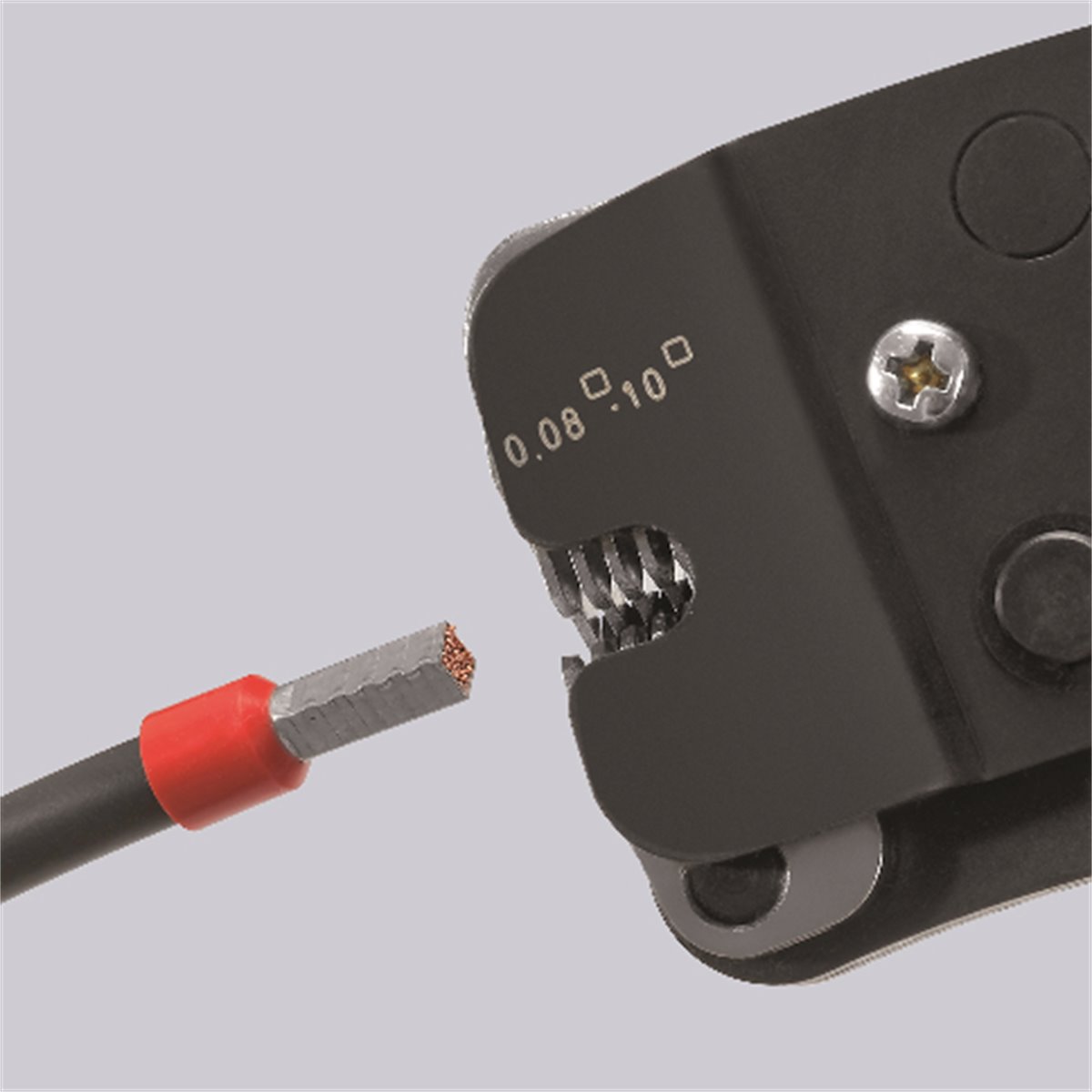

- For crimping end sleeves (ferrules) according to DIN 46228 parts 1 + 4
- Self-adjusting adaptation to the desired end sleeve (ferrule) size: no wrong crimps caused by using the wrong die
- Fits all twin- ferrules within the application range

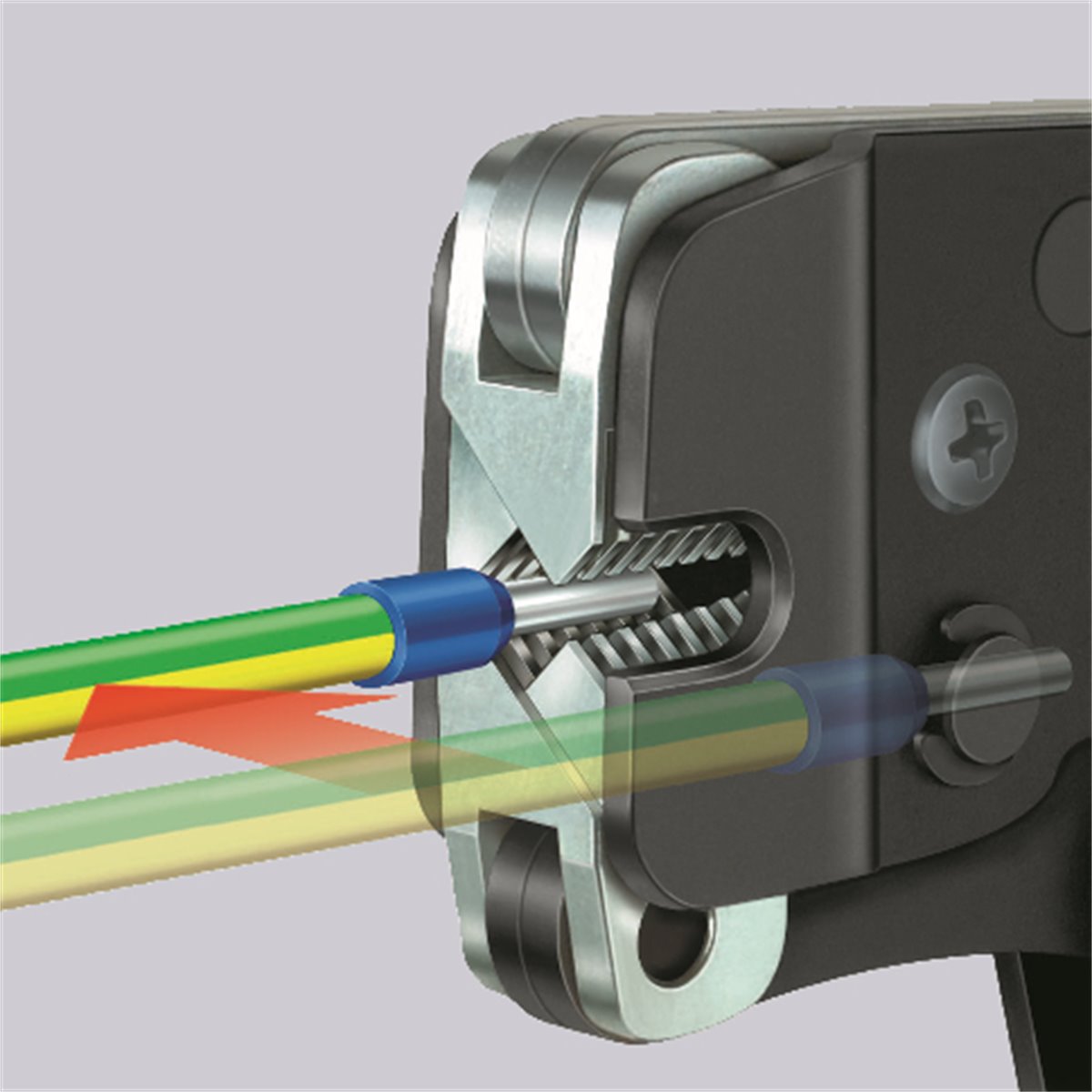

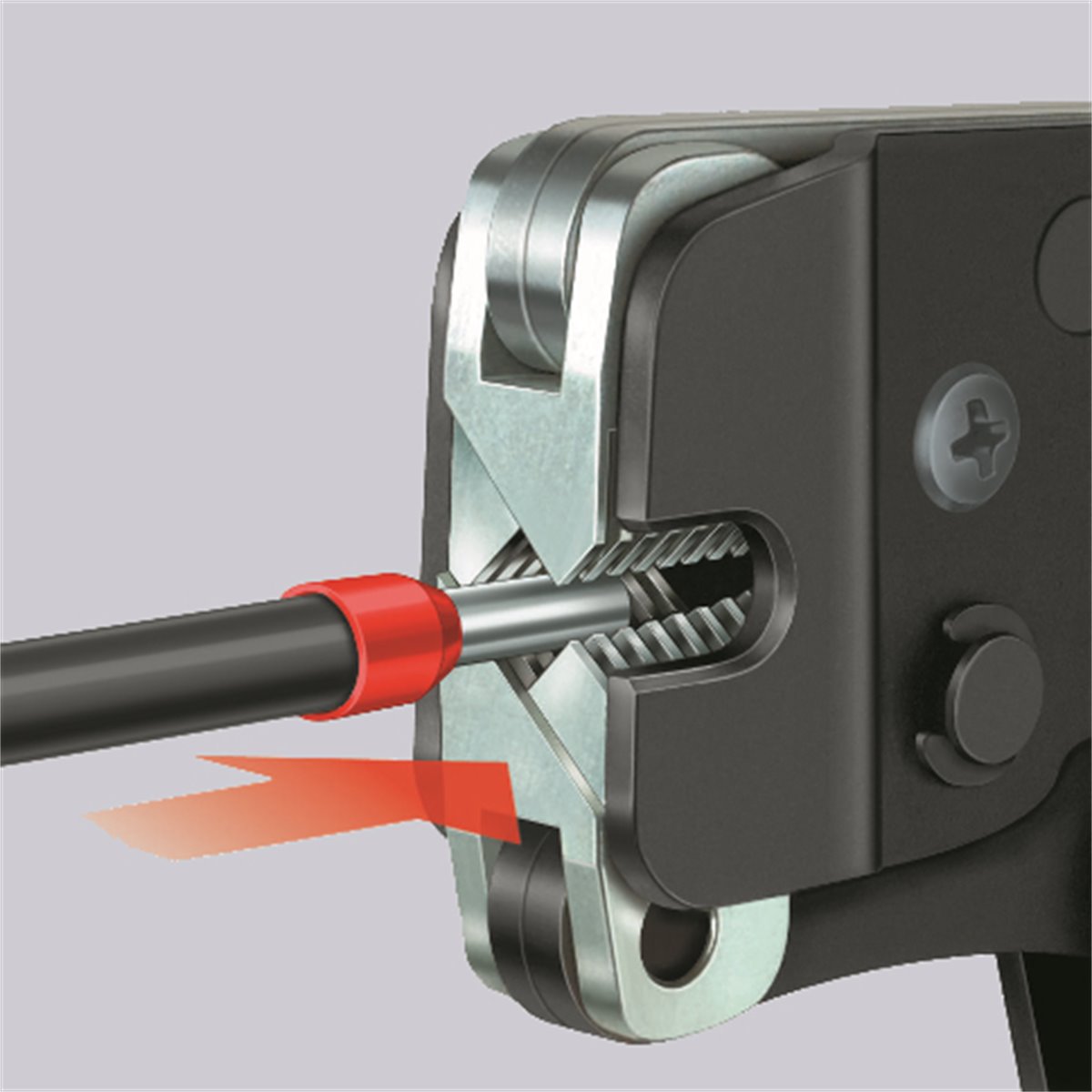

- Front loading of the end sleeves (ferrules) into the tool
- Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
- Crimping pressure has been set precisely (calibrated) in the factory, re-adjustable
- Optimum transmission of force thanks to toggle lever for fatigue-reduced operation
- High operation comfort thanks to handy shape and low weight
- Chrome vanadium electric steel in special quality, oil-hardened
Technical data:
- Pliers: burnished
- Handles: with multi-component grips
- Applications: End Sleeves (ferrules)
- Capacity: 0,08 - 10 mm²
- AWG: 28 - 7
- Number of crimping positions: 1
- Length: 190 mm
| Plier type: | Crimping pliers |
|---|
