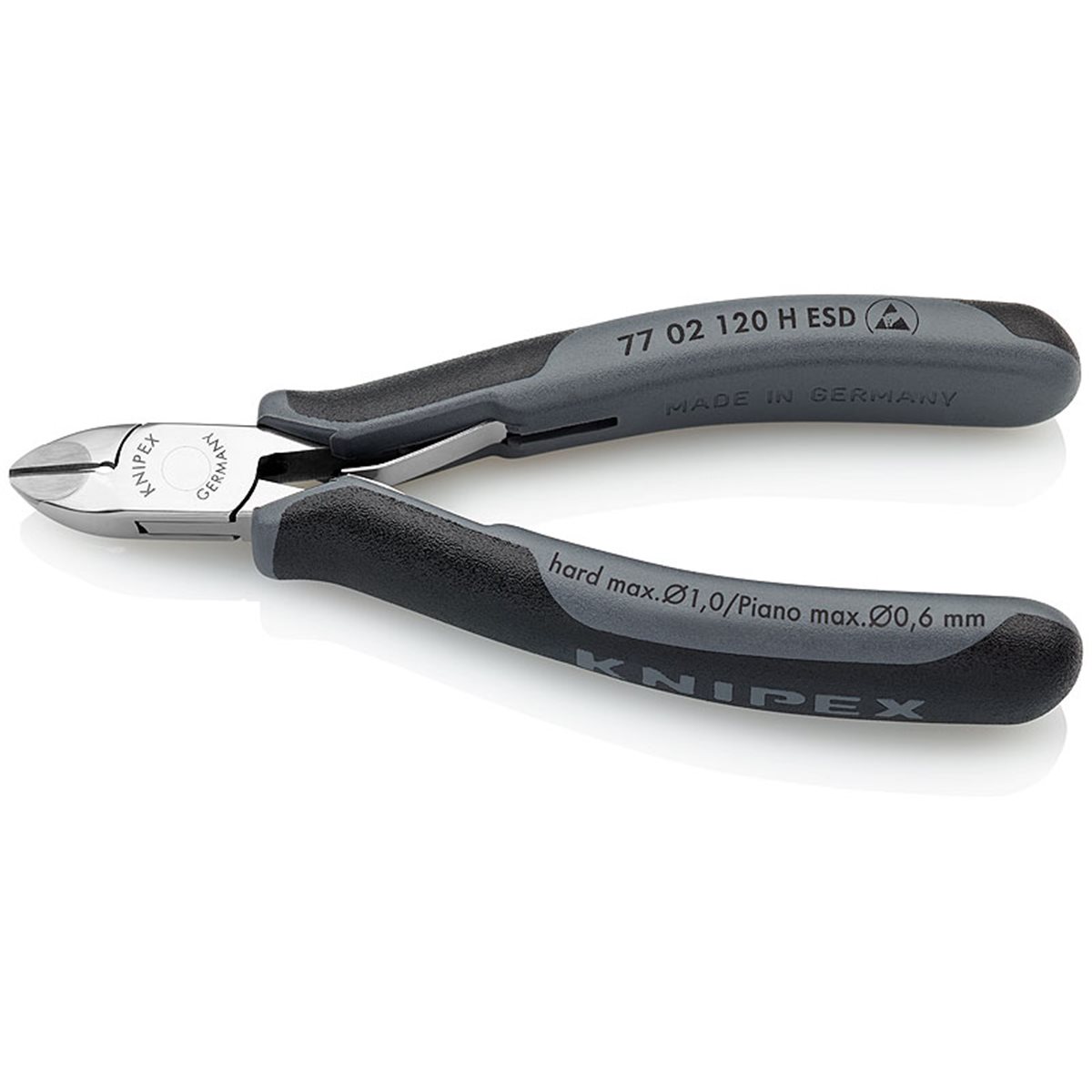

Knipex 77 02 120 H ESD Hard Metal Electronics Diag . Cutter ESD
€99.95
Available, delivery time: 2 working days
Available1: 4 unit(s)
Product number:
1859120
Manufacturer no.:
7702120HESD
EAN:
4003773075813
Weight in kg:
0.1
Product information "Knipex 77 02 120 H ESD Hard Metal Electronics Diag . Cutter ESD"
Knipex 77 02 120 H ESD Electronics Diagonal Cutter ESD 120 mm
Features:
- For extreme demands on cutting pliers caused by hard or tough materials, e.g. piano, nickel, tungsten and diode wire, such as those used more frequently in the electronics and aerospace industries
- Always the right cutting tool, even with the hardest material
- Precision carbide metal cutting edges soldered into forged blanks
- Sturdy, zero-backlash box joint
- Hardness of the carbide cutting edges 80 – 83 HRC
- Pliers with carbide metal cutting edges have a substantially longer service life than such with conventional cutting edges
- Constantly reliable cutting results due to the avoidance of cutter deformations
- High cost saving due to longer service life of the pliers
- Electrically discharging handles - dissipative
Technical data:
- Head: mirror polished
- Handles: with multi-component grips
- soft wire: 2,0 Ø mm
- hard wire: 1 Ø mm
- piano wire: 0,6 Ø mm
- medium hard wire: 1,4 Ø mm
- B: 14 mm
- A: 11 mm
- D: 7,5 mm
- Length: 120 mm
