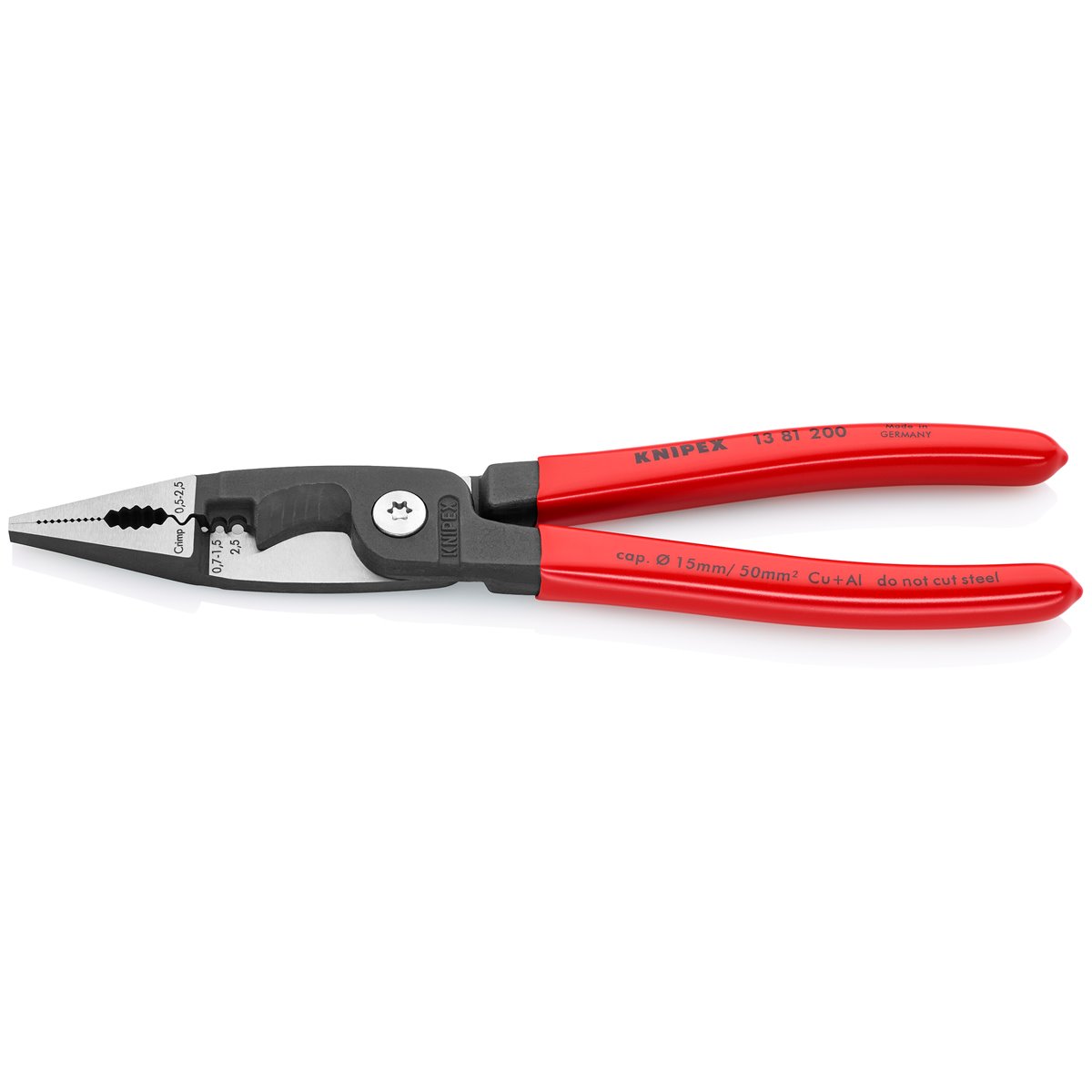

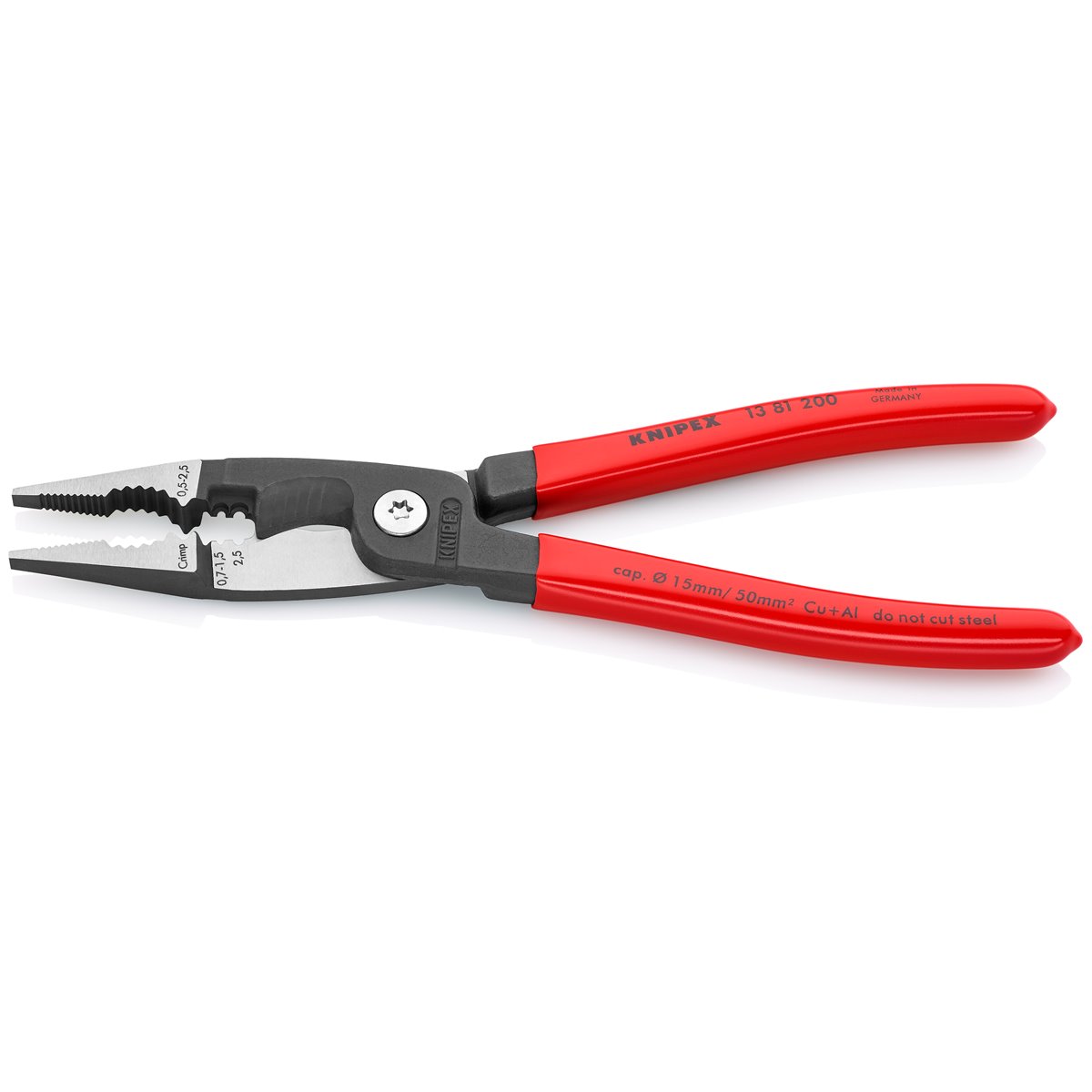

Knipex 13 81 200 Pliers for Electrical Installation black atramentized plastic coated 200 mm
€48.95
/ 5
Delivery time 5 working days
Product number:
1852664
Manufacturer no.:
1381200
EAN:
4003773075240
Weight in kg:
0.286
Product information "Knipex 13 81 200 Pliers for Electrical Installation black atramentized plastic coated 200 mm"
Knipex 13 81 200 Pliers for Electrical Installation black atramentized plastic coated 200 mm
- Multifunctional pliers for the electrical installation- to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping end sleeves (ferrules)
- 6 functions in one pair of pliers
- Smooth surfaces near the tips grip single cores without damaging them- serrated gripping surfaces and pipe grip for gripping flat and round material
- Clear-cut outside edge on the jaw for working on flush-mounted junction boxes and deburring feed-through holes

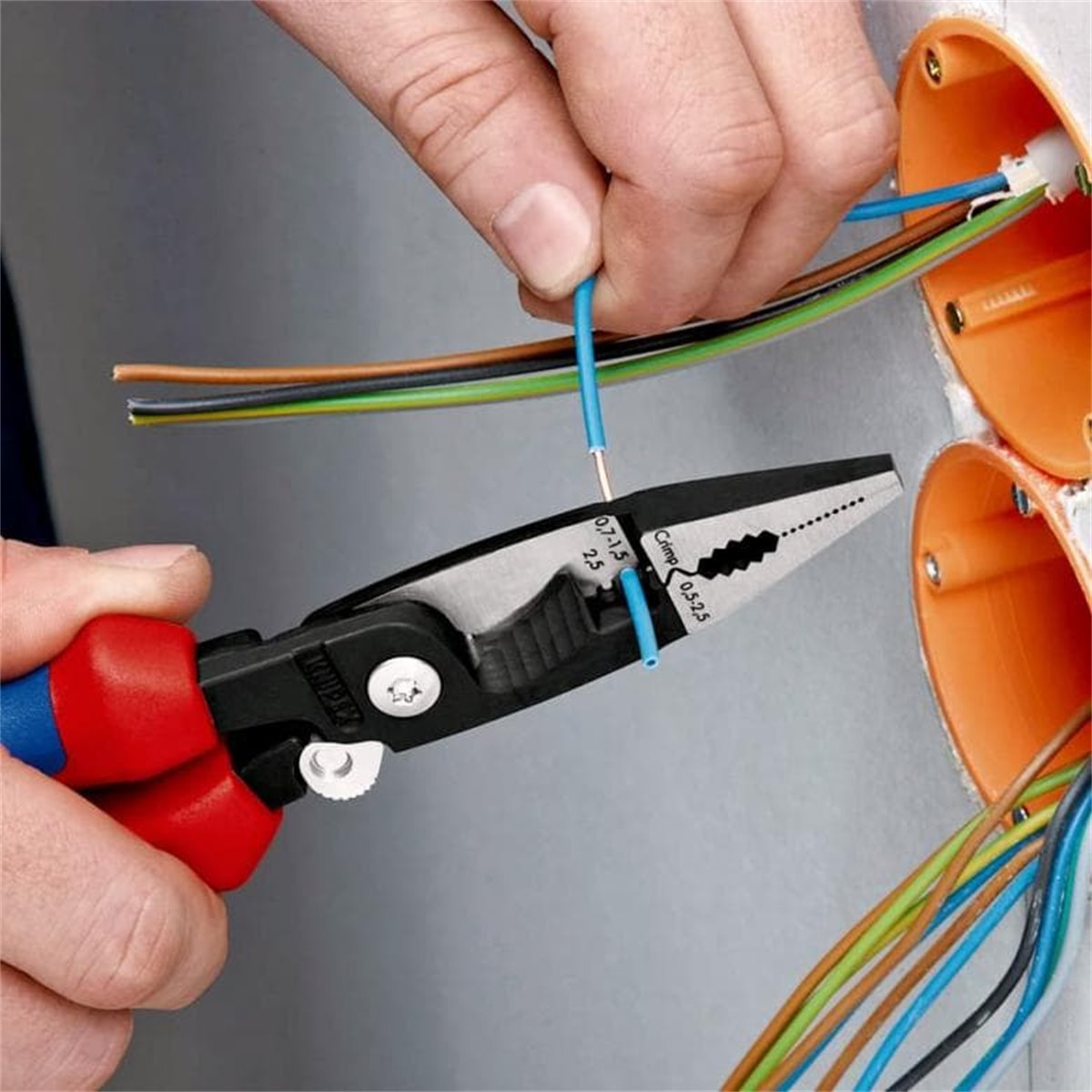

- Stripping holes for conductors of 0.7 - 1.5 mm² and 2.5 mm²

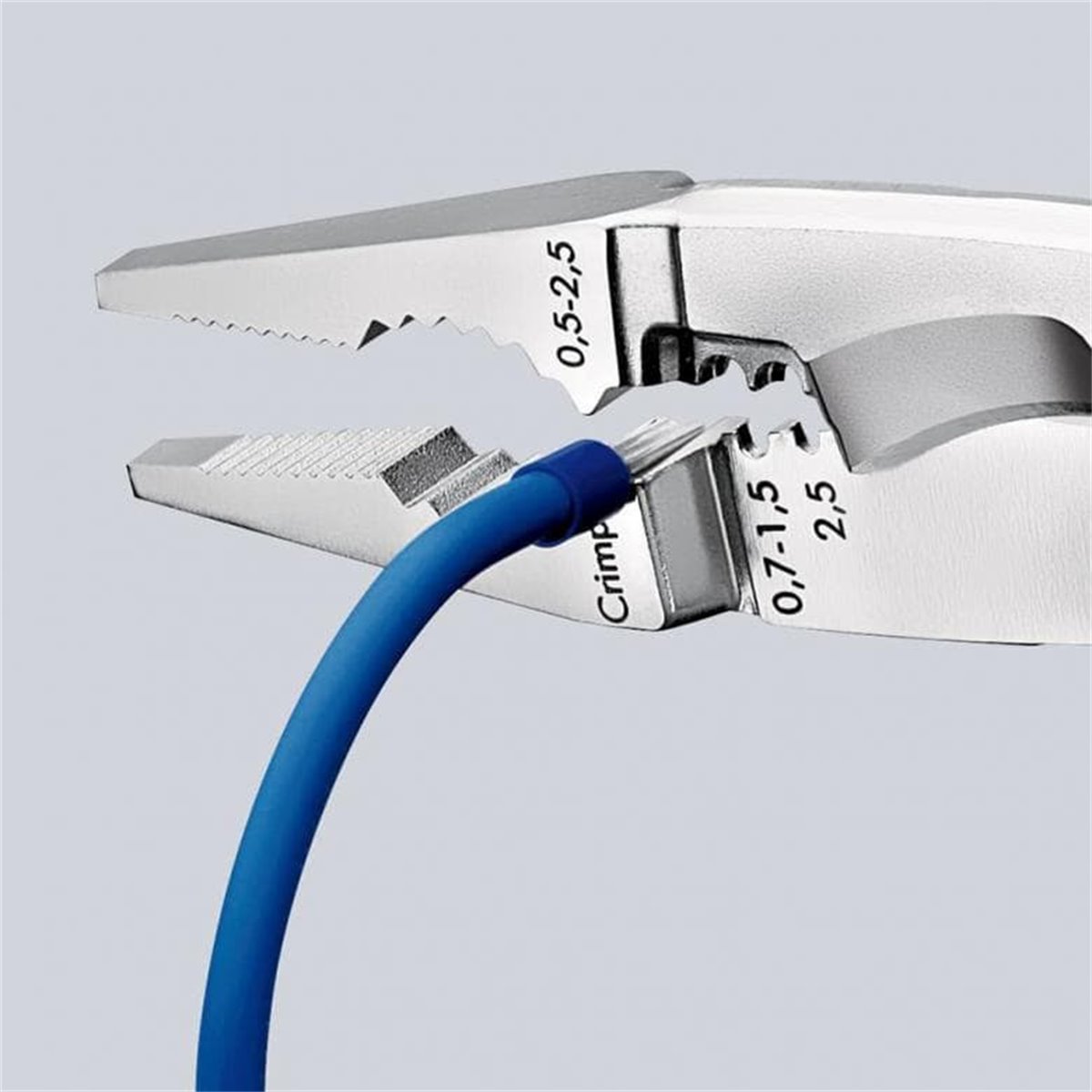

- Crimp die for wire-end ferrules 0.5 - 2.5 mm²

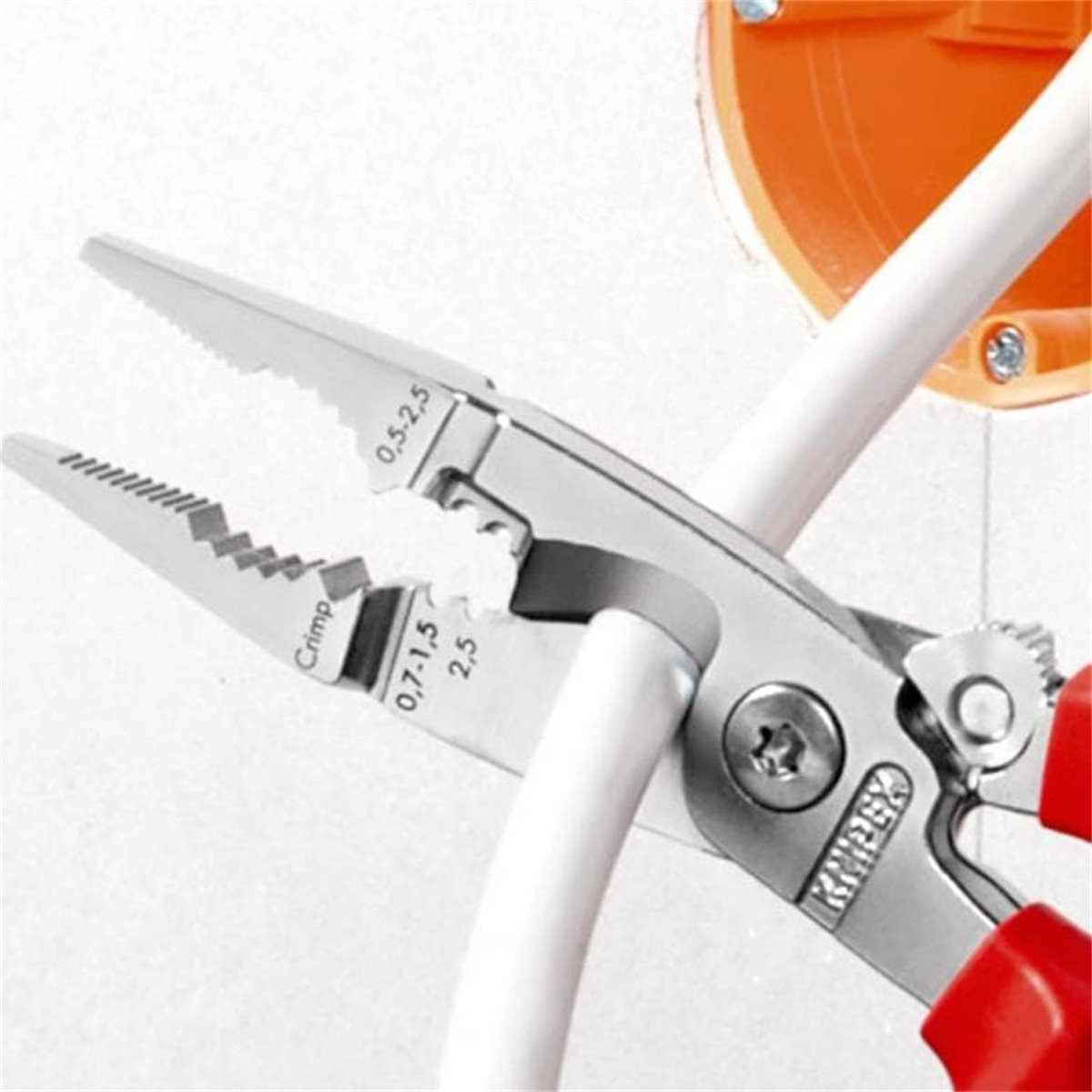

- Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / dia. 15 mm
- Gripping, without opening the pliers completely (intelligent latching mechanism in the spring assisted version). The cutting edge remains closed and protected
- Slim dimensions for easy access
- Bolted joint: precise, zero backlash operation of pliers
- High-grade special tool steel, forged, oil-hardened
Technical data:
- Pliers: black atramentized
- Head: polished
- Handles: plastic coated
- Cutting capacity copper cable, multiple-stranded (diameter): 15 Ø mm
- Cutting capacity copper cable, multiple-stranded: 50 mm²
- Capacity: 0,5 - 2,5 mm²
- Stripping capacity for cross-sections: 0,7 - 1,5 + 2,5 mm²
- AWG: 1/0
- Length: 200 mm
