Gedore 2 9x11 Double ended ring spanner offset 9x1 1 mm
€10.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
100096
Manufacturer no.:
6015860
EAN:
4010886601587
Weight in kg:
0.09

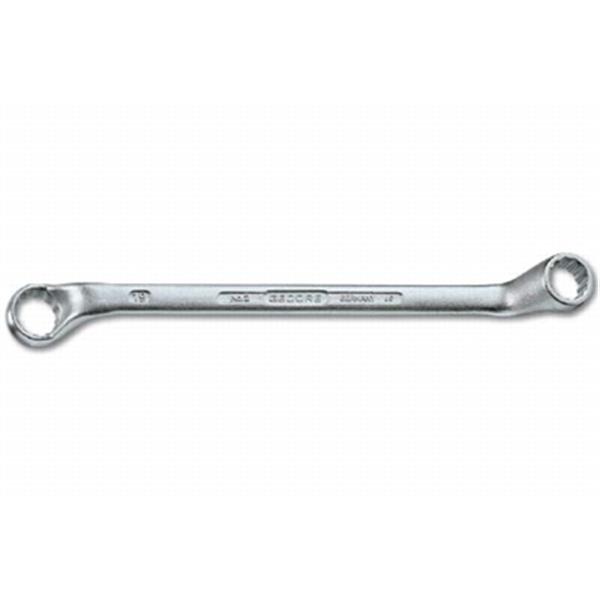

Product information "Gedore 2 9x11 Double ended ring spanner offset 9x1 1 mm"
Gedore 2 9X11 double ring spanner, UD profile, 9x11 mm
Gedore 2 9X11 double ring spanner, UD profile, 9x11 mm
Features:
- Acc. to DIN 838
- ISO 3318
- ISO 1085
- ISO 10104
- Rings deep offset
- strong but thin walls
- Vanadium steel 31CrV3
- chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined: Ring: thin-walled
- 5° deep offset from shaft
- with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded
- thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
Technical features:
- Width across flats 1 [mm]: 9
- Width across flats 2 [mm]: 11
- Net weight [kg]: 0,086 kg
- Width of head 1 [mm]: 14,4 mm
- Width of head 2 [mm]: 17,5 mm
- Total width [mm]: 18 mm
Gedore Code-Number: 6015860
EAN: 4010886601587
| Design/type: | angled, flat, offset, standard length |
|---|---|
| Size: | 9 x 11 mm |
| Spanner type: | Double ring spanner |
| Unit of measurement: | metric (mm) |
