Gedore 1.15/1 Puller 3-arm pattern 130x140 mm
€74.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
107364
Manufacturer no.:
8006190
EAN:
4036976104646
Weight in kg:
1.2
Product information "Gedore 1.15/1 Puller 3-arm pattern 130x140 mm "
Gedore 1.15/1 Puller 3-arm 130x140 mm
Gedore 1.15/1 Puller 3-arm 130x140 mm
Features:
- Tried and tested
- particularly strong design for removing discs
- wheels
- ball bearings etc.
- With technical and economical benefits due to the variable clamping reach and automatic grip of the legs
- Particularly suitable for pulling off V-belt pulleys and flywheels which are mounted on longer shafts
- Upgradeable with hydraulic spindle
Technical features:
- Number of arms: 3
- Tractive force (max.) [t]: 3
- Hydraulic spindle optional: -
- Net weight [kg]: 1,2 kg

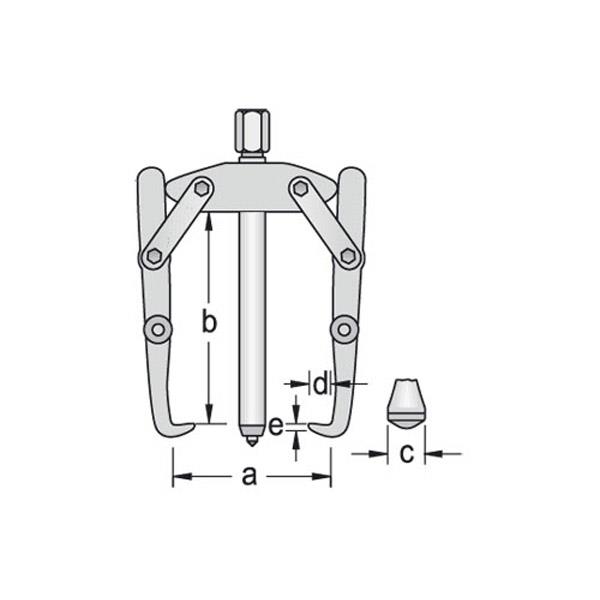

- Usable depth of hooked foot d2 [mm]: 11 mm
- Clamping width (max.) external pulling [mm]: 130 mm
Gedore Code-Number: 8006190
EAN: 4036976104646
