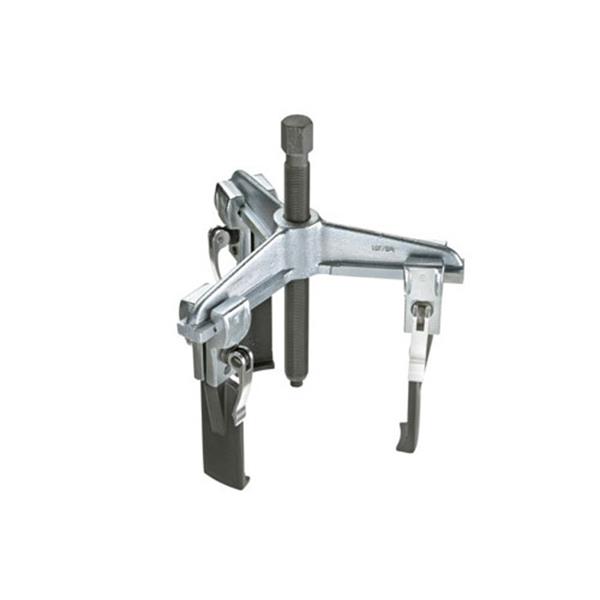

Gedore 1.07/S2A-E Quick-release puller, 3-arm patt ern, with slim legs 160x150 mm
€318.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1813435
Manufacturer no.:
2016060
EAN:
4036976123623
Weight in kg:
3.9
Product information "Gedore 1.07/S2A-E Quick-release puller, 3-arm patt ern, with slim legs 160x150 mm"
Gedore 1.07/S2A-E Quick-action puller 3-armed, with slim hooks 160x150 mm
Gedore 1.07/S2A-E Quick-action puller 3-armed, with slim hooks 160x150 mm
Features:
- Industrial quality
- 3 arms for optimum load distribution
- non-tilting and gentle on material
- Strong
- ergonomically shaped cross beam
- Hook red-hot drop-forged
- Self-supporting hooks with T-profile for a form-fit connection
- Slim forged hook feet
- Patented quick adjustment for simple
- safe setting and readjustment - without the use of tools
- Can be used as internal puller by repositioning the hooks
- Nitrocarburized spindle surface
- wear and corrosion resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit

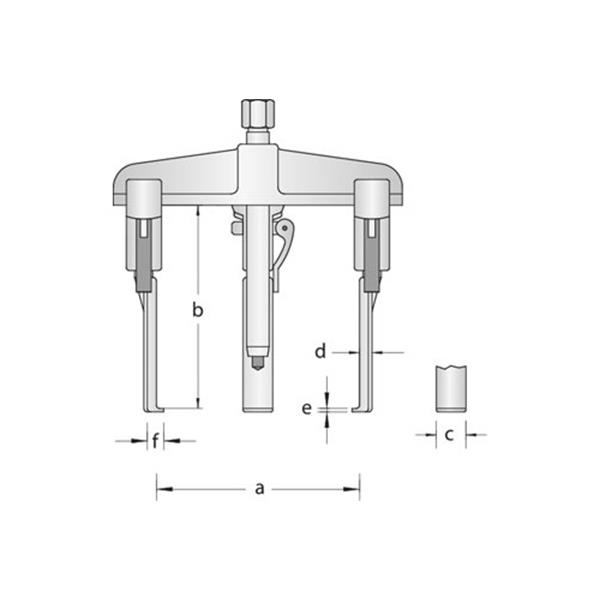

Technical features:
- Number of arms: 3
- Tractive force (max.) [t]: 5
- Hydraulic spindle optional: 1.06/HSP1
- Depth of hooked foot [mm] 3: 15 mm
- Usable clamping reach [mm]: 150 mm
- Clamping width (max.) external pulling [mm]: 200 mm
Gedore Code-Number: 2016060
EAN: 4036976123623
