Gedore 1.07/AS Puller set with 9 legs 130x100/200/ 250 mm
€432.00
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
107293
Manufacturer no.:
8117260
EAN:
4036976104127
Weight in kg:
4.92
Product information "Gedore 1.07/AS Puller set with 9 legs 130x100/200/ 250 mm"

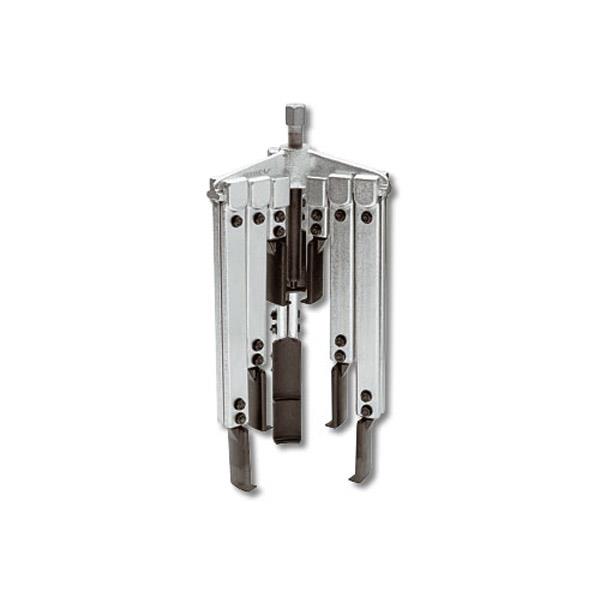

Gedore 1.07/AS Puller set with 9 hooks 130x100/200/250 mm
Gedore 1.07/AS Puller set with 9 hooks 130x100/200/250 mm
Features:
- 3-arm puller
- with 9 slim hooks in 3 lengths
- Particularly suitable for hard-to-reach areas
Technical features:
- Tractive force (max.) [t]: 2,50
- Hydraulic spindle optional: -
- Usable clamping reach: 100 / 200 / 250 mm
- Parts list: 107/1A03 Cross beam 3-arm 180 mm 06/A-100-S Pull-off hook slim 100 mm (3x) 06/A-200-S Pull-off hook slim 200 mm (3x) 06/A-250-S Pull-off hook slim 250 mm (3x) -1.1406140 Spindle 17, M14x1.5, 140 mm
- Depth of hooked foot [mm] 3: 13,5 mm
- Clamping width (max.) external pulling [mm]: 130 mm
Gedore Code-Number: 8117260
EAN: 4036976104127
