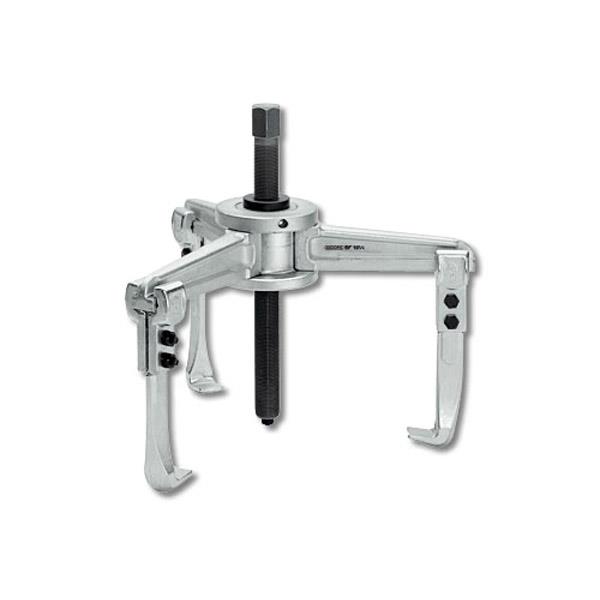

Gedore 1.07/4 Universal puller, 3-arm pattern 450x 200 mm
€945.95
Content:
1 pcs
/ 62
Please request delivery time
Variante
Product number:
107283
Manufacturer no.:
8002440
EAN:
4036976104318
Weight in kg:
18.8
Product information "Gedore 1.07/4 Universal puller, 3-arm pattern 450x 200 mm"
Gedore 1.07/4 Universal puller 3-arm 450x200 mm
Gedore 1.07/4 Universal puller 3-arm 450x200 mm
Features:
- Industrial quality
- 3 arms for optimum load distribution
- non-tilting and gentle on material
- Strong
- ergonomically shaped cross beam
- Hook red-hot drop-forged
- Pulling hook with proven screw connection for a frictional connection
- Can be used as internal puller by repositioning the hooks
- Nitrocarburized spindle surface
- wear and corrosion resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
Technical features:
- Number of arms: 3
- Tractive force (max.) [t]: 10
- Hydraulic spindle optional: 1.06/HSP3
- Clamping width (min.) external pulling [mm]: 150 mm
- Net weight [kg]: 18,8 kg
- Usable clamping reach [mm]: 200 mm
Gedore Code-Number: 8002440
EAN: 4036976104318
