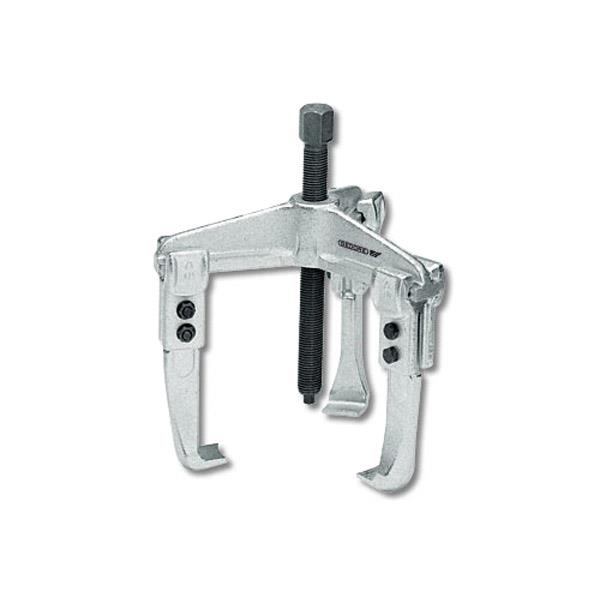

Gedore 1.07/3 Universal puller, 3-arm pattern 250x 200 mm
€413.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
107282
Manufacturer no.:
1541757
EAN:
4036976111408
Weight in kg:
9.3
Product information "Gedore 1.07/3 Universal puller, 3-arm pattern 250x 200 mm"
Gedore 1.07/3 Universal puller 3-arm 250x200 mm
Gedore 1.07/3 Universal puller 3-arm 250x200 mm
Features:
- Even load distribution over 3 legs ensures secure grip and balanced pull
- Strong
- ergonomically shaped cross beam
- Hook red-hot drop-forged
- Pulling hook with proven screw connection for a frictional connection
- Can be used as external and internal puller by repositioning the legs
- Nitrocarburized spindle surface
- wear and corrosion resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
- Interchangeable legs available for several clamping depths
Technical features:
- Typee of use: Internal and external pulling
- Number of arms: 3
- Tractive force (max.) [t]: 7,5
- Hydraulic spindle optional: 1.06/HSP2
- Clamping width a2 (min.) internal pulling [mm]: 100 mm
- Usable clamping reach [mm]: 200 mm
Gedore Code-Number: 1541757
EAN: 4036976111408
