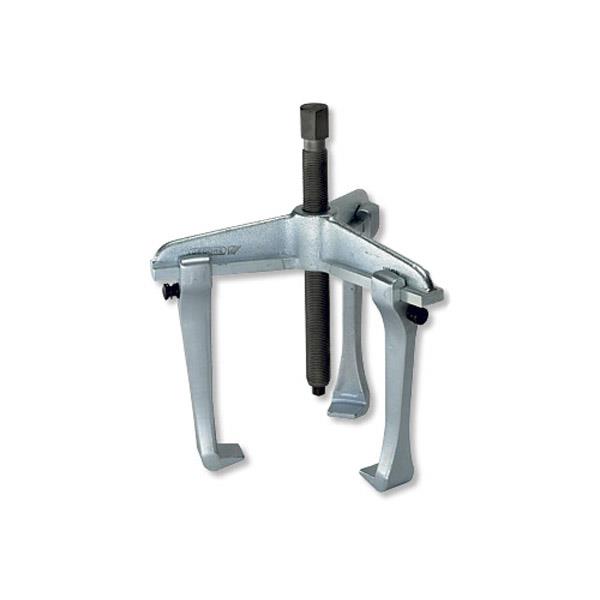

Gedore 1.07/21-B Universal puller, 3-arm pattern, rigid legs with leg brake 160x150 mm
€200.95
Content:
1 pcs
/ 62
Please request delivery time
Variante
Product number:
993532
Manufacturer no.:
1957961
EAN:
4036976121605
Weight in kg:
3.5
Product information "Gedore 1.07/21-B Universal puller, 3-arm pattern, rigid legs with leg brake 160x150 mm"
Gedore 1.07/21-B Universal puller, 3-arm, all-steel hook, 160x100mm
Gedore 1.07/21-B Universal puller, 3-arm, all-steel hook, 160x100mm
Features:
- Even load distribution over 3 legs ensures secure grip and balanced pull
- Pulling legs forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Interchangeable hooks available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Technical features:
- Typee of use: Internal and external pulling
- Number of arms: 3
- Tractive force (max.) [t]: 5
- Hydraulic spindle optional: 1.06/HSP1

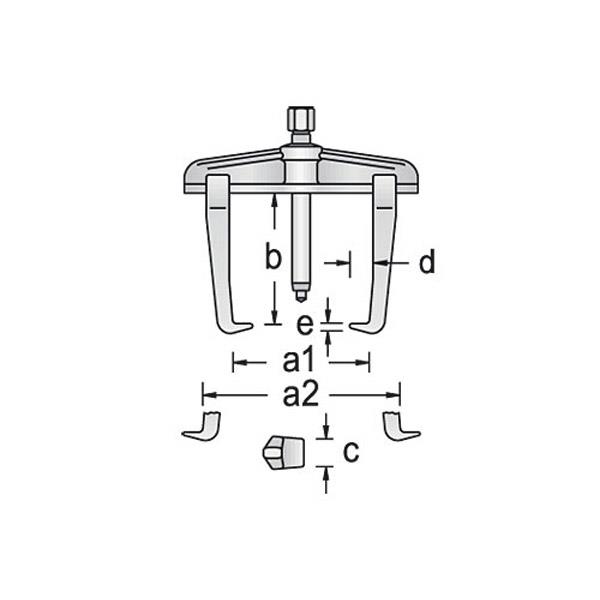

- Clamping width a2 (min.) internal pulling [mm]: 100 mm
- Usable clamping reach [mm]: 150 mm
Gedore Code-Number: 1957961
EAN: 4036976121605
