Gedore 1.07/1 Universal puller, 3-arm pattern 90x1 00 mm
€106.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1859110
Manufacturer no.:
8113940
EAN:
4036976103861
Weight in kg:
1.4
Product information "Gedore 1.07/1 Universal puller, 3-arm pattern 90x1 00 mm"

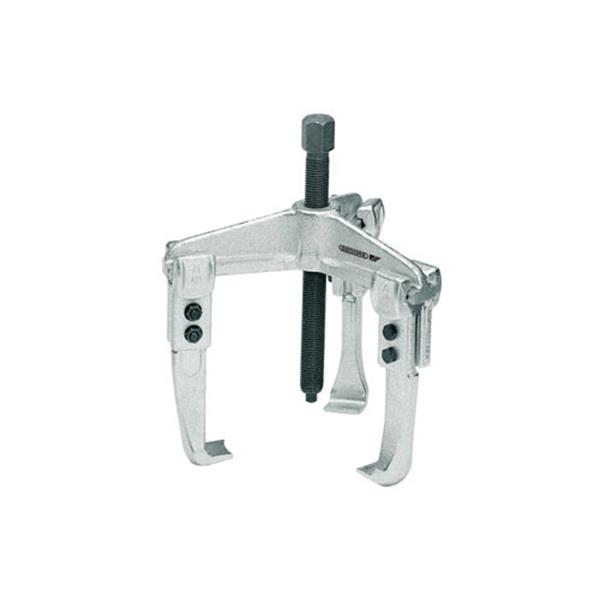

Gedore 1.07/1 Universal puller 3-arm 90x100 mm
Gedore 1.07/1 Universal puller 3-arm 90x100 mm
Features:
- Even load distribution over 3 legs ensures secure grip and balanced pull
- Strong
- ergonomically shaped cross beam
- Hook red-hot drop-forged
- Pulling hook with proven screw connection for a frictional connection
- Can be used as external and internal puller by repositioning the legs
- Nitrocarburized spindle surface
- wear and corrosion resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
- Interchangeable legs available for several clamping depths
Technical features:
- Typee of use: Internal and external pulling
- Number of arms: 3
- Tractive force (max.) [t]: 3
- Hydraulic spindle optional: -
- Net weight [kg]: 1,4 kg
- Usable clamping reach [mm]: 100 mm
Gedore Code-Number: 8113940
EAN: 4036976103861
