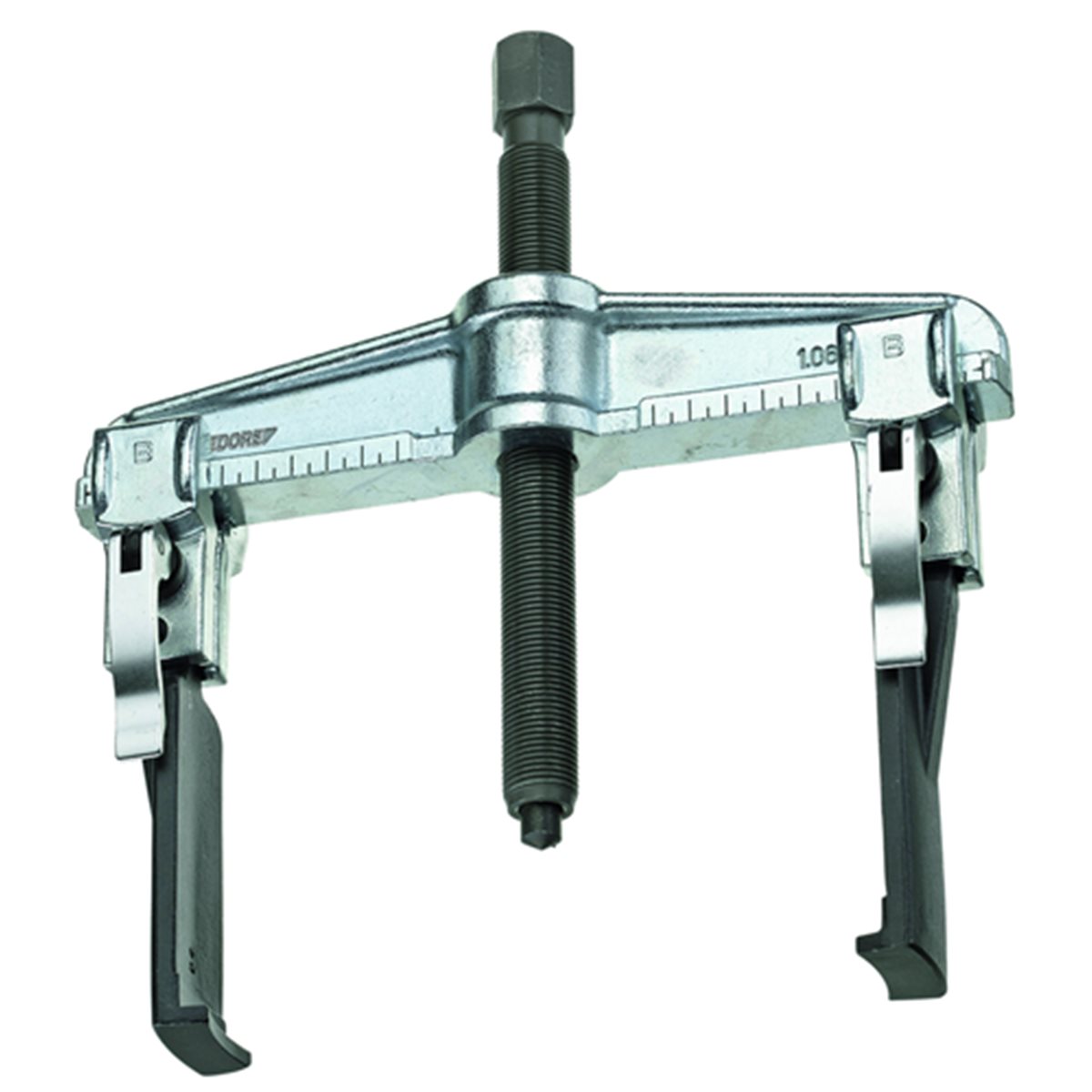

Gedore 1.06/S2A-E Quick-release puller, 2-arm patt ern, with slim legs 200x150 mm
€200.95
Content:
1 pcs
/ 62
Please request delivery time
Product number:
1813421
Manufacturer no.:
2015730
EAN:
4036976123487
Weight in kg:
3.63
Product information "Gedore 1.06/S2A-E Quick-release puller, 2-arm patt ern, with slim legs 200x150 mm"
Gedore 1.06/S2A-E Quick-action puller 2-arm, with slim hooks 200x150 mm
Gedore 1.06/S2A-E Quick-action puller 2-arm, with slim hooks 200x150 mm
Features:
- The forged leg feet are very slim
- Particularly suitable for barely accessible places
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Quick release legs for fast
- easy set-up and adjustment
Technical features:
- Number of arms: 2
- Tractive force (max.) [t]: 5
- Hydraulic spindle optional: 1.06/HSP1
- Depth of hooked foot [mm] 3: 15 mm
- Usable clamping reach [mm]: 150 mm
- Clamping width (max.) external pulling [mm]: 200 mm
Gedore Code-Number: 2015730
EAN: 4036976123487
