Gedore 1.06/3 Universal puller, 2-arm pattern 250x 200 mm
€236.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
107179
Manufacturer no.:
8000740
EAN:
4036976104202
Weight in kg:
7.2
Product information "Gedore 1.06/3 Universal puller, 2-arm pattern 250x 200 mm"

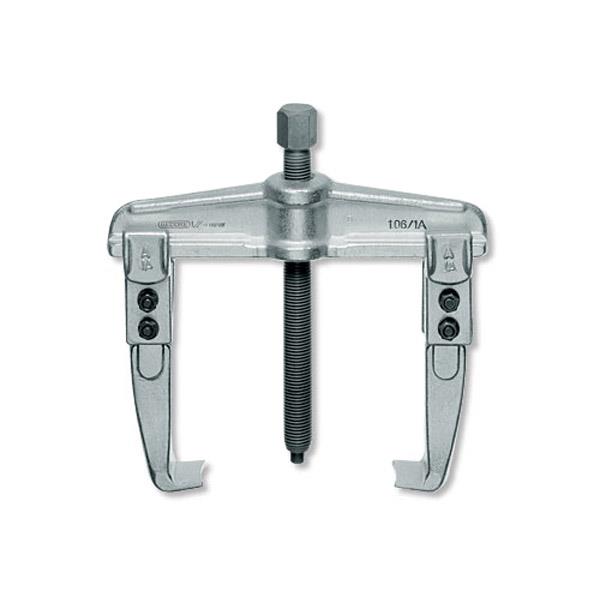

Gedore 1.06/3 Universal puller, 2-arm, 250x200 mm
Gedore 1.06/3 Universal puller, 2-arm, 250x200 mm
Features:
- Proven model for safe and fast removal of discs
- wheels
- ball bearings etc.
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
- Upgradeable with hydraulic spindle (see table)
Technical features:
- Typee of use: Internal and external pulling
- Number of arms: 2
- Tractive force (max.) [t]: 7,5
- Hydraulic spindle optional: 1.06/HSP2

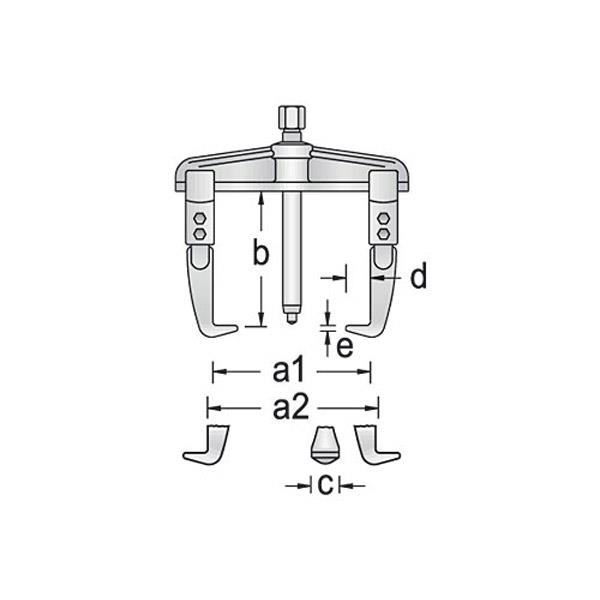

- Clamping width a2 (min.) internal pulling [mm]: 125 mm
- Usable clamping reach [mm]: 200 mm
Gedore Code-Number: 8000740
EAN: 4036976104202
