Gedore 1.06/2A-E Quick-release puller, 2-arm patte rn 200x150 mm
€176.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
107266
Manufacturer no.:
1217720
EAN:
4036976106282
Weight in kg:
3.5
Product information "Gedore 1.06/2A-E Quick-release puller, 2-arm patte rn 200x150 mm"

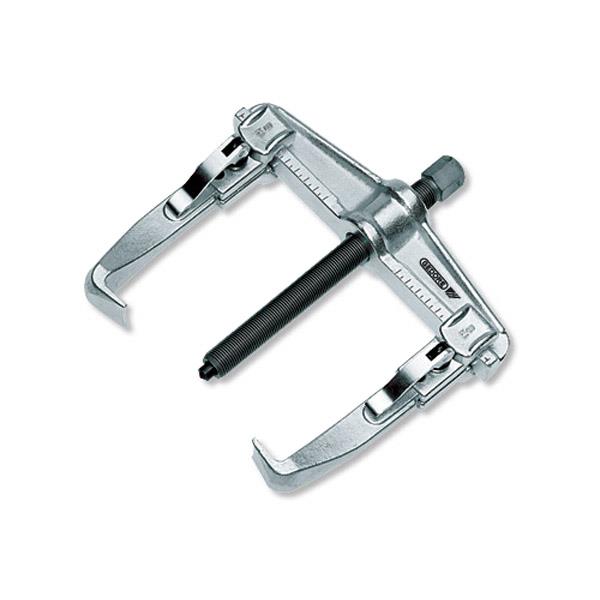

Gedore 1.06/2A-E Quick-release puller, 2-arm, 200x150 mm
Gedore 1.06/2A-E Quick-release puller, 2-arm, 200x150 mm
Features:
- Proven model for safe and fast removal of discs
- wheels
- ball bearings etc.
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Can be used as external and internal puller by repositioning the legs
- Exchangeable hooks for several clamping depths available as accessories
- Quick release legs for fast
- easy set-up and adjustment
- Upgradeable with hydraulic spindle (see table)
Technical features:

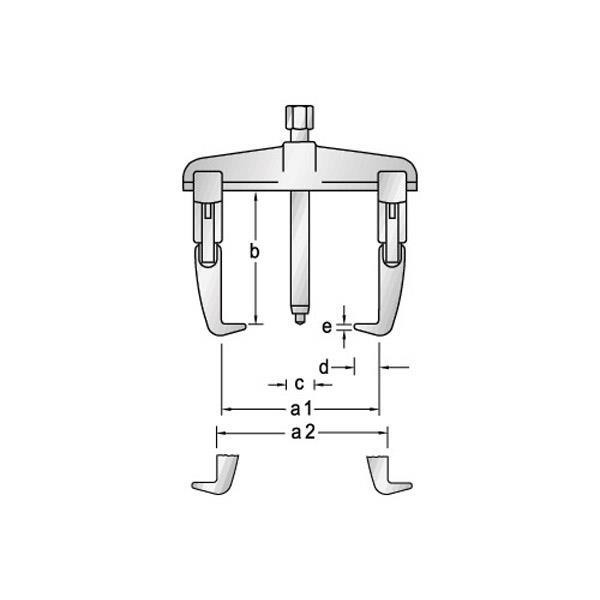

- Number of arms: 2
- Tractive force (max.) [t]: 5
- Hydraulic spindle optional: 1.06/HSP1
- Usable clamping reach [mm]: 150 mm
- Usable depth of hooked foot d2 [mm]: 18 mm
- Clamping width (max.) external pulling [mm]: 200 mm
Gedore Code-Number: 1217720
EAN: 4036976106282
