Gedore 1 B 1.1/8AF Combination spanner 1.1/8"
€39.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
100051
Manufacturer no.:
6006790
EAN:
4010886600672
Weight in kg:
0.59

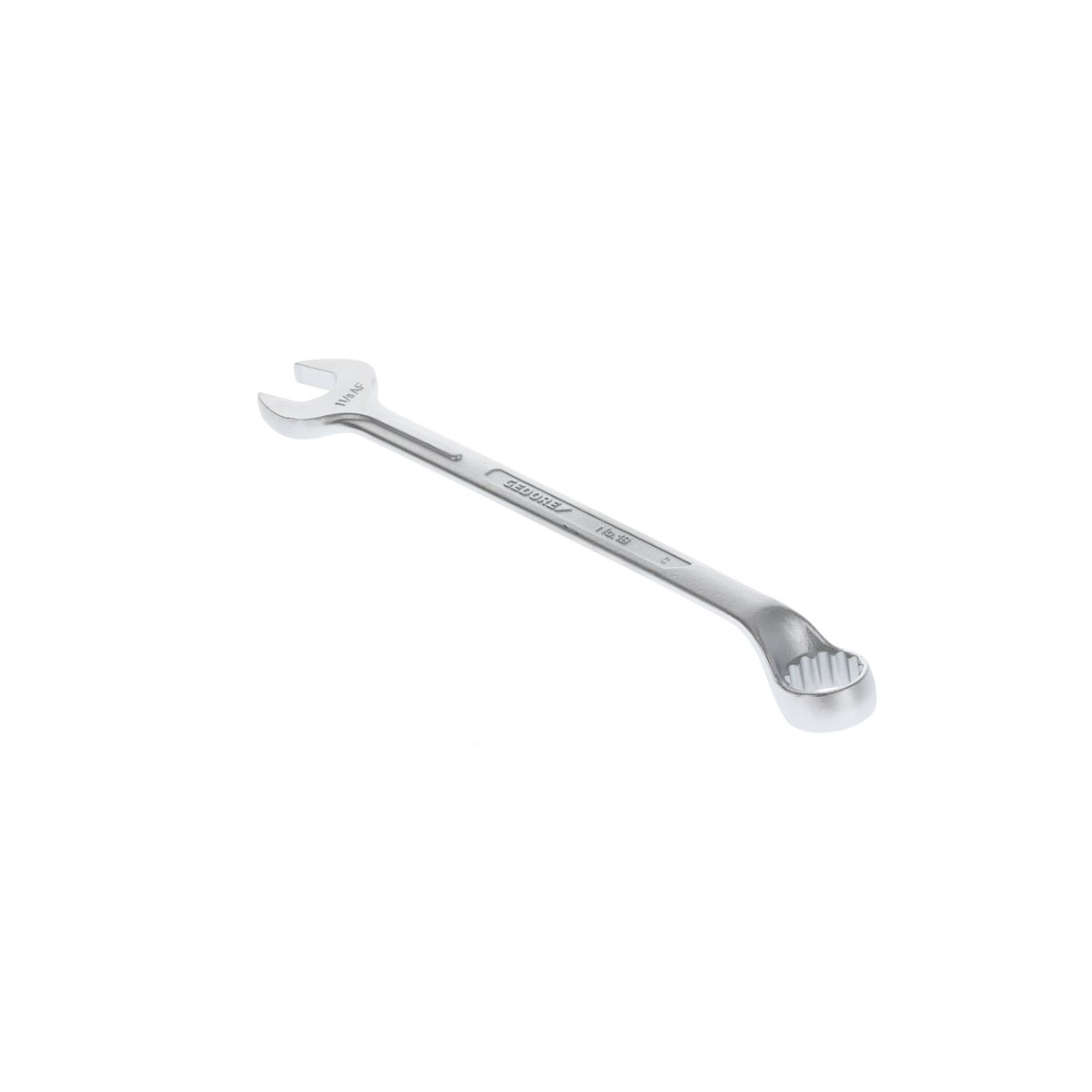

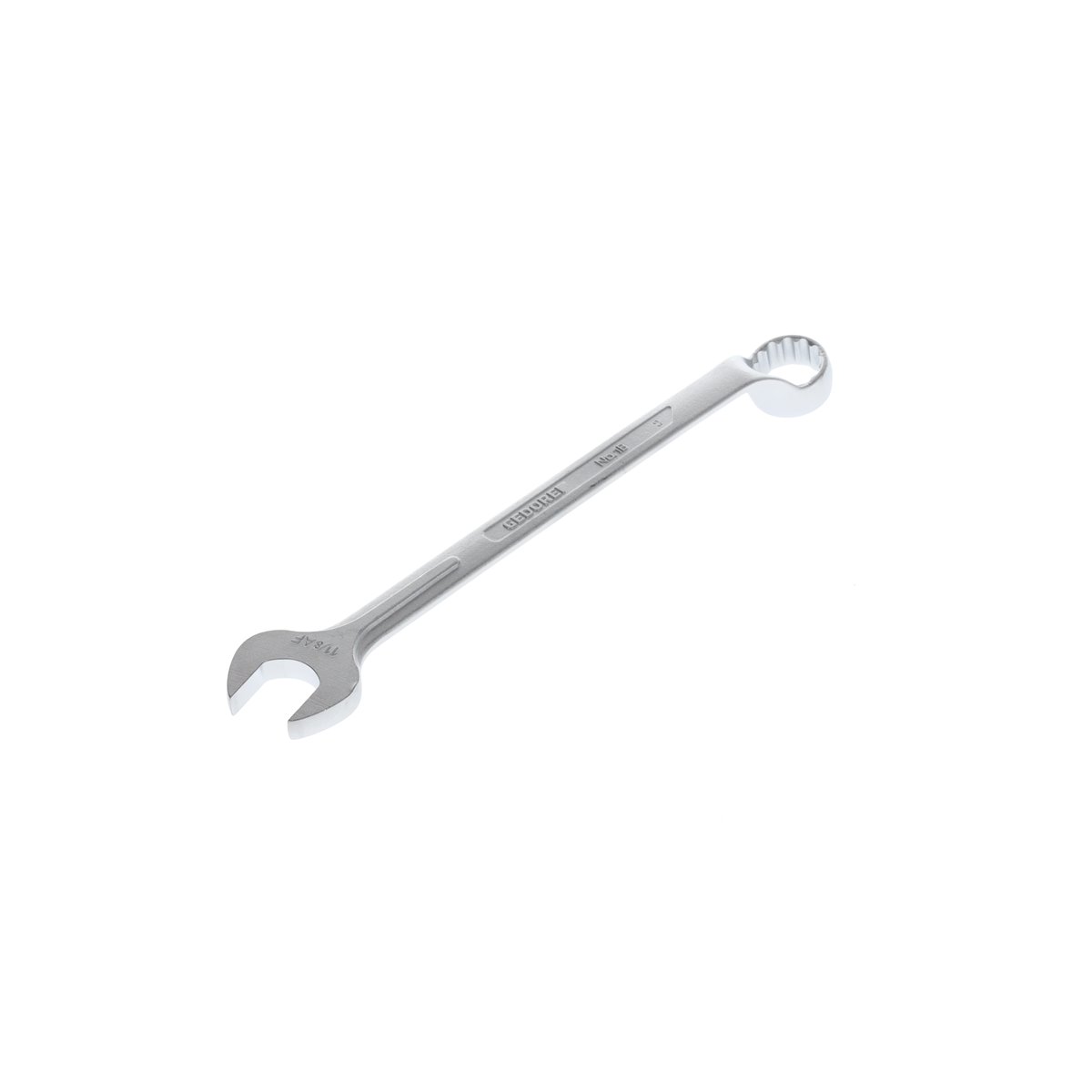

Product information "Gedore 1 B 1.1/8AF Combination spanner 1.1/8" "
Gedore 1 B 1.1/8AF Combination spanner UD profile 1.1/8
Gedore 1 B 1.1/8AF Combination spanner UD profile 1.1/8
Features:
- Design in accordance with DIN 3113
- form B
- ISO 3318
- ISO 7738
- With same size each end
- Chrome-vanadium steel 31CrV3
- chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined
- Ring: cranked and 10° angled
- with UD profile for gentle power transmission
- from SW 1.3/8 12-edge ring
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Slim ribbed open end for added strength guarantees maximum torques
- Overloading indicated by deformation
- The offset ring ensures a better grip on deep-seated or inset nuts or bolts
- Top-grade industrial quality for the hardest of continuous use
Technical features:
- Net weight [kg]: 0,587 kg
- Weight: 1,290 lbs
- Width across flats 1 [AF]: 1.1/8 Ring offset
- Head height 2 [mm]
- Mouth position 1
- image/jpeg
Gedore Code-Number: 6006790
EAN: 4010886600672
| Design/type: | offset, standard length |
|---|---|
| Size: | 1 1/8" |
| Spanner type: | Combination spanner |
| Unit of measurement: | Zoll ("AF) |
