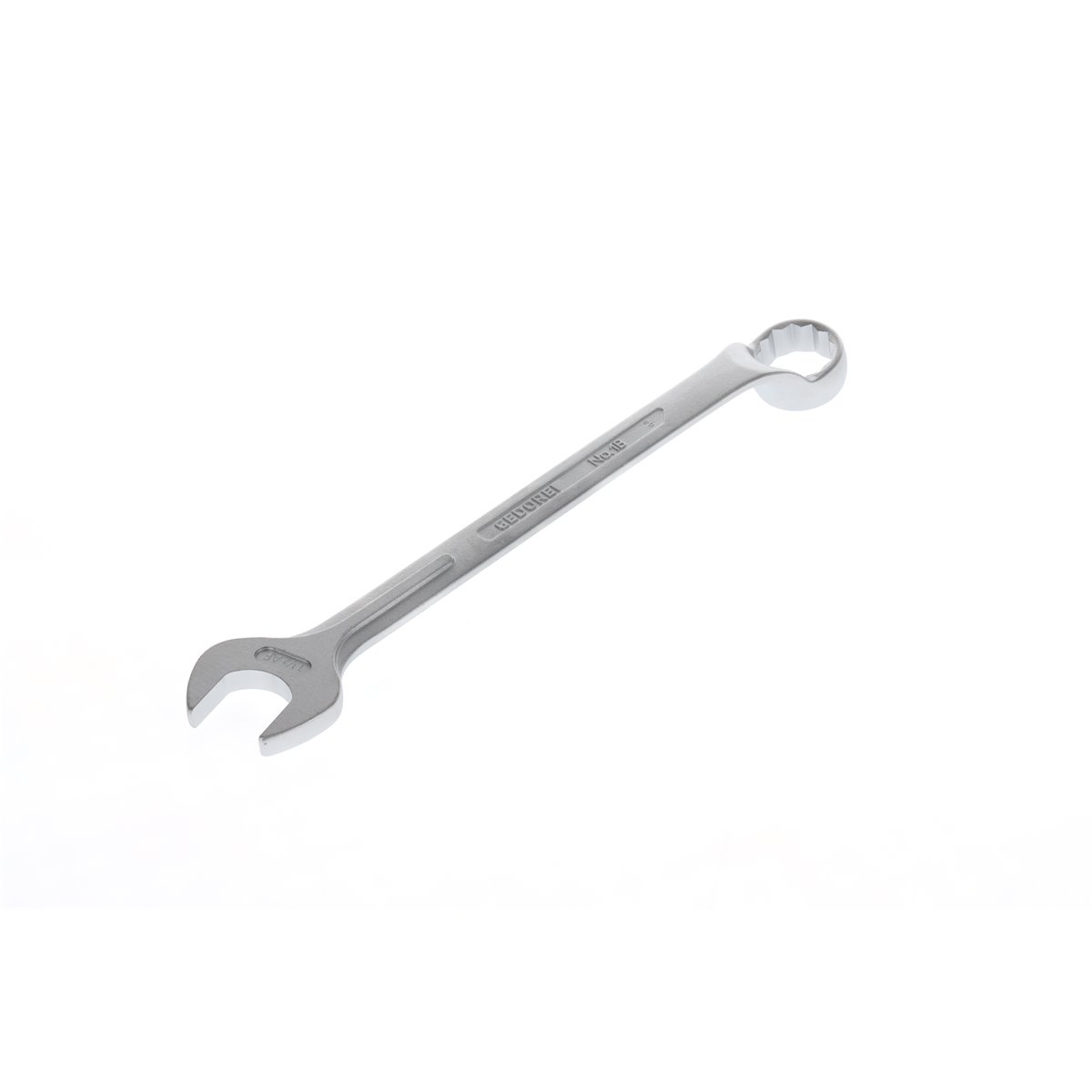

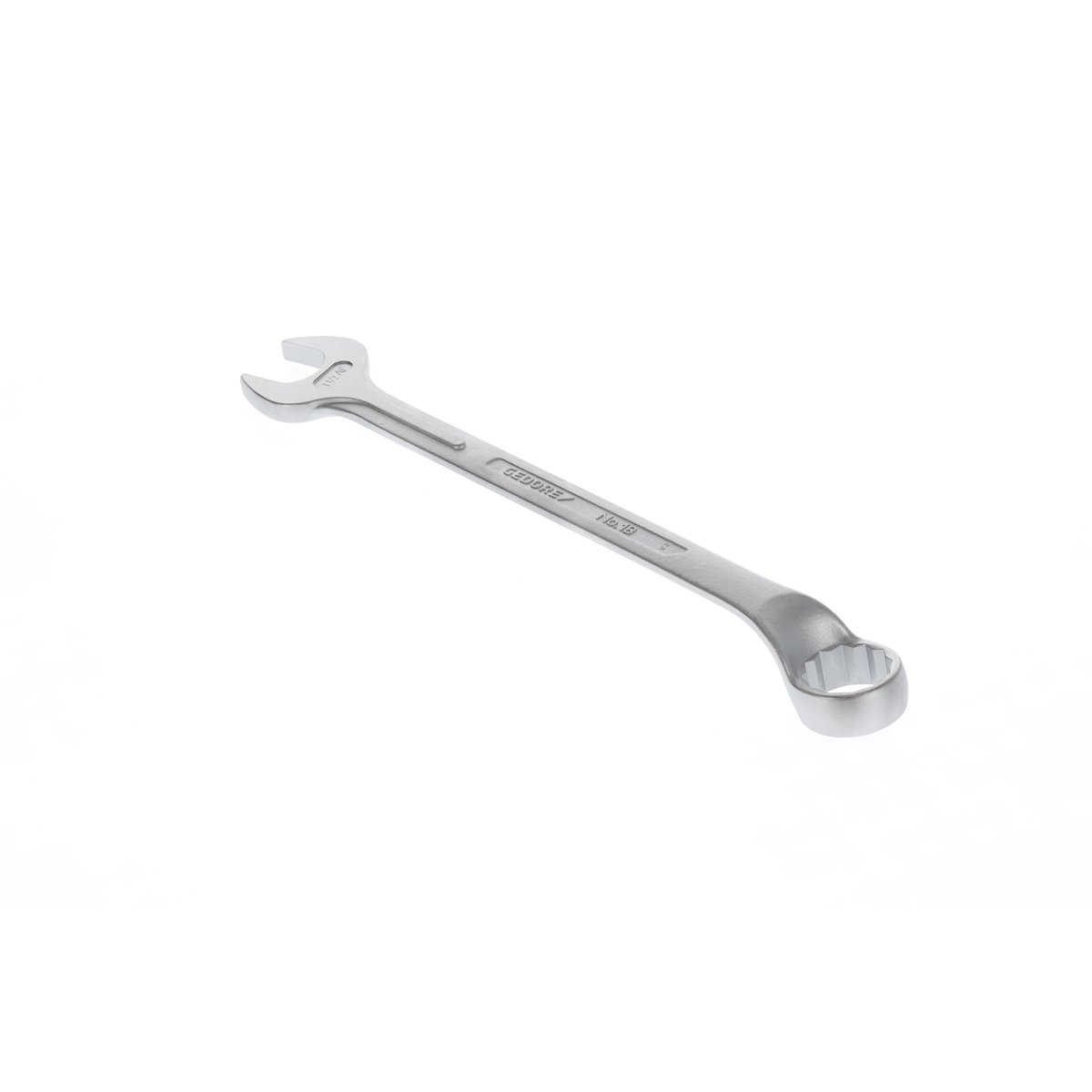

Gedore 1 B 1.1/2AF Combination spanner 1.1/2"
€83.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
100056
Manufacturer no.:
6007250
EAN:
4010886600726
Weight in kg:
1.11
Product information "Gedore 1 B 1.1/2AF Combination spanner 1.1/2" "
Gedore 1 B 1.1/2AF Combination spanner, 12-point 1.1/2."
Gedore 1 B 1.1/2AF Combination spanner, 12-point 1.1/2."
Features:
- Design in accordance with DIN 3113
- form B
- ISO 3318
- ISO 7738
- With same size each end
- Chrome-vanadium steel 31CrV3
- chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined
- Ring: cranked and 10° angled
- with UD profile for gentle power transmission
- from SW 1.3/8 12-edge ring
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Slim ribbed open end for added strength guarantees maximum torques
- Overloading indicated by deformation
- The offset ring ensures a better grip on deep-seated or inset nuts or bolts
- Top-grade industrial quality for the hardest of continuous use"
Technical features:
- Net weight [kg]: 1,113 kg
- Width across flats 1 [AF]: 1.1/2
- Ring offset: 10°
- Head height 2 [mm]: 13,2 mm
- Mouth position 1: 15°
- Weight: 2,450 lbs
Gedore Code-Number: 6007250
EAN: 4010886600726
| Design/type: | offset, standard length |
|---|---|
| Size: | 1 1/2" |
| Spanner type: | Combination spanner |
| Unit of measurement: | Zoll ("AF) |
