BGS 9784 Floor Jack, hydraulic, extra flat, 2.5 t
Product number:
1973211
Manufacturer no.:
9784
EAN:
4026947097848
Weight in kg:
32.8
Product information "BGS 9784 Floor Jack, hydraulic, extra flat, 2.5 t "

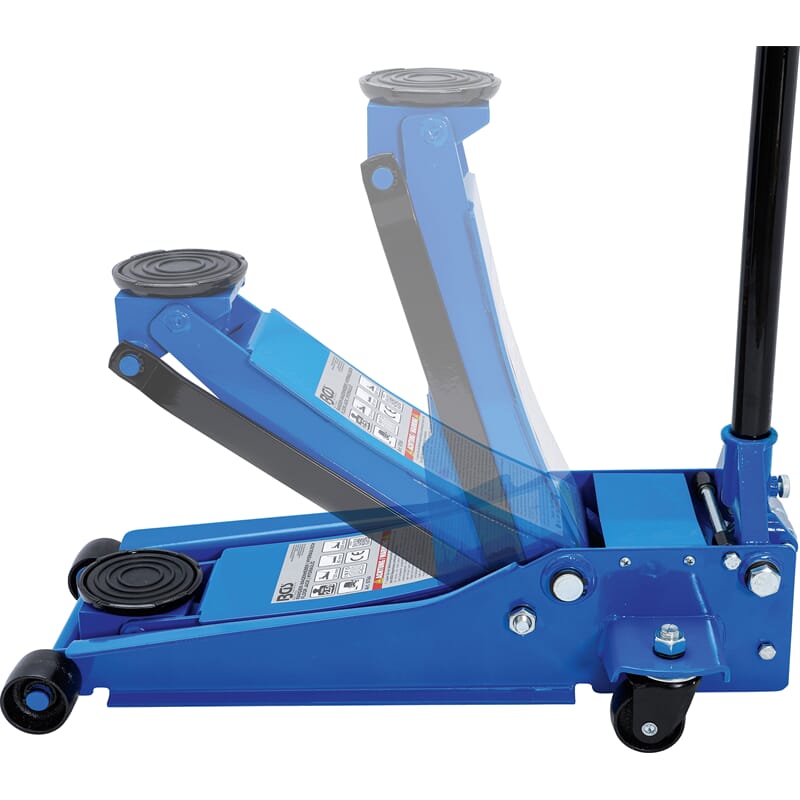

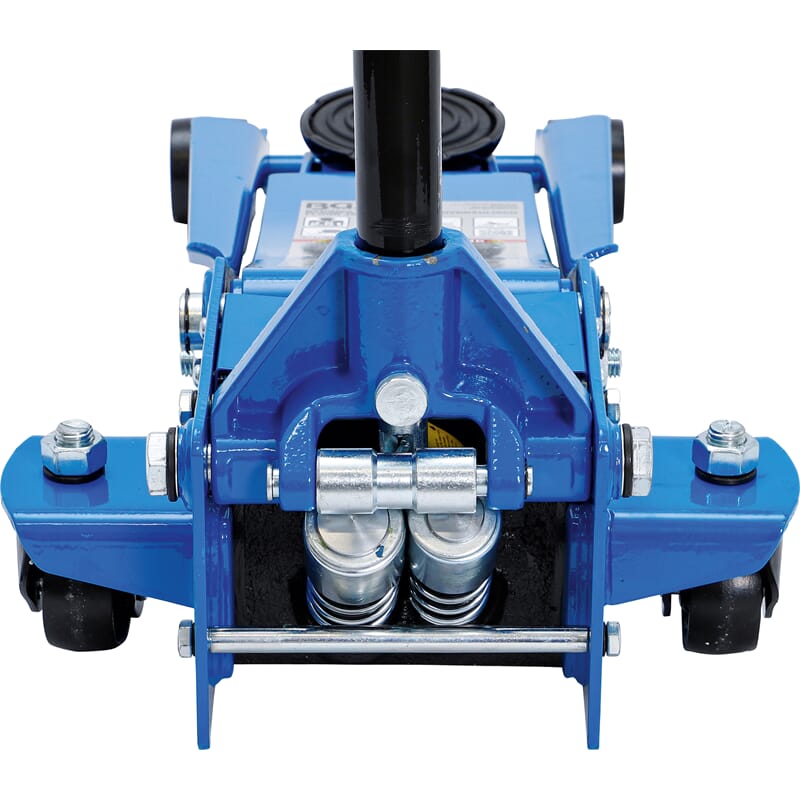

BGS 9784 Floor Jack, hydraulic, extra flat, 2.5 t
Features:
- BGS 9784 Floor Jack, hydraulic, extra flat, 2.5 t
- steel construction
- easy to manoeuvre and transport
- low height clearance, especially suitable for lowered racing cars
- lifting height (rated load): 360 - 508 mm
- overall dimension (lowest position): 720 x 326 x 150 mm
- front wheel dimensions: Ø 60 x 43 mm
- rear wheel dimensions: Ø 60 x 30 mm
- lever dimensions: Ø 32 x 610 x 2.5 mm / Ø 32 x 615 x 1.5 mm
- lever total length: 1173 mm
- lifting pad diameter: 110 mm
- lifting beam thickness: 5 mm
- side plate thickness: 5 mm
- diameter of pump piston shaft: Ø 22 / Ø 15 mm
- diameter of working piston shaft: Ø 30 mm
Technical features:
- Gross weight: 32800 g
- Rated load capacity: 2,5 t
- Min. height: 80 mm
- Max. height: 508 mm
- Weight: 31,5 kg
- EAN: 4026947097848
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
BGS technic KG
Bandwirkerstraße 3
42929 Wermelskirchen
Germany
mail@bgs-technic.de

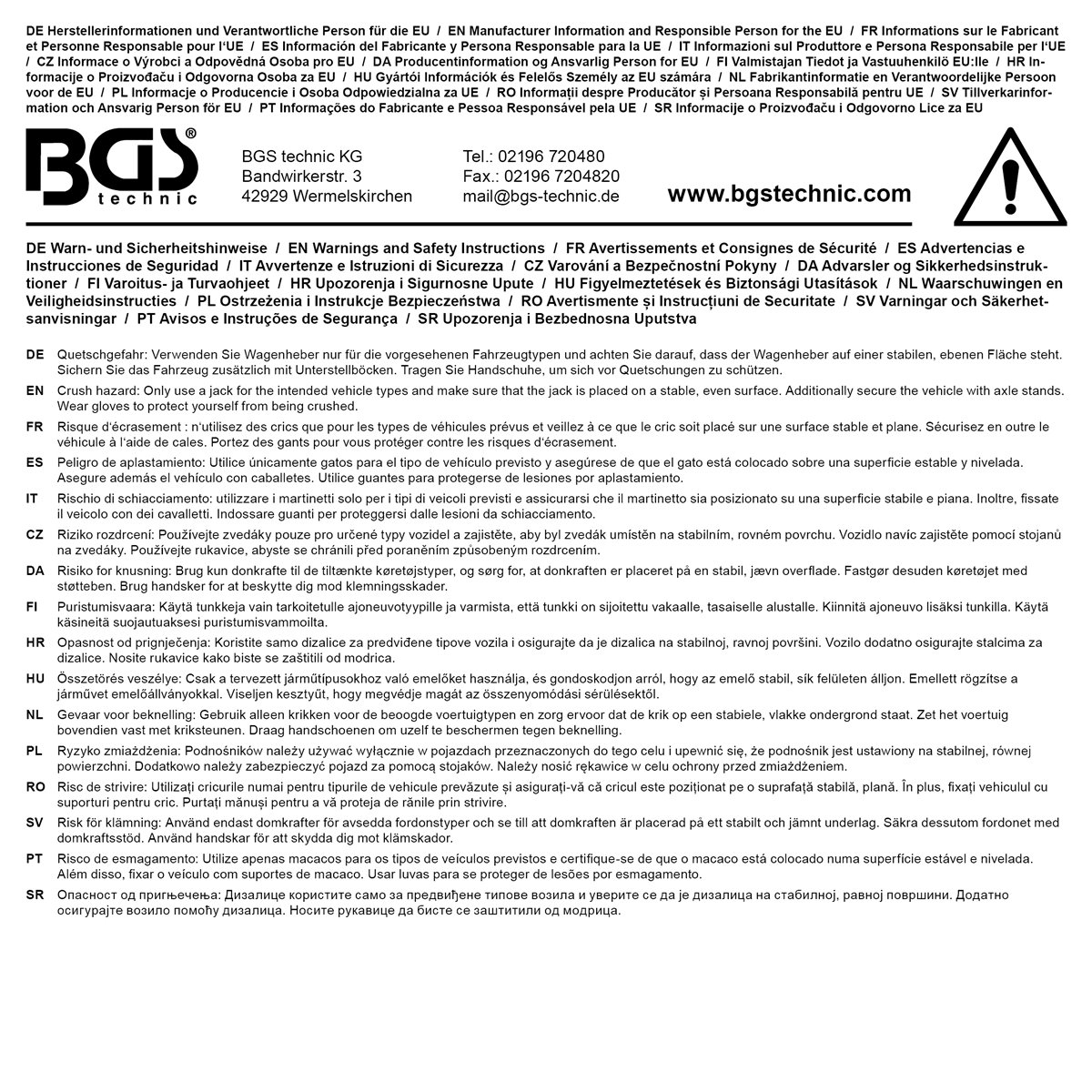

Safety information
- Warnings and Safety Instructions
