BGS 8579 Silent Block Tool Set, for BMW



Features:

• BGS 8579 Silent Block Tool Set, for BMW

• disassembly / assembly of the ball joints in rear wheel carrier, suitable for the following BMW models:
• 5-series E39 / E60 / E61 / E70
• 6-series E63 / E64
• 7-series E38 / E65 / E66 / E67
• 8-series E52



disassembly / assembly of the ball joints and rubber bearings in the trailing arm, suitable for the following BMW models:3-series E36 / E46 / E835-series E39 / E60 / E61 / E706-series E63 / E647-series E38 / E65 / E66 / E678-series E31 / E52Z4-models E85 / E86

disassembly / assembly of the rubber bush in rear axle carrier (bottom), rear transmission screw, suitable for the following BMW models:3-series E36 / E46 / E838-series E31Z4-models E85 / E86

disassembly / assembly of the rubber bearings in the rear transmission suspension front and rear, suitable for the following BMW models:1-series E81 / E873-series E36 / E46 / E83 / E90 / E91 / E92 / E935-series E60 / E616-series E63 / E647-series E38 / E65 / E66 / E678-series E31Z4-models E85 / E86MINI Cooper S R53

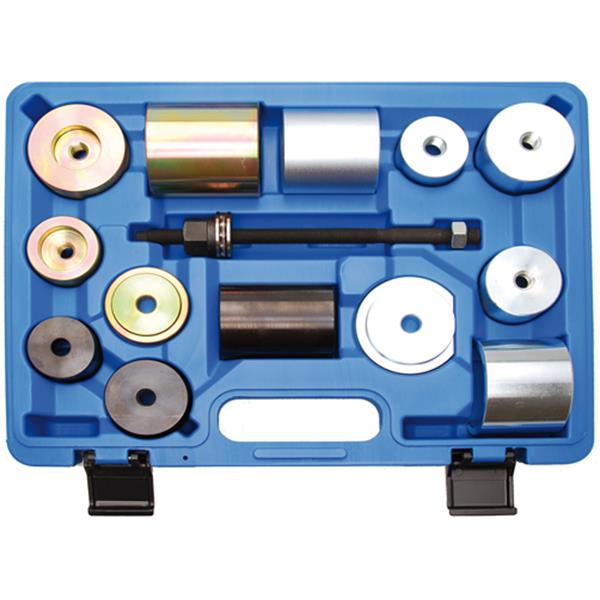

Scope of delivery:

spindle M12 x 1.5 with bearing nut, length: 225 mm24 mm hexagon drive socketdisc, 48, 55, 65 mmbell, inner Ø: 47 mm, outer Ø: 55 mm, length: 72 mmbell, inner Ø: 50 mm, outer Ø: 64 mm, length: 70 mmbell, stepped, inner Ø: 36, 40 mm, outer Ø: 45 mm, length: 30 mmbell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 43 mmbell, stepped, inner Ø: 47, 53 mm, outer Ø: 58 mm, length: 61 mmbell, inner Ø: 32 mm, outer Ø: 46 mm, length: 26 mmbell, inner Ø: 46 mm, outer Ø: 55 mm, length: 32 mmbell, inner Ø: 47 mm, outer Ø: 51 mm, length: 35 mmbell, flattened, inner Ø: 47 mm, outer Ø: 55 mm, length: 32 mmdisc, stepped, flattened, inner Ø: 57 mm, outer Ø: 70 mm, thickness: 13 mmsleeve, 1/3 open, inner Ø: 59 mm, outer Ø: 70 mm, length: 55 mm

Technical features:

• Gross weight: 6820 g
• EAN: 4026947085791
