BGS 74512 Pneumatic Injector Extractor Set

€284.00

Stk

Product number: 1993678

Manufacturer no.: 74512

EAN: 4048769084790

Weight in kg: 6.349

Product information "BGS 74512 Pneumatic Injector Extractor Set "

BGS 74512 Pneumatic Injector Extractor Set

Features:

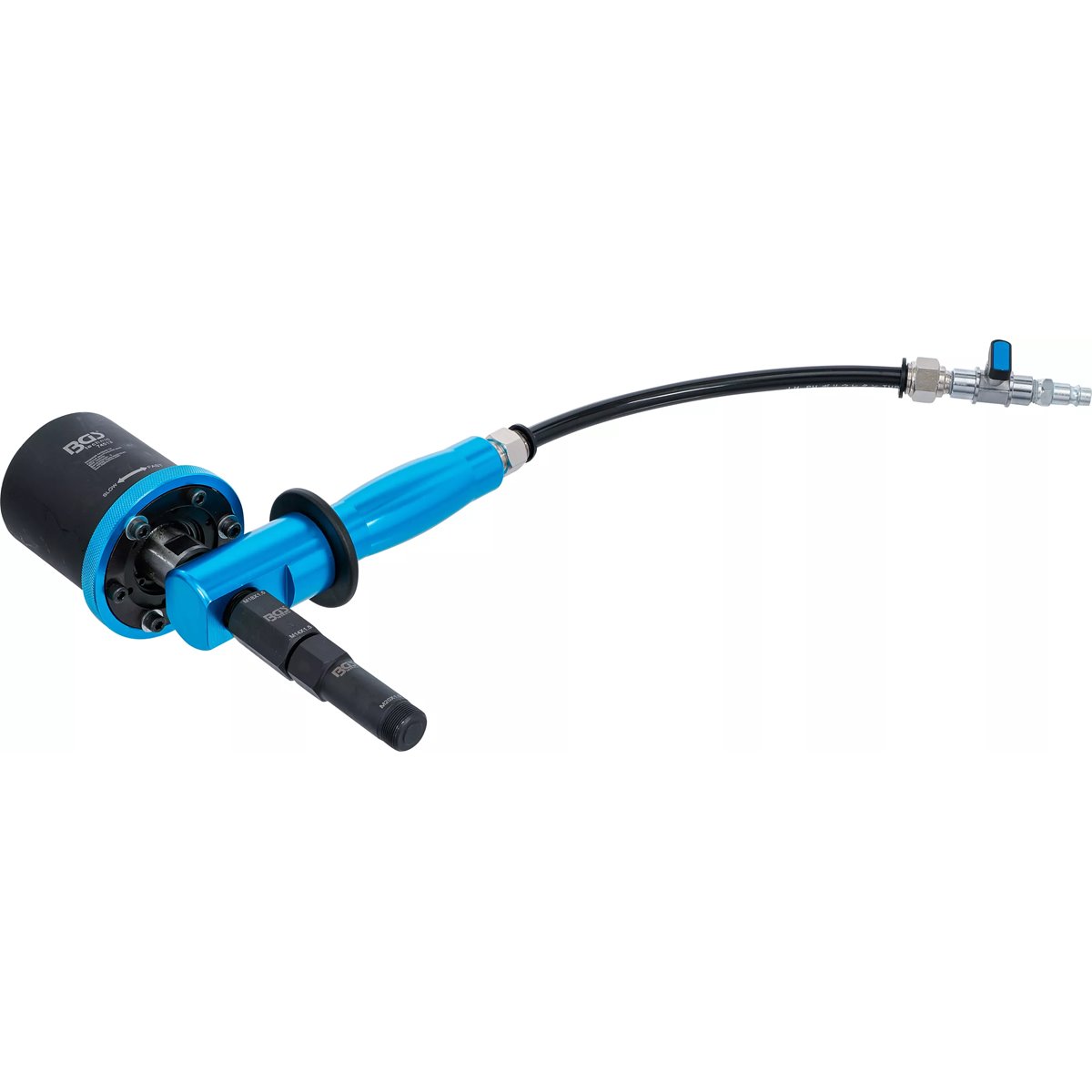

Pneumatic Injector Extractor Set
for compressed air-assisted removal of particularly tight diesel injectors

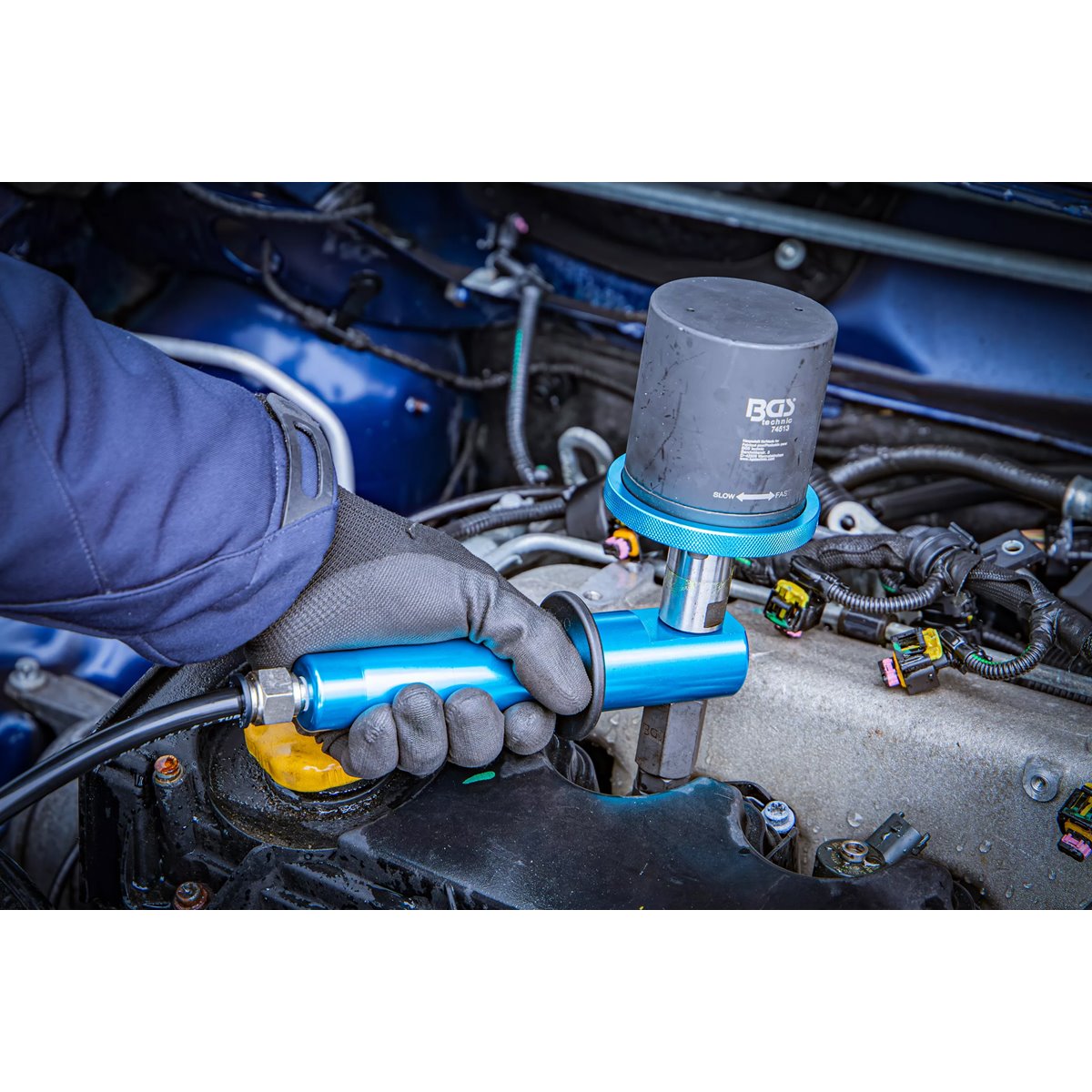

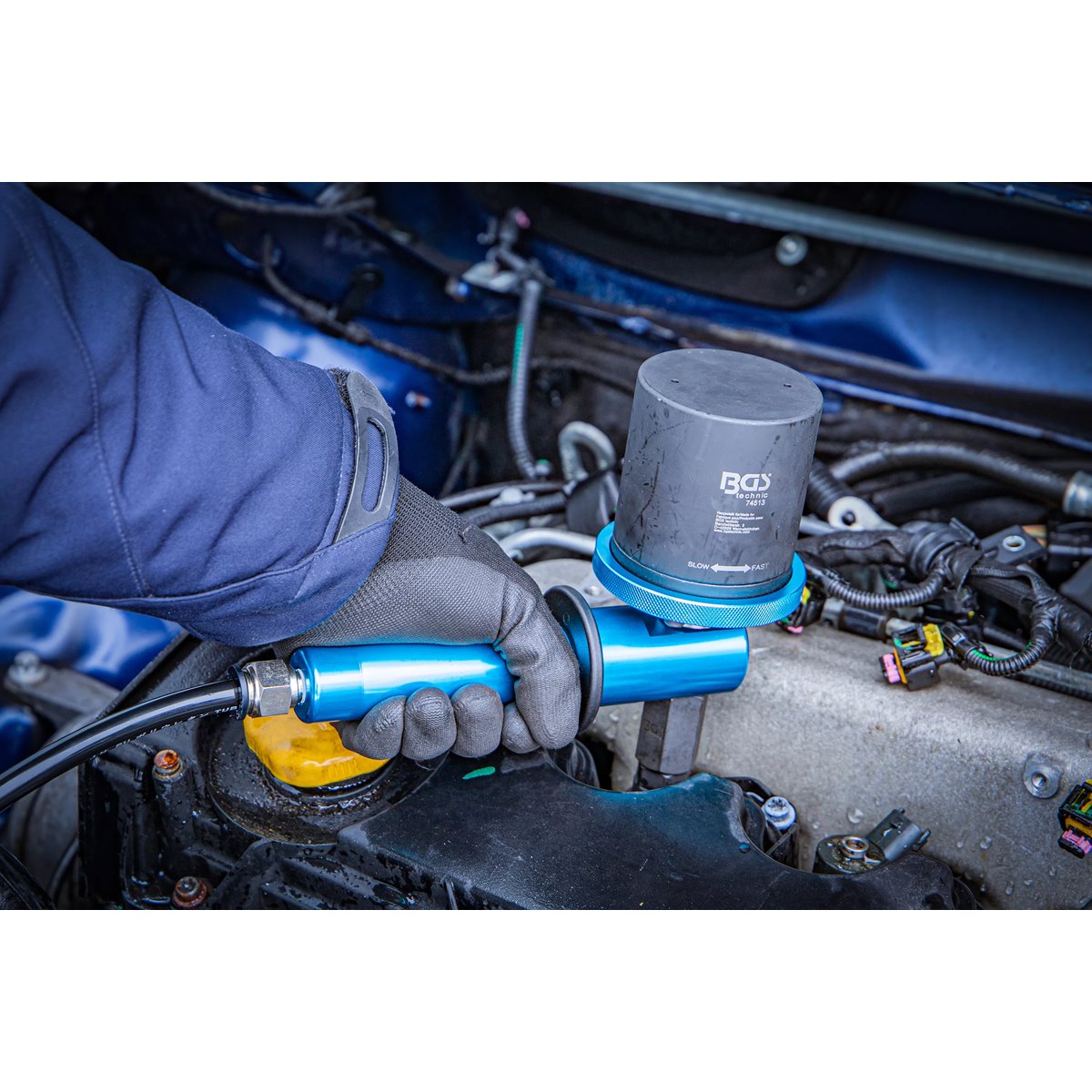

the diesel injectors are removed from the cylinder head by pneumatically generated impact effect
coking and rust deposits are broken up and the injector will released from sealing seat
the extractor is screwed in directly to the fixed injector by using the corresponding adapter
compact design
high impact effect
including a wide range of adapters, suitable for the most commonly used diesel injectors

piston stroke: 38 mmlifting speed: 300 / 900 per minuteconnecting hose: Ø 12 mmstriking force: 600 N

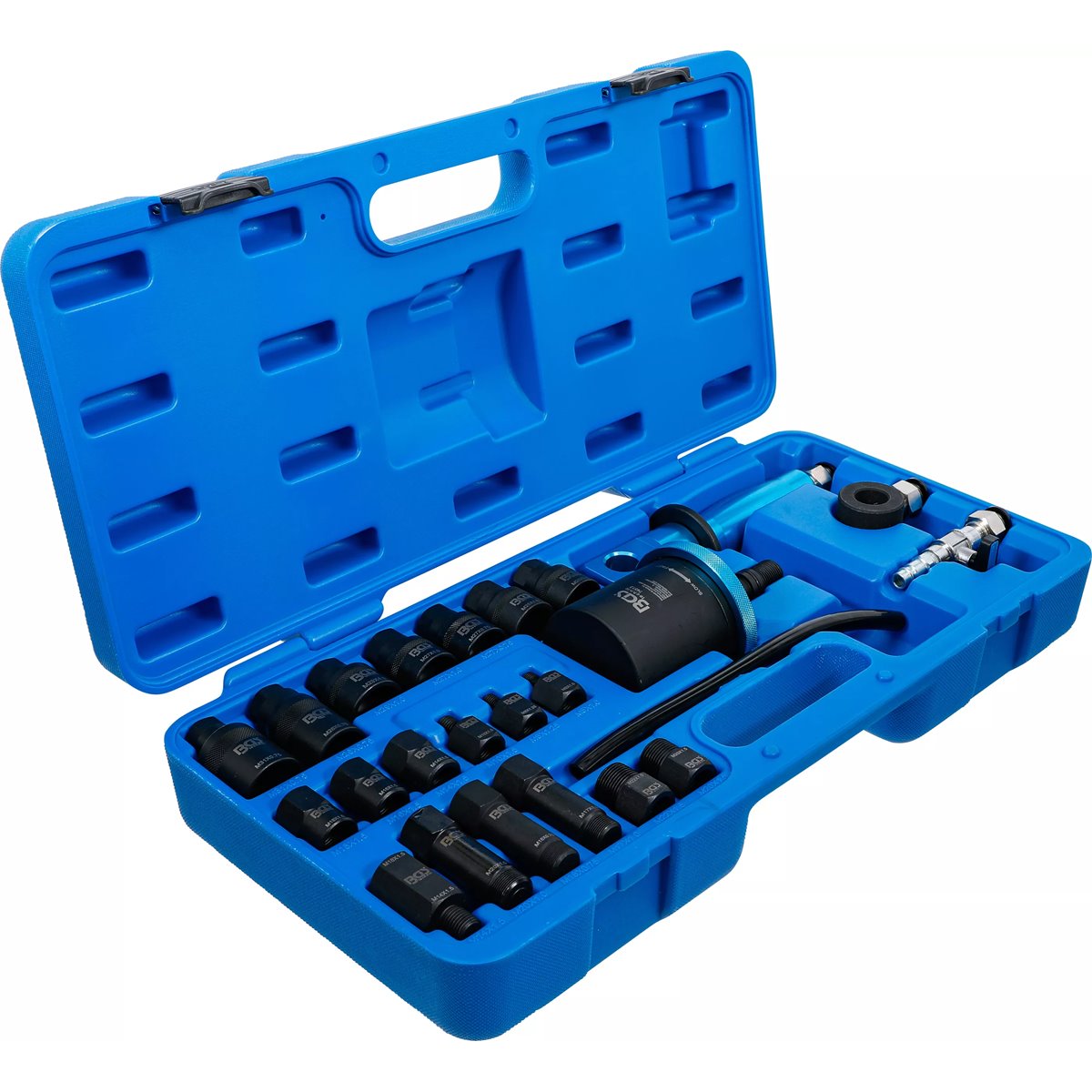

scope of delivery:

1 pneumatic injector extractor1 compressed air adapter with handle1 compressed air adapter without handle1 compressed air valve1 connecting hose1 internal thread adapter M31 x 0.751 internal thread adapter M26 x 0.751 internal thread adapter M29 x 11 internal thread adapter M27 x 11 internal thread adapter M27 x 0.751 internal thread adapter M25 x 11 internal thread adapter M25 x 0.51 internal thread adapter M18 x 1.51 internal thread adapter M16 x 1.51 internal thread adapter M14 x 1.51 external thread adapter M10 x 1.51 external thread adapter M8 x 1.251 external thread adapter M8 x 11 external thread adapter M14 x 1.51 external thread adapter M20 x 11 external thread adapter M18 x 0.751 external thread adapter M17 x 11 external thread adapter M22 x 1.51 external thread adapter M20 x 1.5

Technical features:

Gross weight: 6349 g
Spindle thread: M18 x 1,5
BGS item no: 74512
Weight (kg): 6,349
EAN: 4048769084790

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

BGS technic KG
Bandwirkerstraße 3
42929 Wermelskirchen
Germany
