BGS 74406 Coating Thickness Gauge, for Iron and No n-Iron Metals

€302.95

Stk

Product number: 1992632

Manufacturer no.: 74406

EAN: 4048769083076

Weight in kg: 0.605

Product information "BGS 74406 Coating Thickness Gauge, for Iron and No n-Iron Metals"

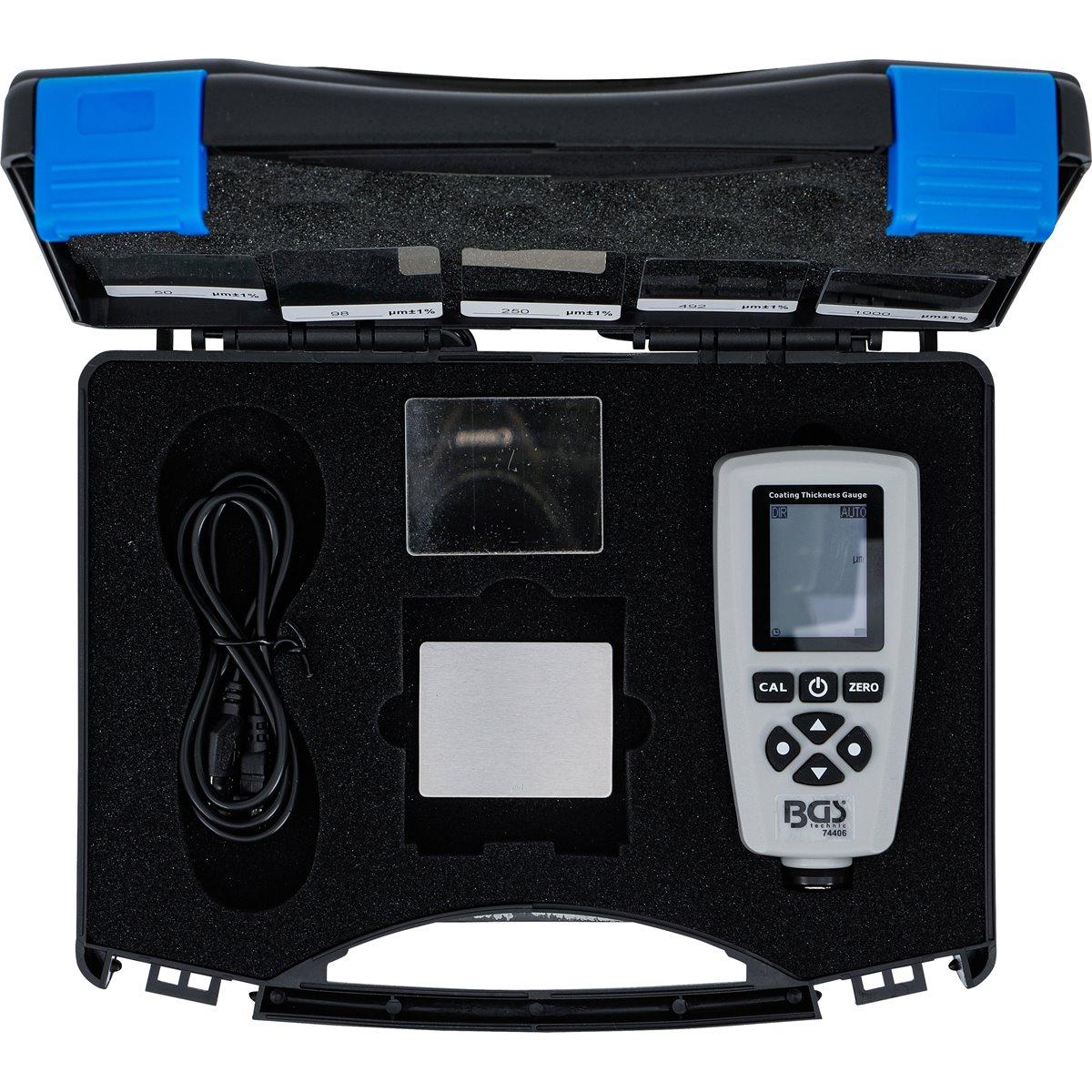

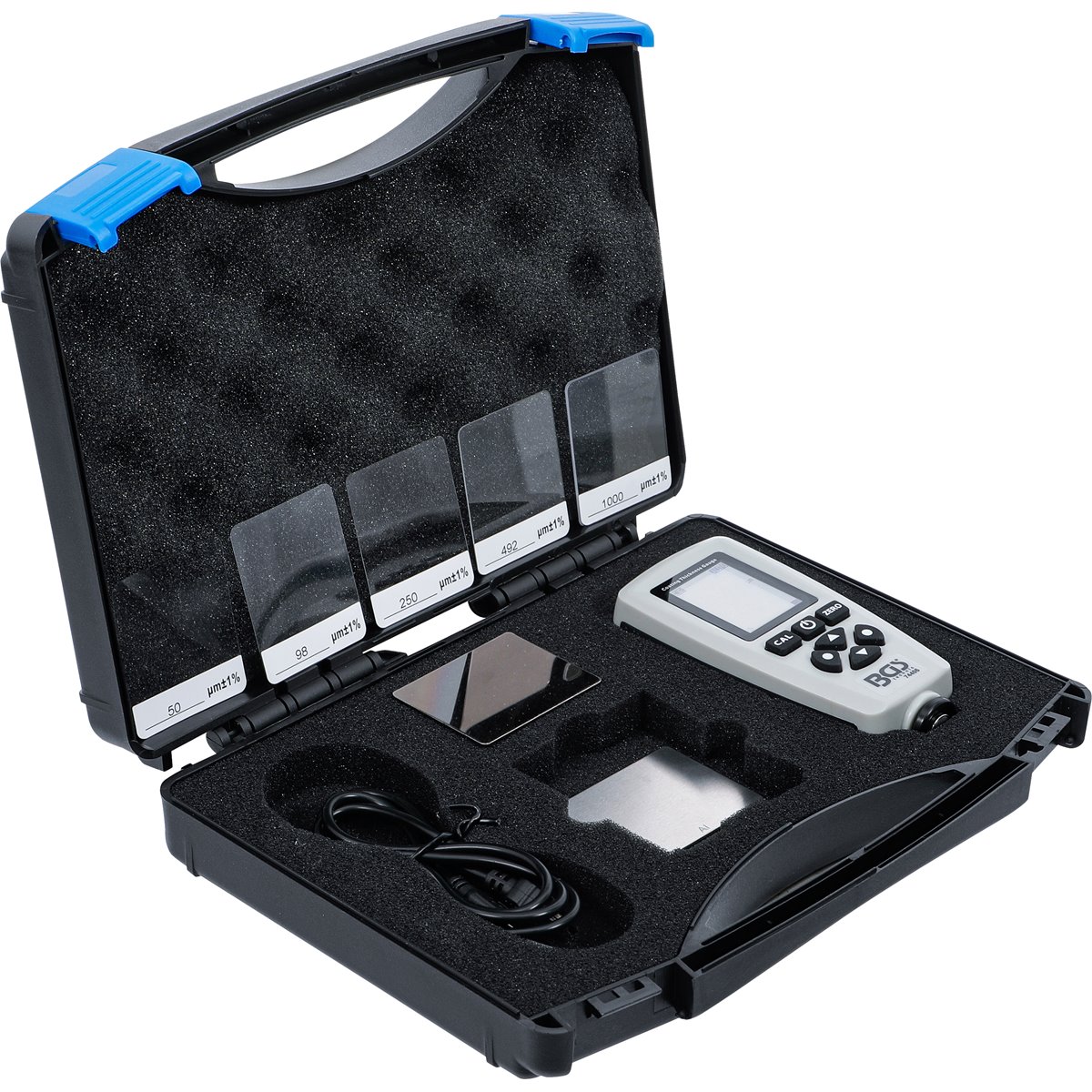

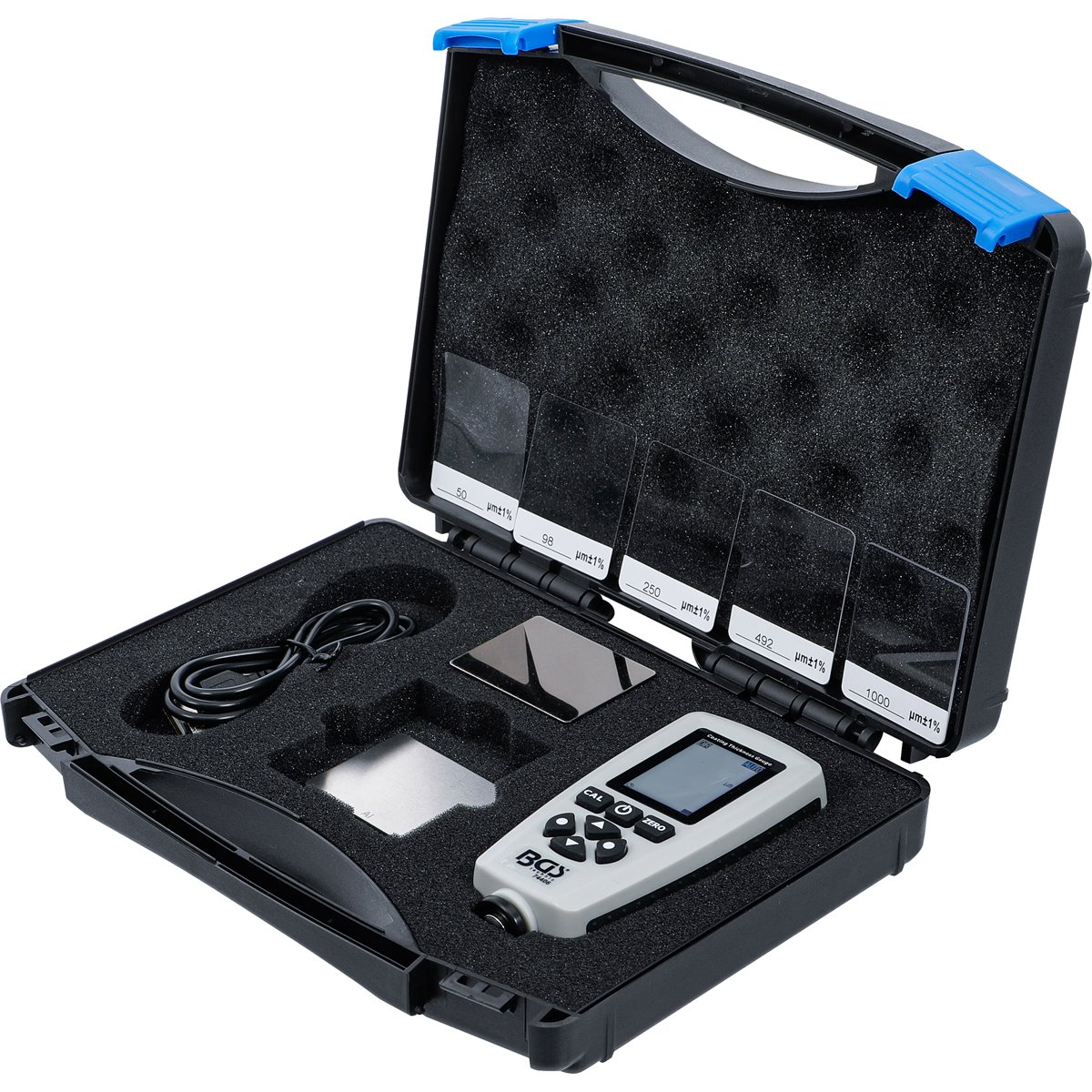

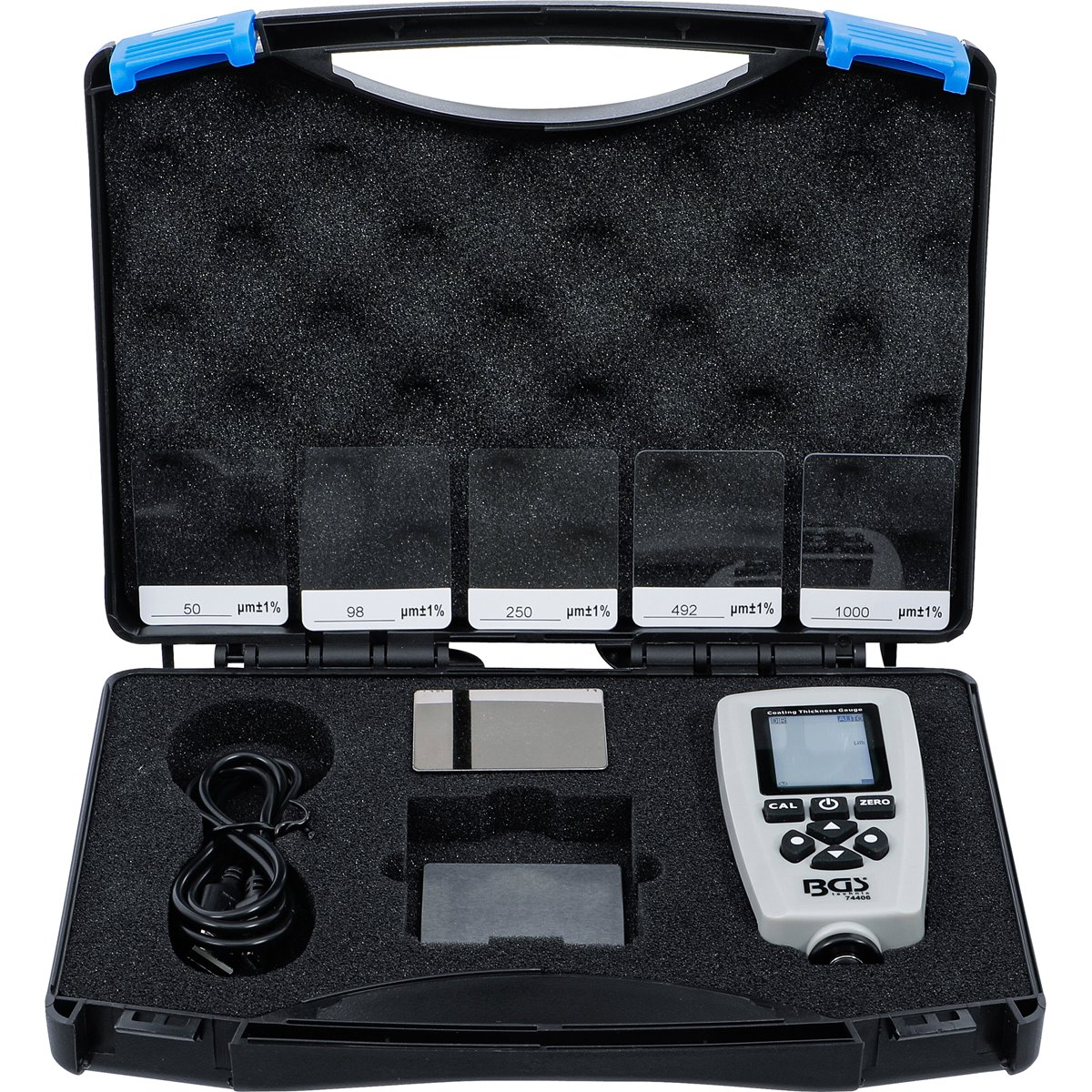

BGS 74406 Coating Thickness Gauge, for Iron and Non-Iron Metals

Features:

Coating Thickness Gauge, for Iron and Non-Iron Metals
for non-destructive measurements of the coating thickness
suitable for non-magnetic coatings such as paint, enamel, chrome on ferrous metals and insulating coatings such as paint, anodized on non-ferrous metals
LCD display with 128 x 128 dot matrix
easy-to-understand menu navigation
different measurement modes like single and continuous measurements
probe modes like induction and eddy current
group modes like direct (DIR), readings are lost on power off and general (GEN), readings are stored on power off
80 reading memory for each group
zero and multi-point calibration (up to 4 points) for each group
recall or delete individually stored readings and delete group readings
statistics display for mean, minimum, maximum and deviation
definable high or low limit alarm
automatic shutdown function
USB interface for data transfer
low battery and error indicator

accuracy (induction): +/- (2.5 % + 1 µm)accuracy (Eddy Current): +/- (2 % + 0.039 mils)resolution: 0 µm - 99.9 µm (0.1 µm) / 100 µm - 999 µm (1 µm) / >1000 µm (0.01 mm)minimum substrate thickness (induction): 0.2 mmminimum substrate thickness (eddy current): 0.05 mmminimum measuring surface: Ø 20 mmmaximum measurement rate: 2 readings per secondpower supply: 2x 1.5 V battery AAAoperating humidity: 20 - 90%units of measurement: µm, mm, milsdimensions: 110 x 53 x 24 mm

Technical features:

Operating temperature: 0 - 40 °C
Gross weight: 605 g
Storage temperature: - 20 - 70 °C
Measuring range: 0 - 2000 µm
BGS item no: 74406
Weight (kg): 0,605
EAN: 4048769083076
