Gedore 8801-01 Torque wrench Type 8801 3/4" 150-70 0Nm
Product number:
1920514
Manufacturer no.:
3022854
EAN:
4010886950227
Weight in kg:
10

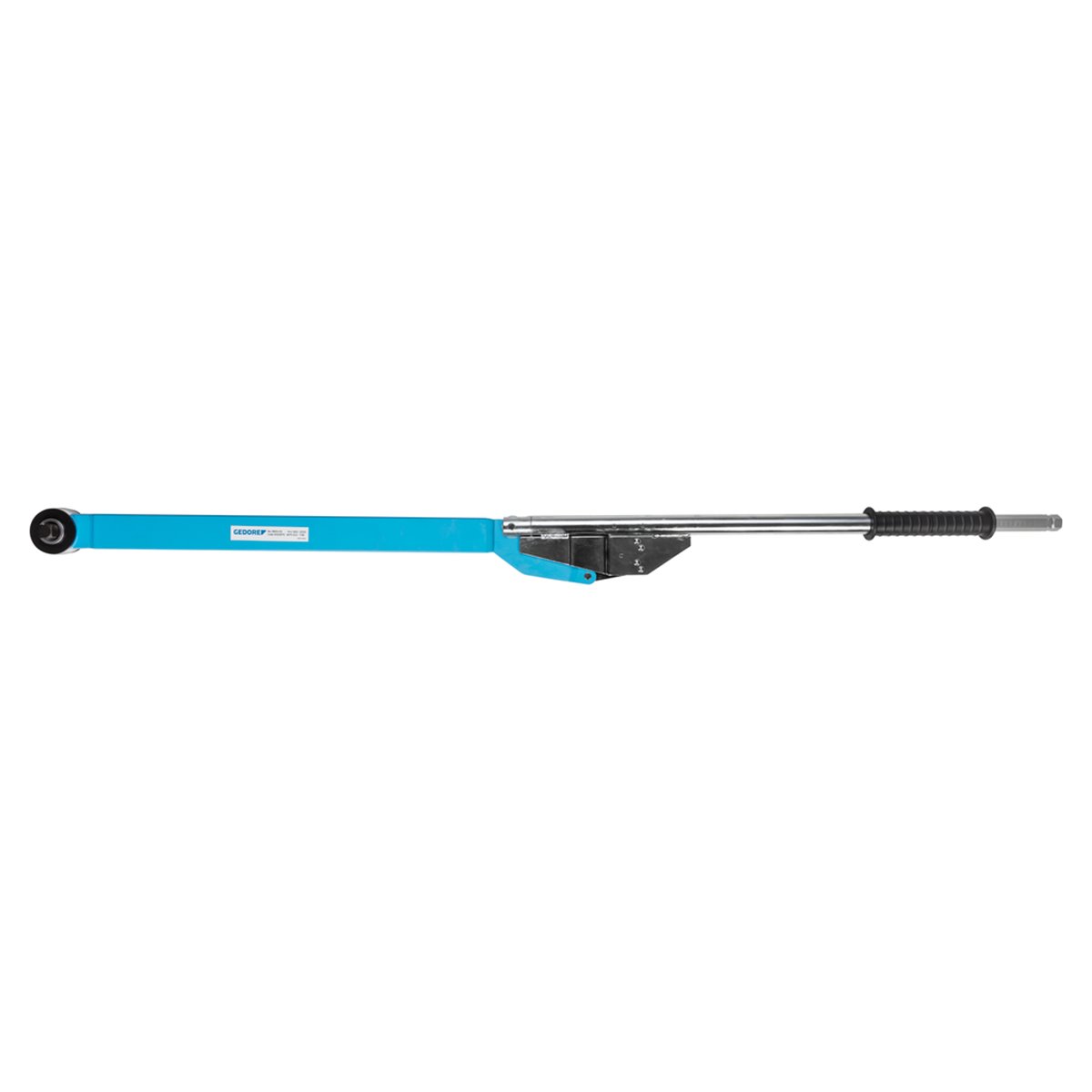

Product information "Gedore 8801-01 Torque wrench Type 8801 3/4" 150-70 0Nm"
Gedore 8801-01 Torque wrench TYP 88 KNICKER 150-700 Nm
Gedore 8801-01 Torque wrench TYP 88 KNICKER 150-700 Nm
Features:
- Use: Controlled screw tightening in the range of 150 - 1000 Nm
- Industry and vehicle sector (lorries
- industrial vehicles)
- Features: Adjustable torque wrench - with scale

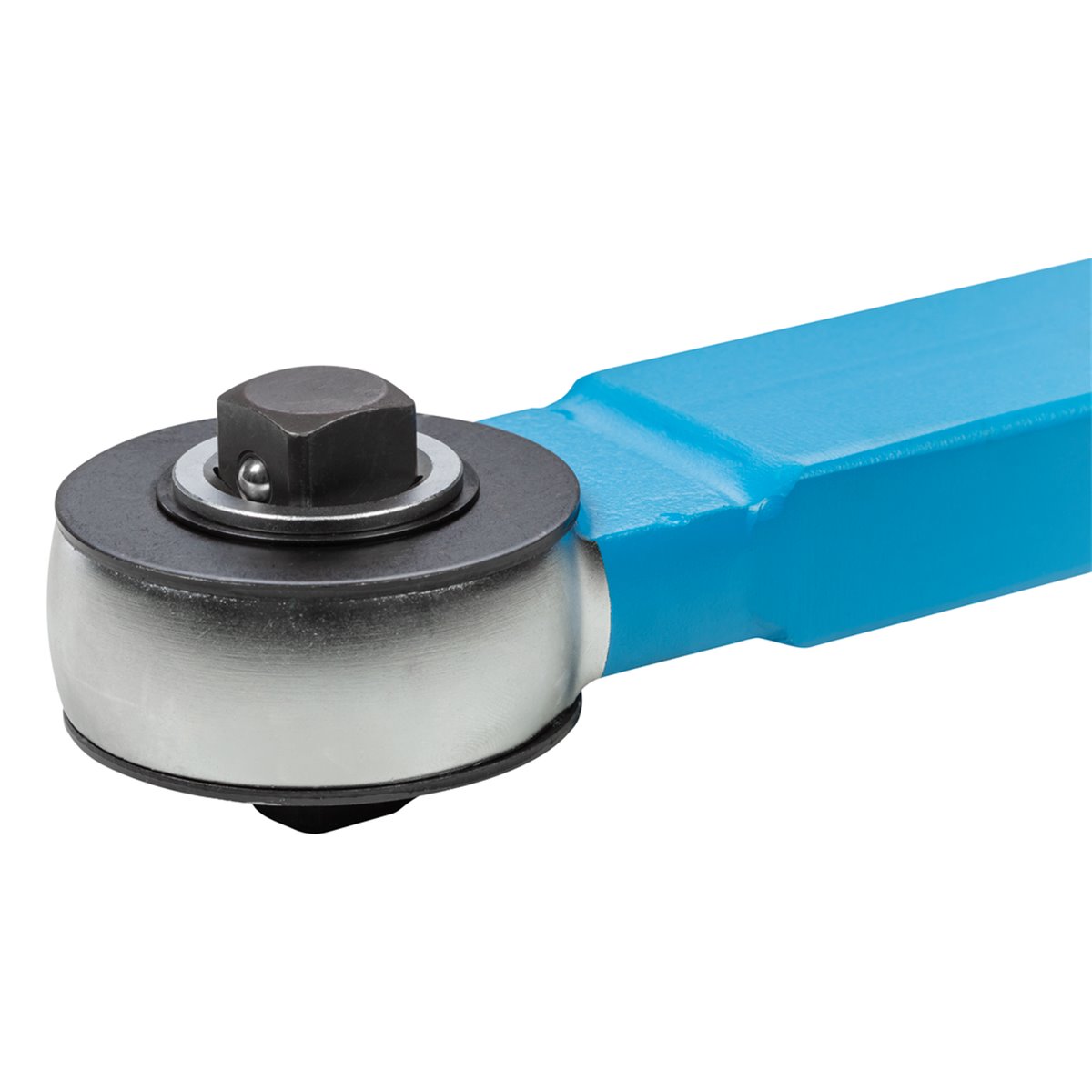

- 3/4 square drive with integrated ratchet function
- Suitable for bi-directional tightening on account of push-through square drive
- Working accuracy: +/- 4 % tolerance of set torque
- Acc. to DIN EN ISO 6789
- traceable to national standards
- Breaking mechanism as an actuation signal which can be seen and felt and makes over-tightening unlikely
- Dual scale Nm and Ibf·ft
- Scope of delivery: Torque wrench Typ 88 KNICKER
- Test certificate acc. to DIN EN ISO 6789

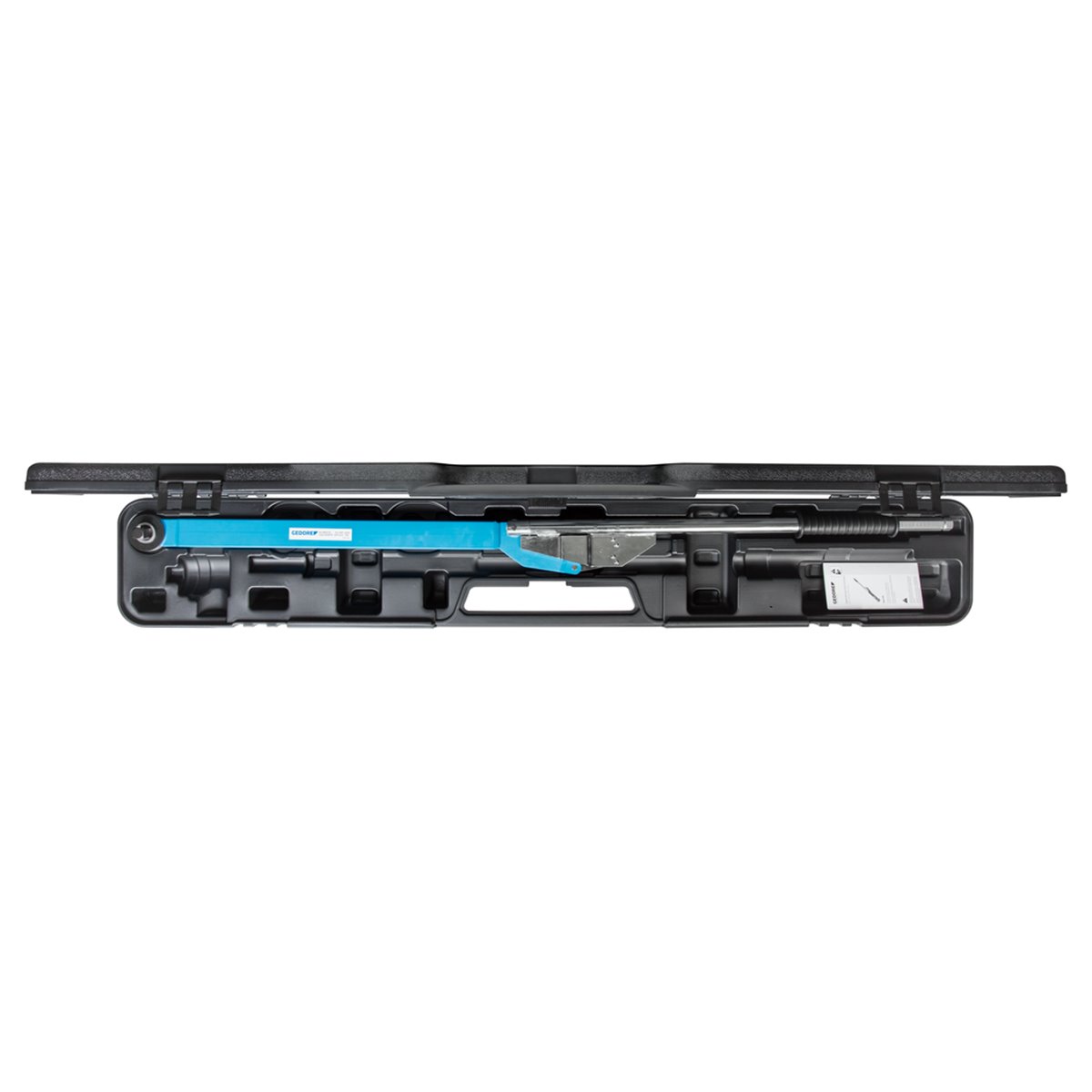

- Delivery in sturdy plastic case"
Technical features:
- Number of teeth: 36
- Precision +/-: +/- 4 %
- Total length [mm]: 1.250 mm
- Return angle: 10 °
- Net weight [kg]: 10 kg
- Graduation [lbf·ft]: 10 lbf·ft
Gedore Code-Number: 3022854
EAN: 4010886950227
