BGS 7187 Torque Wrench, 25 mm (1"), 140 - 980 Nm
Product number:
1991094
Manufacturer no.:
7187
EAN:
4048769083335
Weight in kg:
10.782
Product information "BGS 7187 Torque Wrench, 25 mm (1"), 140 - 980 Nm "

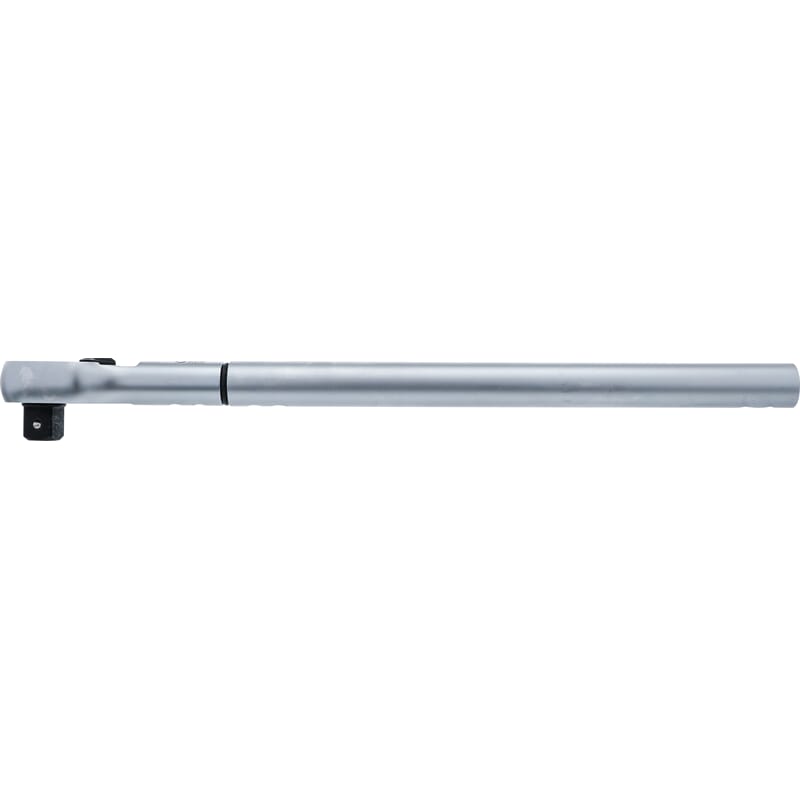

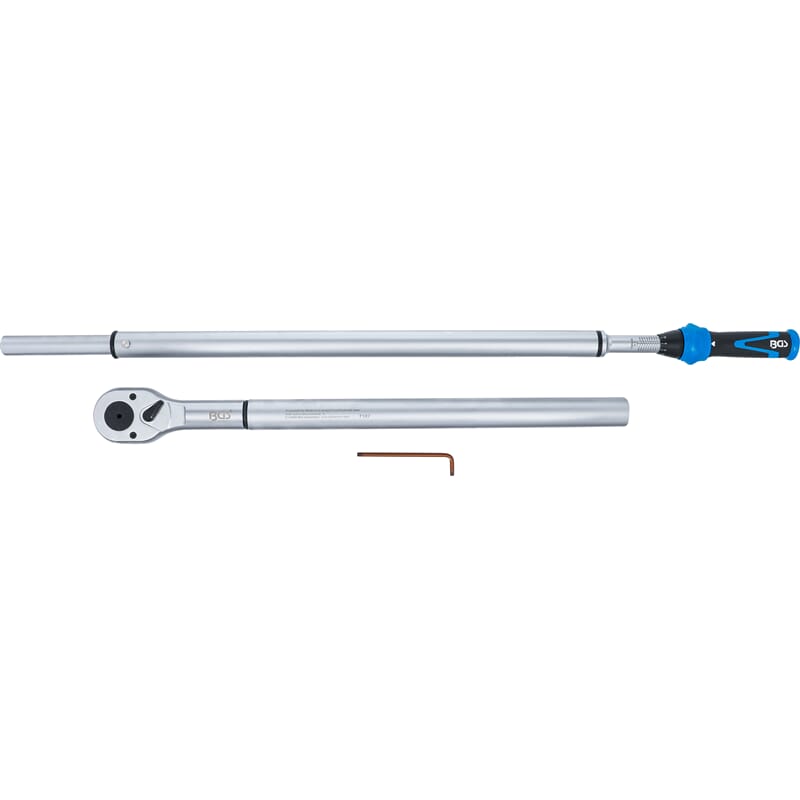

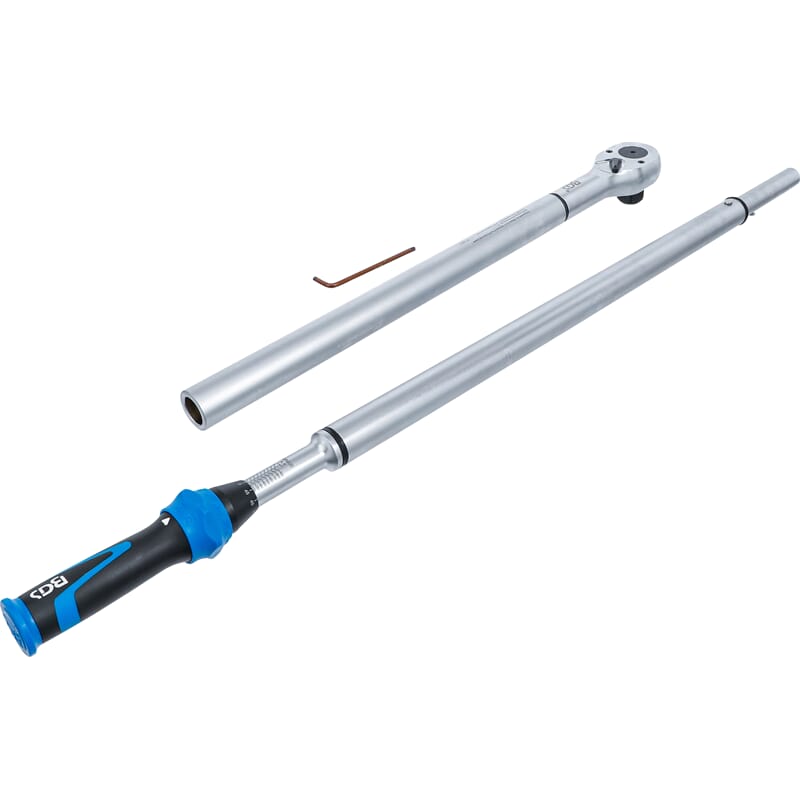

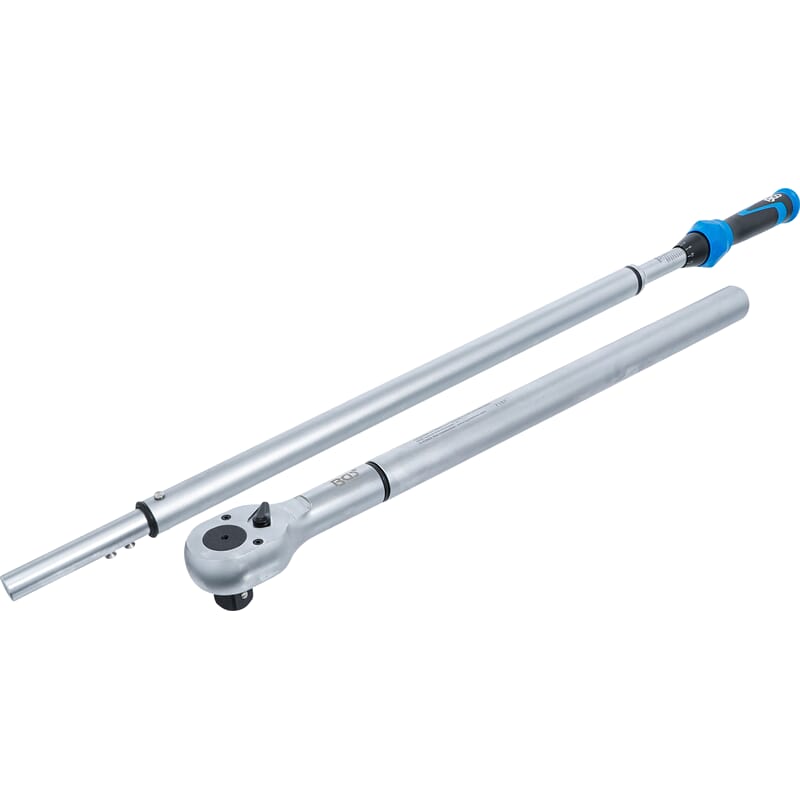

BGS 7187 Torque Wrench, 25 mm (1"), 140 - 980 Nm
Features:
- Torque Wrench, 25 mm (1"), 140 - 980 Nm
- suitable for tightening to torque for screwed connections with right-hand thread
- integrated reversible ratchet with closed, narrow head shape
- ratchet mechanism, reversible
- robust coarse tooth, 24 teeth
- easy locking and unlocking at the handle
- lasered line scale with fine adjustment for the respective setting value
- optimally designed plastic handle for easy setting of the desired torque value, as well as a secure grip of the tool handle
- clearly audible release

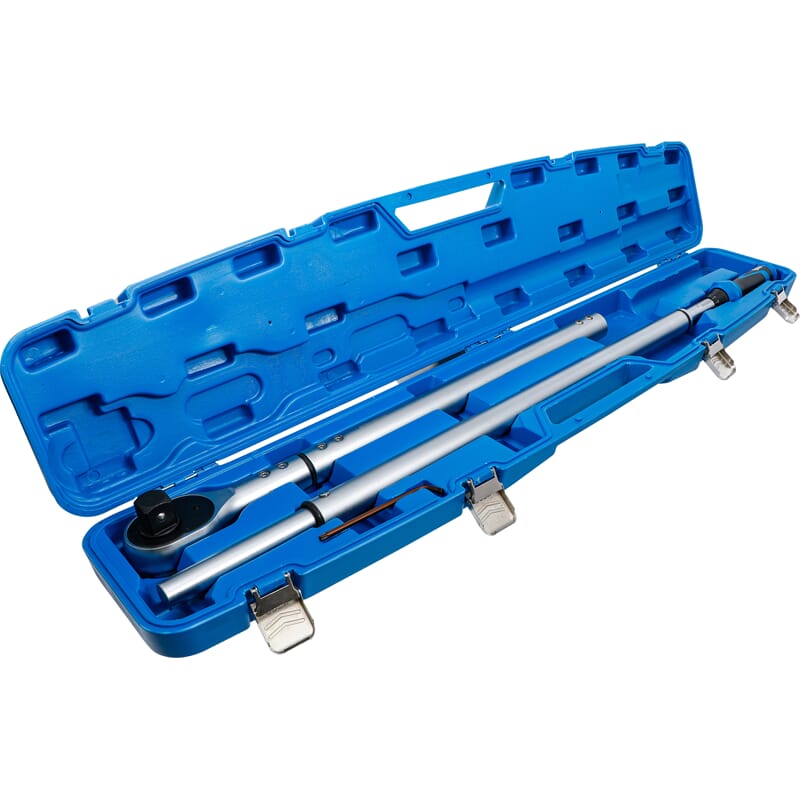

- the tool is protected in the plastic compartment and stowed in the recess in a non-slip manner

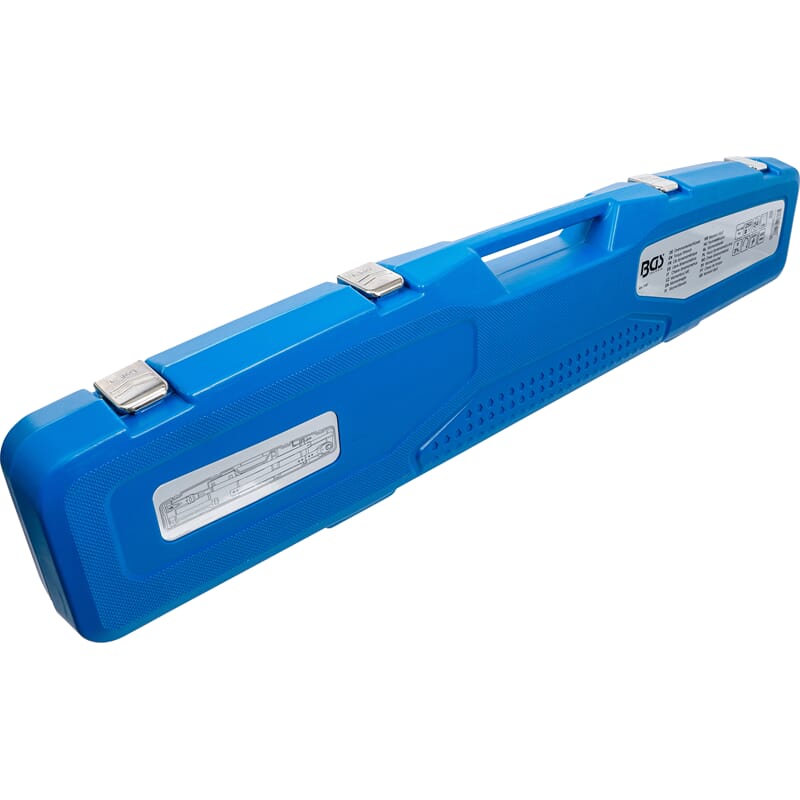

- safe and tidy storage in blow mold case
- incl. calibration certificate
Technical features:
- Output profile: External square
- Drive profile size, inch: 1 "
- Drive profile size, metric: 25 mm
- No. of teeth in ratchet head: 24
- Release accuracy: +/- 3 %
- Gross weight: 10782 g
- Max. torque: 1000 Nm
- Min. torque: 150 Nm
- Length: 1500 mm
- BGS item no: 7187
- Weight (kg): 10,782
- EAN: 4048769083335
