BGS 3324 Automatic Cable Reel, 20 m
€158.95
/ 7
Delivery time 7 working days
Product number:
1987847
Manufacturer no.:
3324
EAN:
4026947033242
Weight in kg:
7.322
Product information "BGS 3324 Automatic Cable Reel, 20 m "

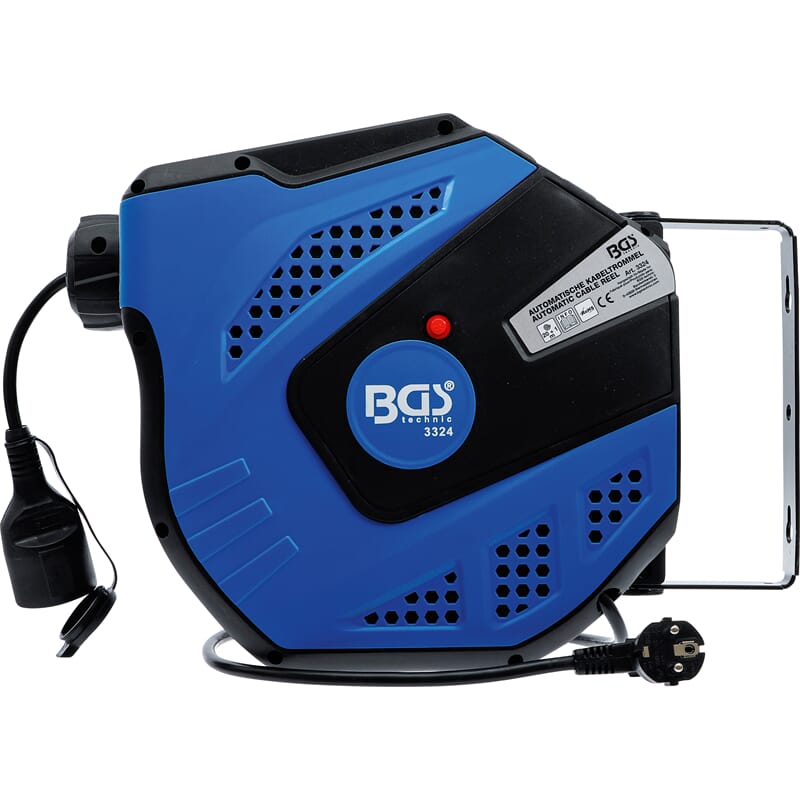

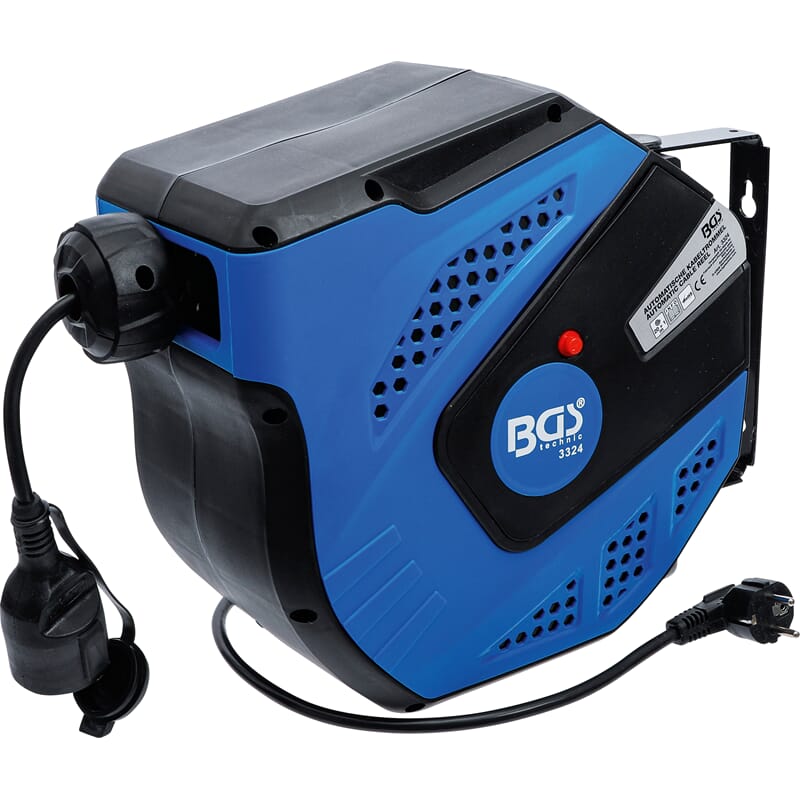

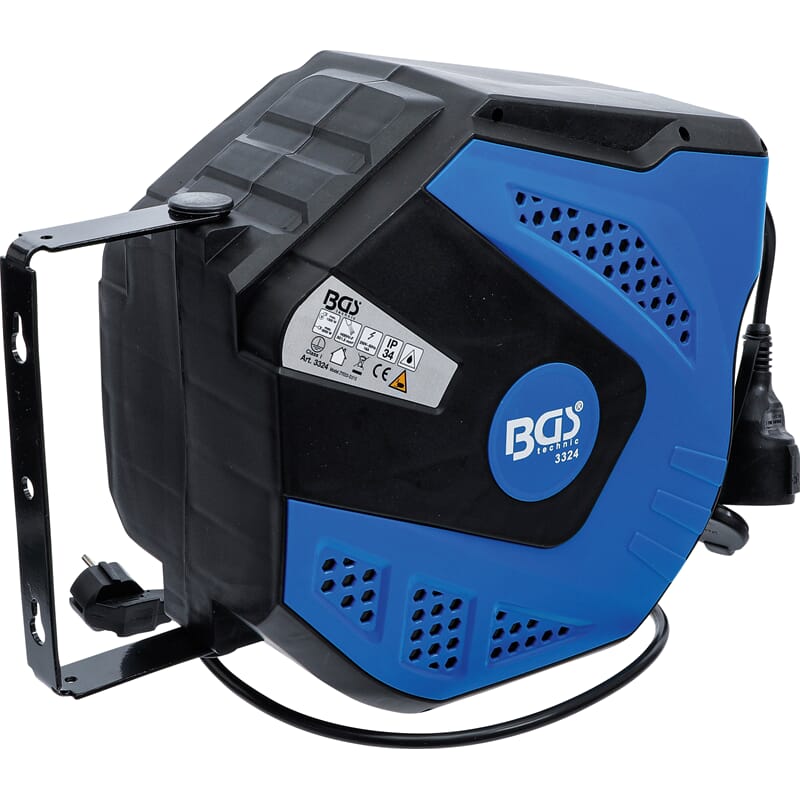

BGS 3324 Automatic Cable Reel, 20 m
Features:
- Automatic Cable Reel, 20 m
- with automatic reel stop, can be unlocked by briefly pulling the cable
- protected against foreign material and splash-proof
- automatic cable retraction
- with bracket for wall mounting
- suitable for use in dry rooms
- ampacity (rolled up): max. 16 amps
- ampacity (unrolled): max. 16 amps
- power (rolled up): max. 1000 watts
- power (unrolled): max. 3000 watts
- number of sockets: 1
- protection class: 1
- supply cable: 1 m
Technical features:
- Cable length: 20 m
- Depth: 455 mm
- Rated voltage: 230 V
- Width: 184 mm
- Cable diameter: 3x 1,5 mm²
- Height: 316 mm
- Weight: 6,7 kg
- Protection class: IP34
- Storage temperature: -30 - 50 °C
- Gross weight: 7322 g
- BGS item no: 3324
- Weight (kg): 7,322
- EAN: 4026947033242
