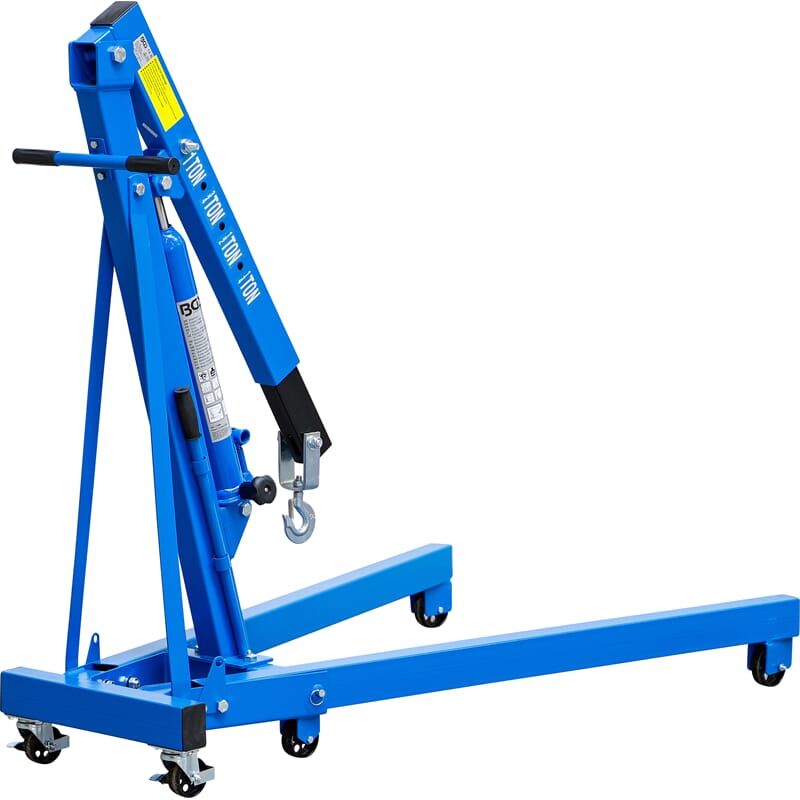

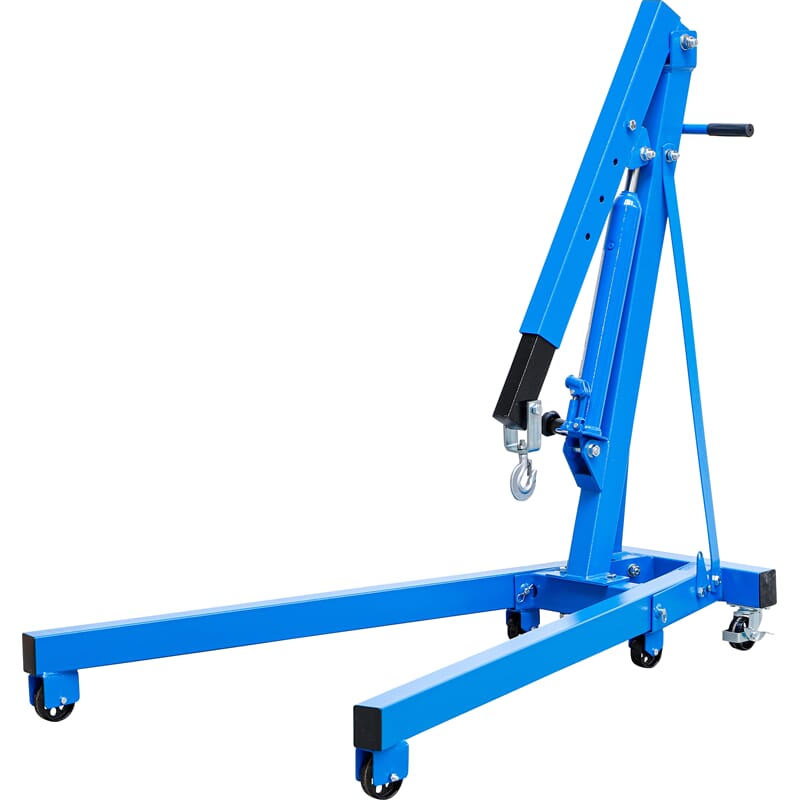

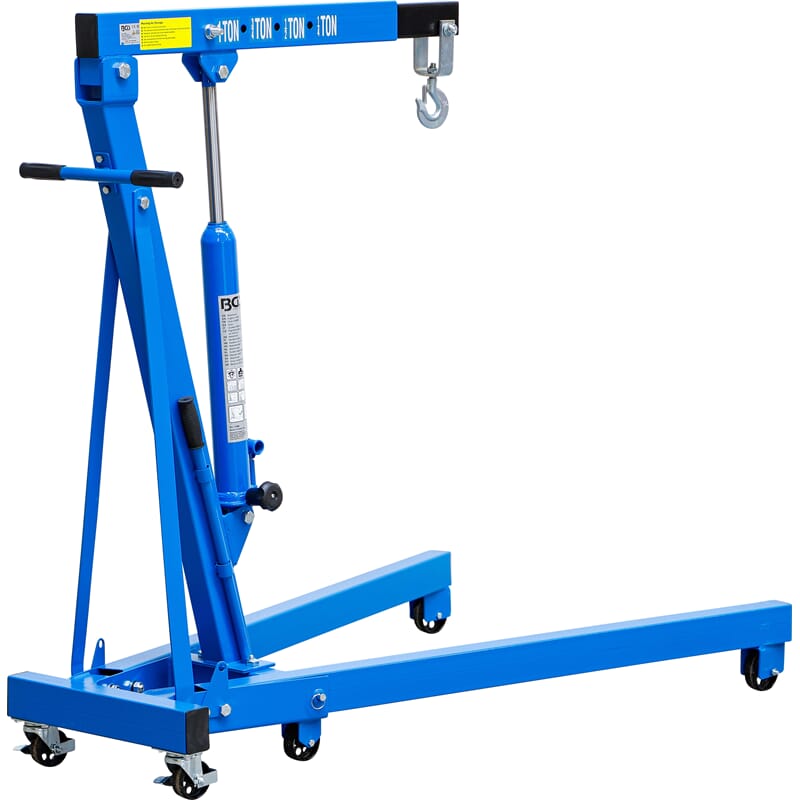

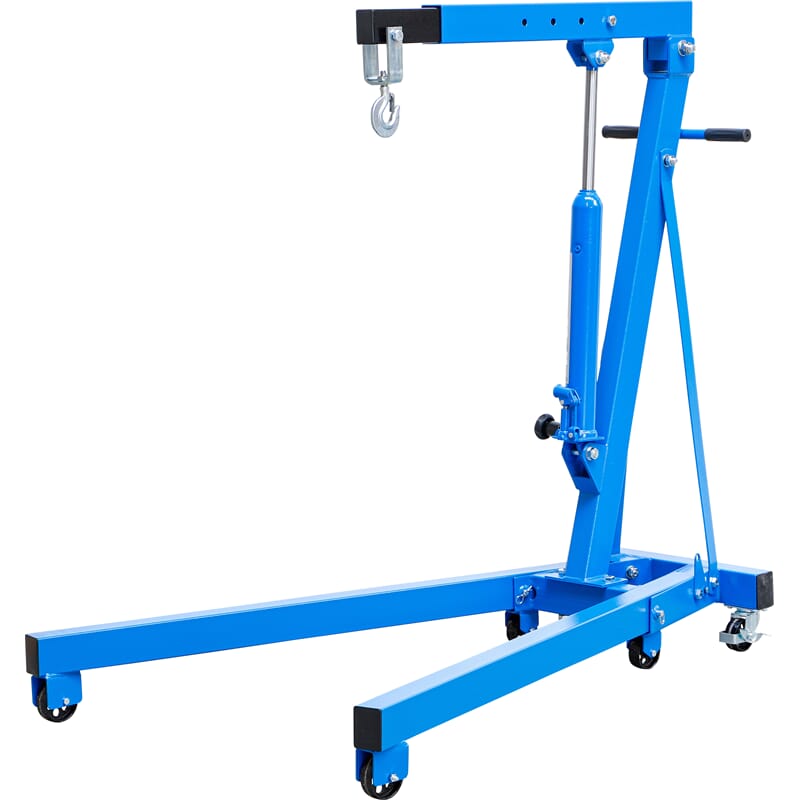

BGS 11998 Engine Crane, 1000 kg

€394.95

Delivery time 7 working days

Stk

Product number: 1987817

Manufacturer no.: 11998

EAN: 4048769079291

Weight in kg: 68.6

Product information "BGS 11998 Engine Crane, 1000 kg "

BGS 11998 Engine Crane, 1000 kg

Features:

Engine Crane, 1000 kg
heavy duty crane for daily garage use
suitable as a engine crane, for aligning components and machines or for lifting and holding loads in everyday workshop routine
foldable for easy transport and space-saving storage
with hand lever pump
easy lifting and lowering by hydraulic cylinder
easy to move in connection with 4 castors and 2 heavy duty swivel castors
load carrier on the boom with stable chain and safety load hook

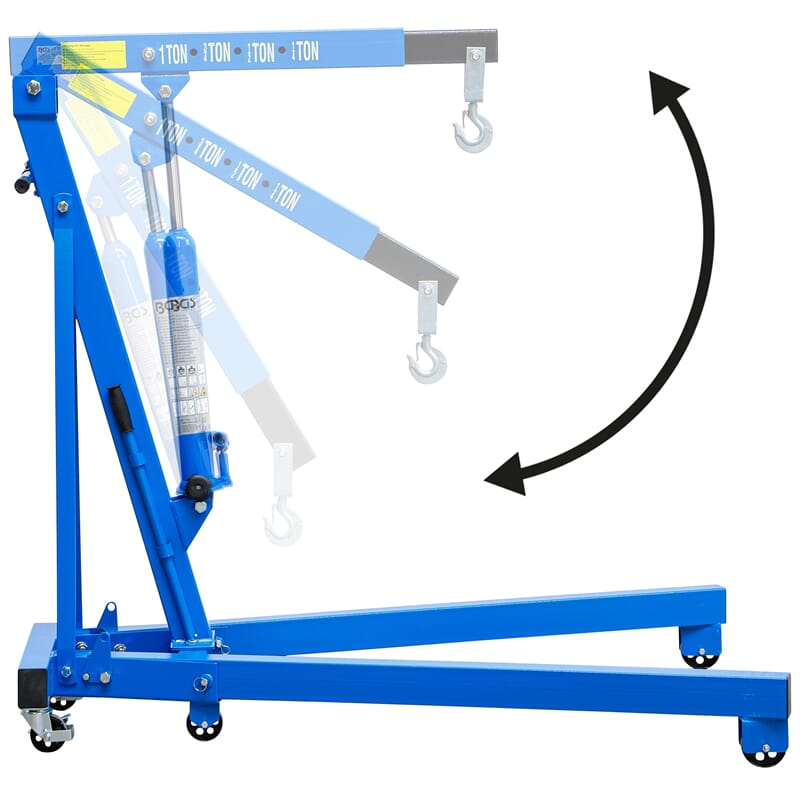

telescopic crane boom with 4-way adjustment options

adjustable lifting arm length in following 4 positions:crane arm position 1: 900 mm, max. load 1000 kgcrane arm position 2: 990 mm, max. load 750 kgcrane arm position 3: 1080 mm, max. load 500 kgcrane arm position 4: 1170 mm, max. load 250 kgrated load: max. 1000 kglifting range: 160 - 2040 mmcrane arm length: max. 1170 mmstroke (max. rated load): 1860 mmheight (max. rated load): 415 mmopening width of hook: 18 mmfront wheel dimensions: Ø 89 x 30 mmmiddle wheel dimensions: Ø 76 x 30 mmrear wheel dimensions: Ø 76 x 30 mmover all dimension (lowest position): 1515 x 1050 x 1445 mm

Technical features:

Operating temperature: 4 - 41 °C
Gross weight: 68600 g
BGS item no: 11998
Weight (kg): 68,6
EAN: 4048769079291
